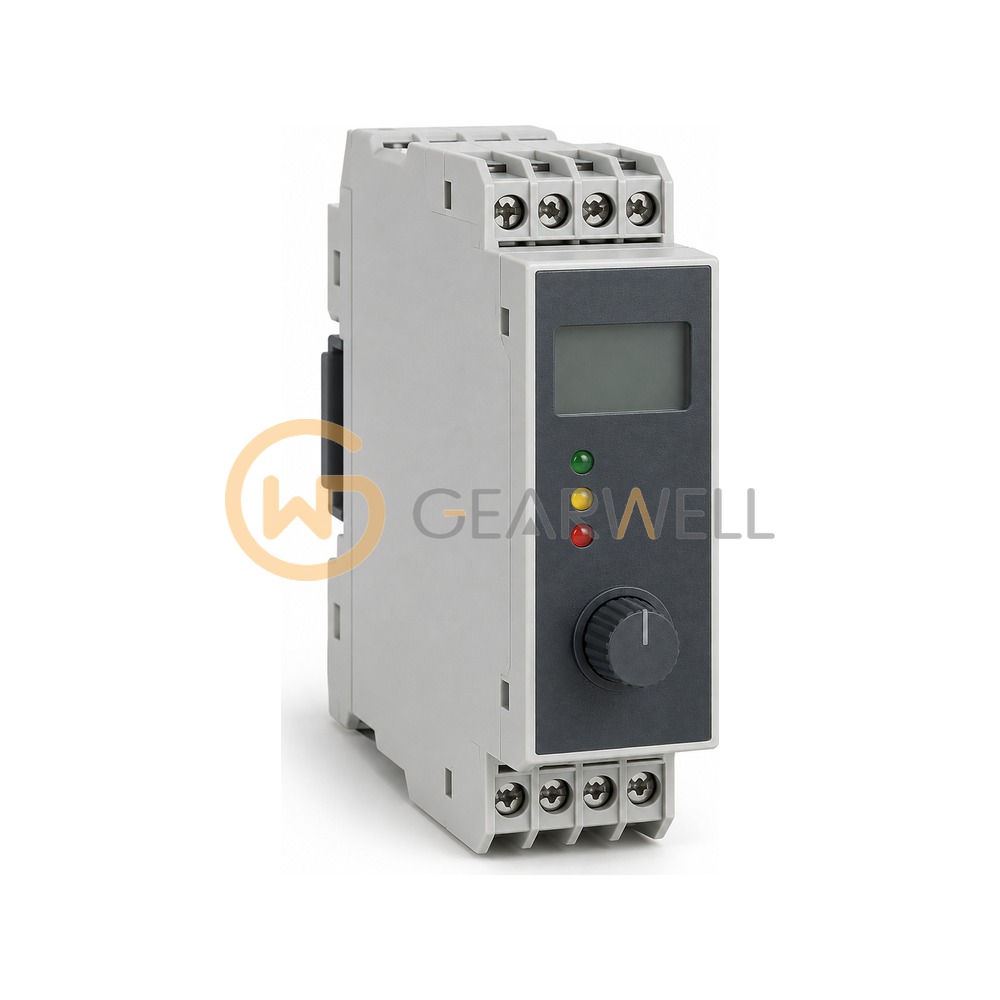

IFM DD0001 Evaluation unit for speed monitoring
- Brand
- IFM
- Model
- DD0001
- GEARWELL SKU
- GWP-000014317
- Category
- Relays & Controllers
Key specifications
- Housing
- rectangular
- Dimensions
- 75 x 55 x 110 mm
- Application
- universal evaluation of pulse sequences with regard to overspeed and underspeed; Rotational speed monitoring
- Setting range
- 5...5000 Imp/min
- Contact rating
- 8 A / 1250 VA / 250 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM DD0001 Evaluation unit for speed monitoring |
|---|---|
| Brand | IFM |
| Model | DD0001 |
| Category | Relays & Controllers |
| Housing | rectangular |
| Dimensions | 75 x 55 x 110 mm |
| Application | universal evaluation of pulse sequences with regard to overspeed and underspeed; Rotational speed monitoring |
| Setting range | 5...5000 Imp/min |
| Contact rating | 8 A / 1250 VA / 250 V AC |
| Nominal voltage AC | < 230 V |
| Nominal voltage DC | 24 V |
| Number of relay outputs | 1 |
