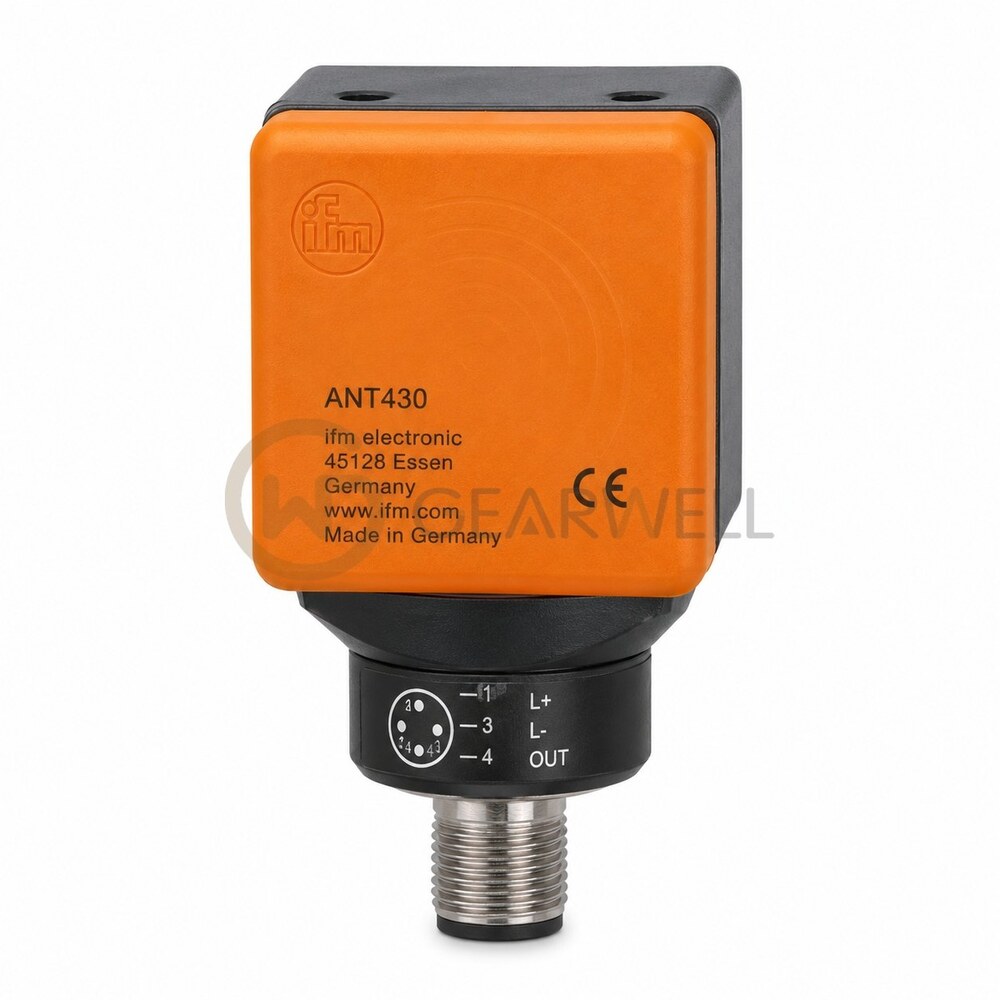

IFM ANT430 RFID Read/Write Head HF
- Brand
- IFM
- Model
- ANT430
- GEARWELL SKU
- GWP-000001706
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- M30 x 1.5 / L = 50 mm
- Protection
- IP 67; IP 69K
- Product type
- RFID read/write head HF
- Operating voltage
- 19.2...28.8 V DC; (Supply only via the DTE10x evaluation unit (to EN 60950-1))
- Ambient temperature
- -20...60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm ANT430 (DTRHF IBRWIDUS03) is an HF RFID read/write head working at 13.56 MHz to ISO 15693, for detecting objects on transport equipment; it is supplied and read through a DTE10x evaluation unit. ifm gives a read/write distance of up to 30 mm to a 30 mm coin tag (I-CODE SLI), and a minimum spacing of 100 mm front and 50 mm side between heads. It has an M30 x 1.5 stainless steel housing 50 mm long with a PPS cover, for flush mounting, connects through an M12 connector (A-coded, 3 contacts) and is rated IP67 and IP69K for -20…60 °C ambient. Two M30 lock nuts are supplied.
Technical reference
| Product name | IFM ANT430 RFID Read/Write Head HF |
|---|---|
| Brand | IFM |
| Model | ANT430 |
| Category | Industrial Automation Parts |
| Dimensions | M30 x 1.5 / L = 50 mm |
| Protection | IP 67; IP 69K |
| Product type | RFID read/write head HF |
| Operating voltage | 19.2...28.8 V DC; (Supply only via the DTE10x evaluation unit (to EN 60950-1)) |
| Ambient temperature | -20...60 °C |
| Current consumption | < 50 mA |
| Operating frequency | 13,56 MHz |
| Communication interface | DATA / DTE10x |
