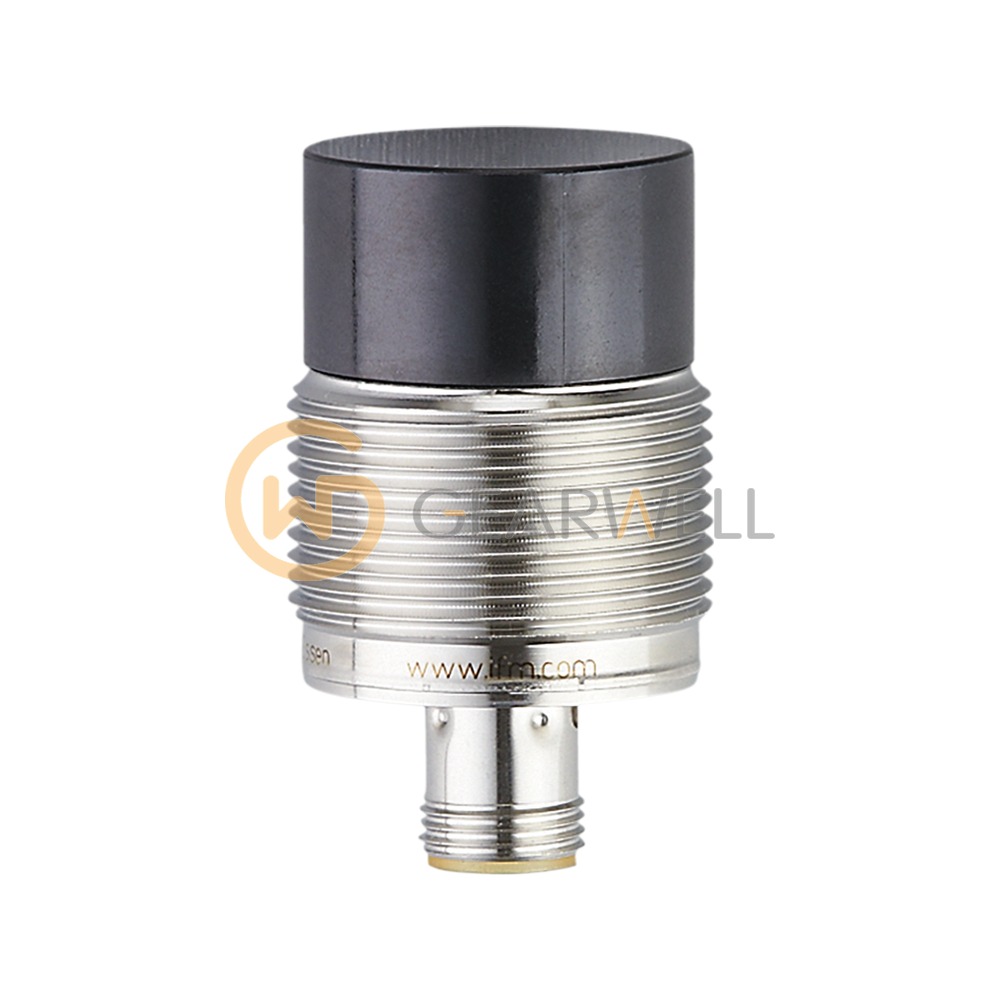

IFM ANT431 RFID HF read/write heads RFID read/write head HF
- Brand
- IFM
- Model
- ANT431
- GEARWELL SKU
- GWP-000012177
- Category
- Industrial Communication
Key specifications
- Housing
- Threaded type
- Dimensions
- M30 x 1.5 / L = 50 mm
- Protection
- IP 67; IP 69K
- RFID standard
- ISO 15693
- Operating voltage
- 19.2...28.8 DC; (Supply only via the DTE10x evaluation unit (to EN 60950-1)) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm ANT431 (DTRHF INRWIDUS03) is an HF RFID read/write head working at 13.56 MHz to ISO 15693, for detecting objects on transport equipment; it is supplied and read through a DTE10x evaluation unit. ifm gives a read/write distance of up to 45 mm to a 30 mm coin tag (I-CODE SLI), and a minimum spacing of 160 mm front and 120 mm side between heads. It has an M30 x 1.5 stainless steel housing 50 mm long with a PPS cover, for non-flush mounting, connects through an M12 connector (A-coded, 3 contacts) and is rated IP67 and IP69K for -20…60 °C ambient. Two M30 lock nuts are supplied.
Technical reference
| Product name | IFM ANT431 RFID HF read/write heads RFID read/write head HF |
|---|---|
| Brand | IFM |
| Model | ANT431 |
| Category | Industrial Communication |
| Housing | Threaded type |
| Dimensions | M30 x 1.5 / L = 50 mm |
| Protection | IP 67; IP 69K |
| RFID standard | ISO 15693 |
| Operating voltage | 19.2...28.8 DC; (Supply only via the DTE10x evaluation unit (to EN 60950-1)) V |
| Ambient temperature | -20...60 °C |
| Operating frequency | 13,56 MHz |
| Communication interface | DATA / DTE10x |
