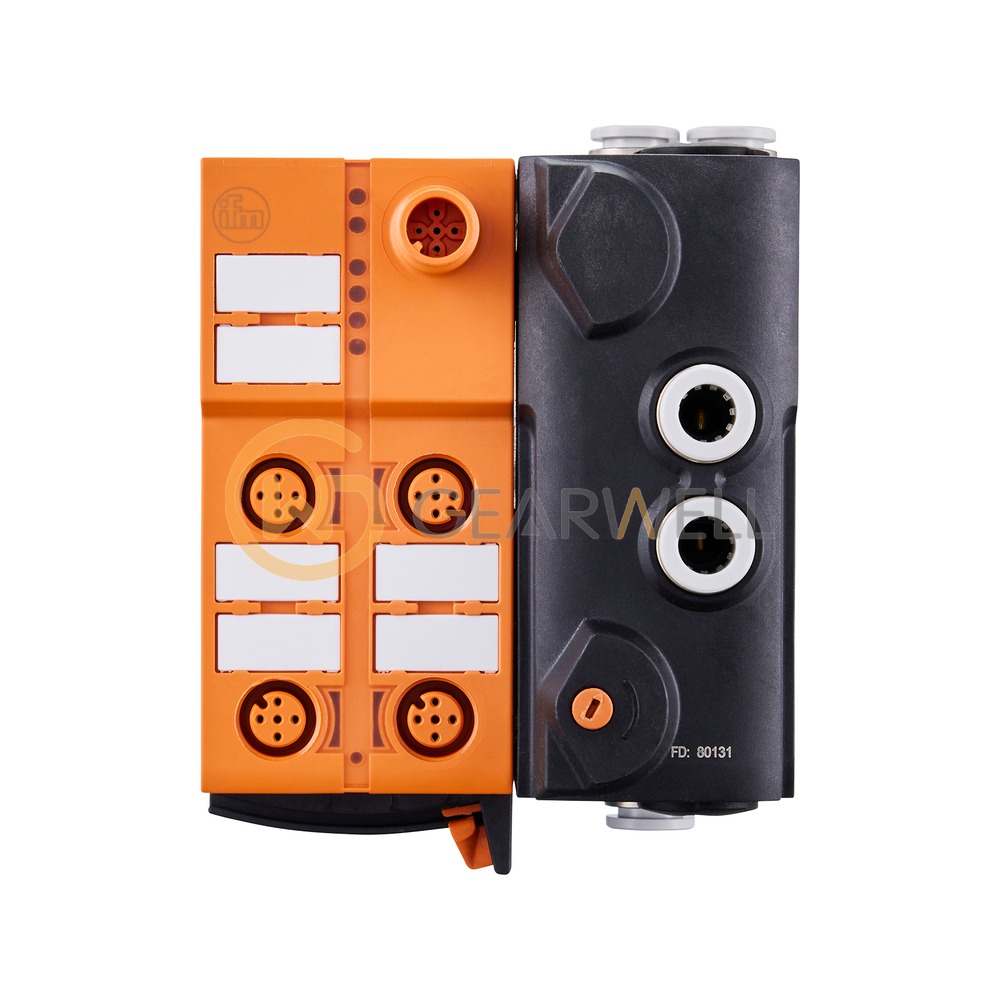

IFM AL5246 IO-Link AirBox with Quick Mounting Technology
- Brand
- IFM
- Model
- AL5246
- GEARWELL SKU
- GWP-000008637
- Category
- PLCs & I/O
Key specifications
- Housing
- rectangular
- Dimensions
- 109 x 85 x 52 mm
- Protection
- IP 65; IP 67
- Operating voltage
- 18...30 DC (to SELV/PELV) V
- Ambient temperature
- -10...55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL5246 (IOL AirBox 1x5/2 mono. 4x2DI) is an IO-Link AirBox: an IO-Link device that combines 8 digital inputs (PNP) with a pneumatic valve. The valve is a 1 x 5/2-way slide valve (free from overlapping) for compressed air, with an operating pressure range of 3…8 bar (43.5…116 psi), an air flow of 500 l/min at 6/5 bar and 8 mm tube fittings. It connects to a class A IO-Link master port and works to IO-Link revision 1.1 (COM2); the minimum process cycle time is 2.7 ms. It runs on 18…30 V DC. The housing measures 109 x 85 x 52 mm and is made of PA 6.6, for DIN rail mounting (TH35, EN 60715). It has four M12 connectors (A-coded, 5 contacts). It is rated IP65 and IP67, for -10…55 °C ambient.
Technical reference
| Product name | IFM AL5246 IO-Link AirBox with Quick Mounting Technology |
|---|---|
| Brand | IFM |
| Model | AL5246 |
| Category | PLCs & I/O |
| Housing | rectangular |
| Dimensions | 109 x 85 x 52 mm |
| Protection | IP 65; IP 67 |
| Operating voltage | 18...30 DC (to SELV/PELV) V |
| Ambient temperature | -10...55 °C |
| Current consumption | 80...680 (24 V DC, full load) mA |
| Communication interface | IO-Link |
| Number of digital inputs | 8 (4 x 2) |
