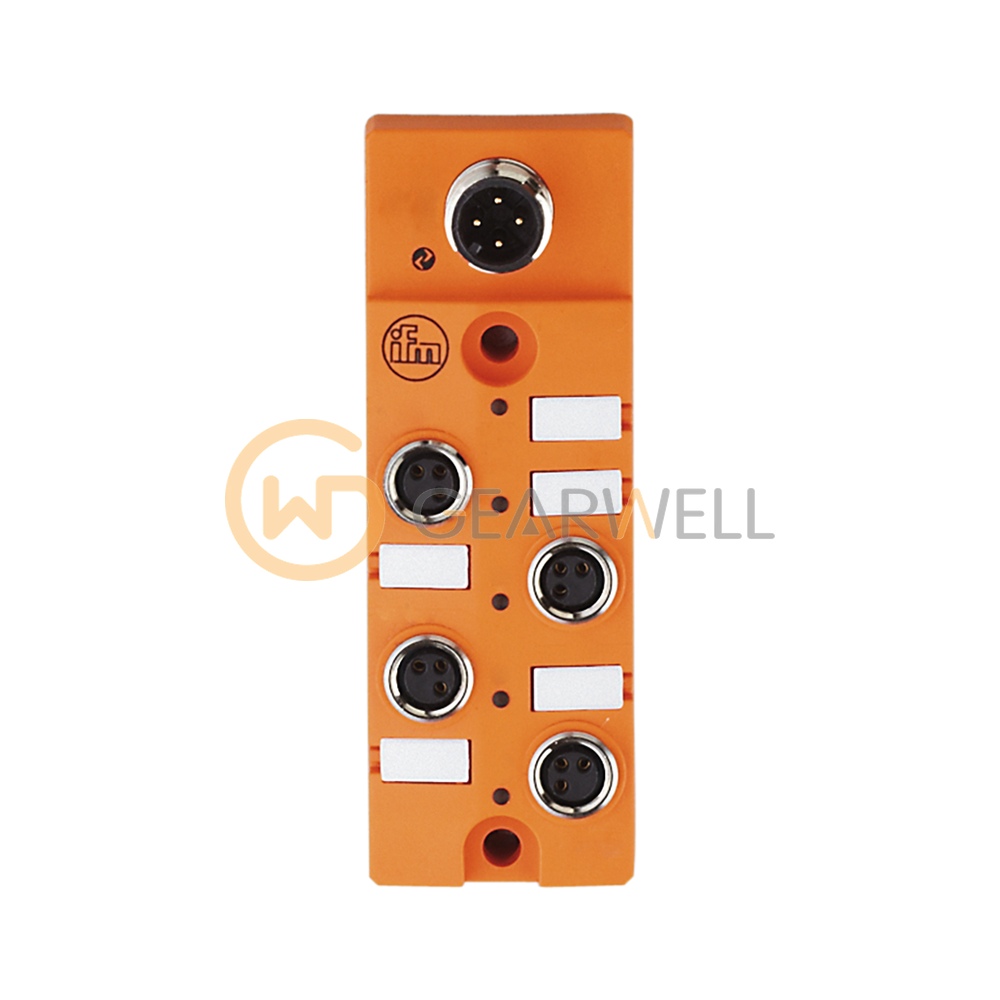

IFM AL2410 Four-input IO-Link CompactLine digital input module
- Brand
- IFM
- Model
- AL2410
- GEARWELL SKU
- GWP-000006771
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL2410 (IO-Link module 4 DI M8 IP 67) is an IO-Link CompactLine module with 4 digital inputs (PNP). It connects to an IO-Link master port and works to IO-Link revision 1.1 (COM2); the minimum process cycle time is 2.9 ms. It runs on 18…30 V DC. The housing measures 85.5 x 30 x 23.7 mm and is made of PBT, with nickel-plated brass sockets, for backplane mounting. It has one M12 connector (A-coded, 4 contacts). It is rated IP67, for -25…70 °C ambient.
Technical reference
| Product name | IFM AL2410 Four-input IO-Link CompactLine digital input module |
|---|---|
| Brand | IFM |
| Model | AL2410 |
| Category | PLCs & I/O |
