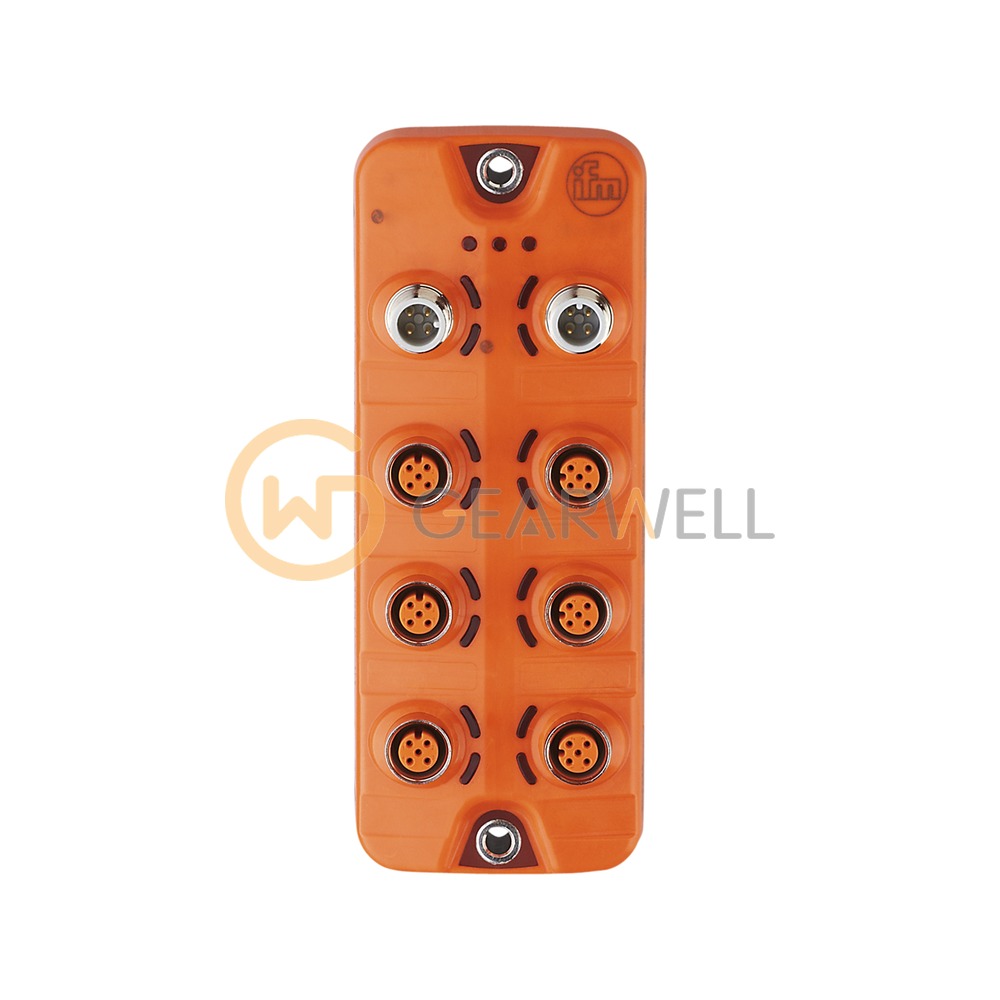

IFM AL2330 IO-Link Module 6x2 DO M12 IP67 IO-Link CompactLine Module
- Brand
- IFM
- Model
- AL2330
- GEARWELL SKU
- GWP-000008636
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 152 x 59.3 x 38 mm
- Protection
- IP 65; IP 67
- Output function
- PNP
- Operating voltage
- 18...30 DC (US) V
- Ambient temperature
- -25...60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL2330 (IO-Link Module 6x2 DO M12 IP67) is an IO-Link CompactLine module with 12 digital outputs (up to 1800 mA each). The outputs carry up to 3.6 A in total. It connects to an IO-Link master port and works to IO-Link revision 1.1 (COM2); the minimum process cycle time is 5.6 ms. It runs on 18…30 V DC. The housing measures 152 x 59.3 x 38 mm and is made of PA, with nickel-plated brass sockets, for backplane mounting. It has one M12 connector (A-coded, 4 contacts). It is rated IP65 and IP67, for -25…60 °C ambient.
Technical reference
| Product name | IFM AL2330 IO-Link Module 6x2 DO M12 IP67 IO-Link CompactLine Module |
|---|---|
| Brand | IFM |
| Model | AL2330 |
| Category | PLCs & I/O |
| Dimensions | 152 x 59.3 x 38 mm |
| Protection | IP 65; IP 67 |
| Output function | PNP |
| Operating voltage | 18...30 DC (US) V |
| Ambient temperature | -25...60 °C |
| Current consumption | 50 (US) mA |
| Communication interface | IO-Link |
| Number of digital outputs | 12 (6 x 2) |
