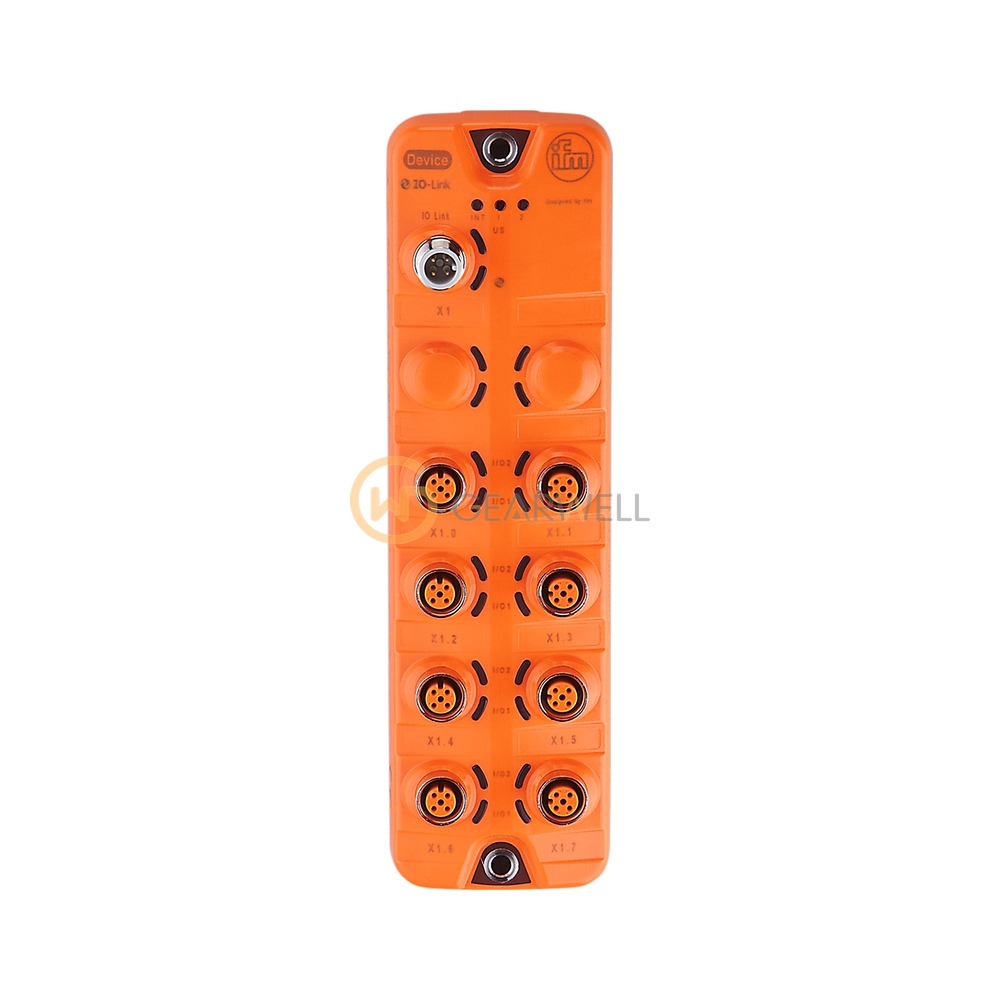

IFM AL2303 IO-Link Input/Output Module
- Brand
- IFM
- Model
- AL2303
- GEARWELL SKU
- GWP-000006776
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL2303 (IOL MOD SL 8XMP/DX B M12 IP67) is an IO-Link input/output module with 16 digital inputs (PNP, configurable), 8 analog inputs (4…20 mA or 0…10 V, 16-bit resolution) and 16 digital outputs (configurable, up to 1800 mA each). The outputs carry up to 3.6 A in total. It connects to a class B IO-Link master port and works to IO-Link revision 1.1 (COM3); the minimum process cycle time is 4 ms. It runs on 18…30 V DC. The housing measures 208 x 59.3 x 38.4 mm and is made of orange PA, with nickel-plated brass sockets, for backplane mounting. It has one M12 connector (A-coded, 5 contacts). It is rated IP65 and IP67, for -25…60 °C ambient.
Technical reference
| Product name | IFM AL2303 IO-Link Input/Output Module |
|---|---|
| Brand | IFM |
| Model | AL2303 |
| Category | PLCs & I/O |
