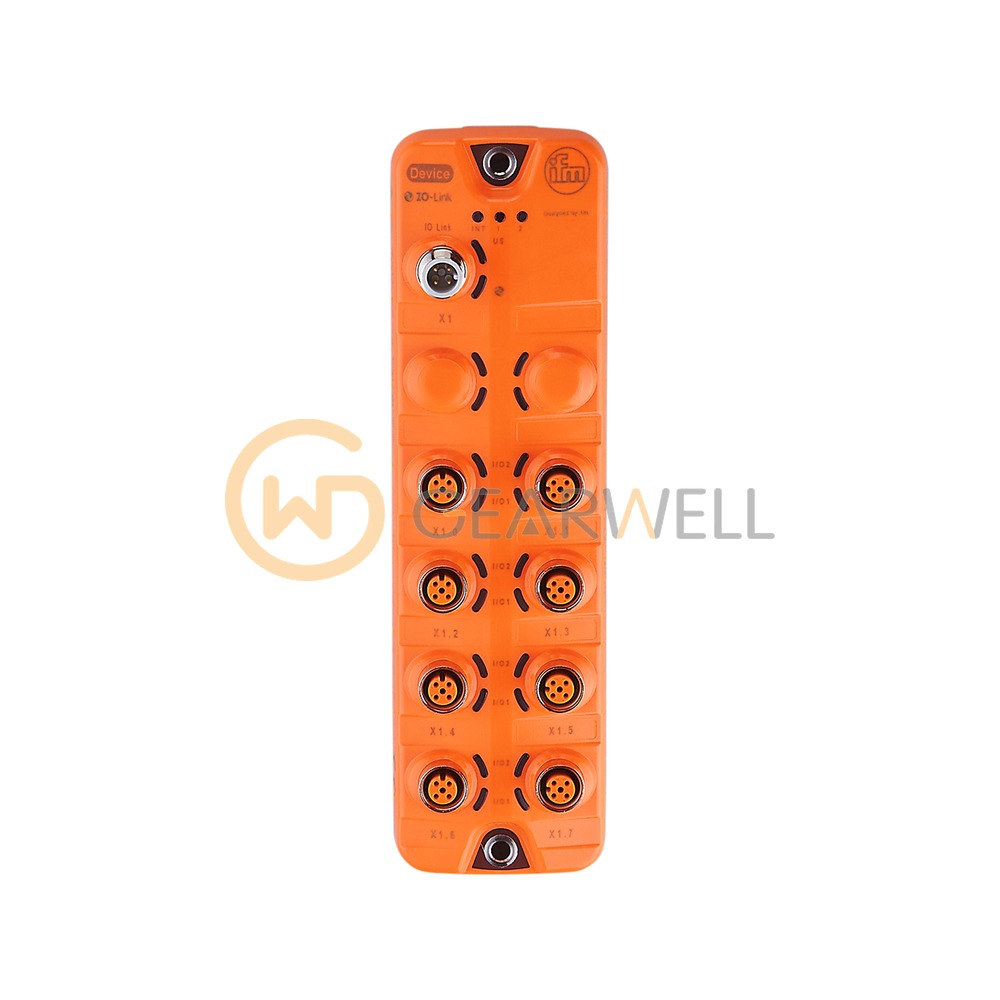

IFM AL2301 IOL MOD SL 8XMP/DX A M12 IP67 IO-Link Input/output Module
- Brand
- IFM
- Model
- AL2301
- GEARWELL SKU
- GWP-000008635
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 208 x 59.3 x 38.4 mm
- Protection
- IP 65; IP 67
- Operating voltage
- 18...30 DC V
- Current consumption
- 1100 (US) mA
- Communication interface
- IO-Link
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL2301 (IOL MOD SL 8XMP/DX A M12 IP67) is an IO-Link input/output module with 16 digital inputs (PNP, configurable), 8 analog inputs (4…20 mA or 0…10 V, 16-bit resolution) and 16 digital outputs (configurable, up to 1000 mA each). The outputs carry up to 1 A in total. It connects to a class A IO-Link master port and works to IO-Link revision 1.1 (COM3); the minimum process cycle time is 4 ms. It runs on 18…30 V DC. The housing measures 208 x 59.3 x 38.4 mm and is made of orange PA, with nickel-plated brass sockets, for backplane mounting. It has one M12 connector (A-coded, 4 contacts). It is rated IP65 and IP67, for -25…60 °C ambient.
Technical reference
| Product name | IFM AL2301 IOL MOD SL 8XMP/DX A M12 IP67 IO-Link Input/output Module |
|---|---|
| Brand | IFM |
| Model | AL2301 |
| Category | PLCs & I/O |
| Dimensions | 208 x 59.3 x 38.4 mm |
| Protection | IP 65; IP 67 |
| Operating voltage | 18...30 DC V |
| Current consumption | 1100 (US) mA |
| Communication interface | IO-Link |
| Number of digital inputs | 16 (configurable) |
| Number of analogue inputs | 8 (configurable current/voltage input) |
| Number of digital outputs | 16 (configurable) |
