IFM AL2240 IO-Link Input Module
- Brand
- IFM
- Model
- AL2240
- GEARWELL SKU
- GWP-000006764
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

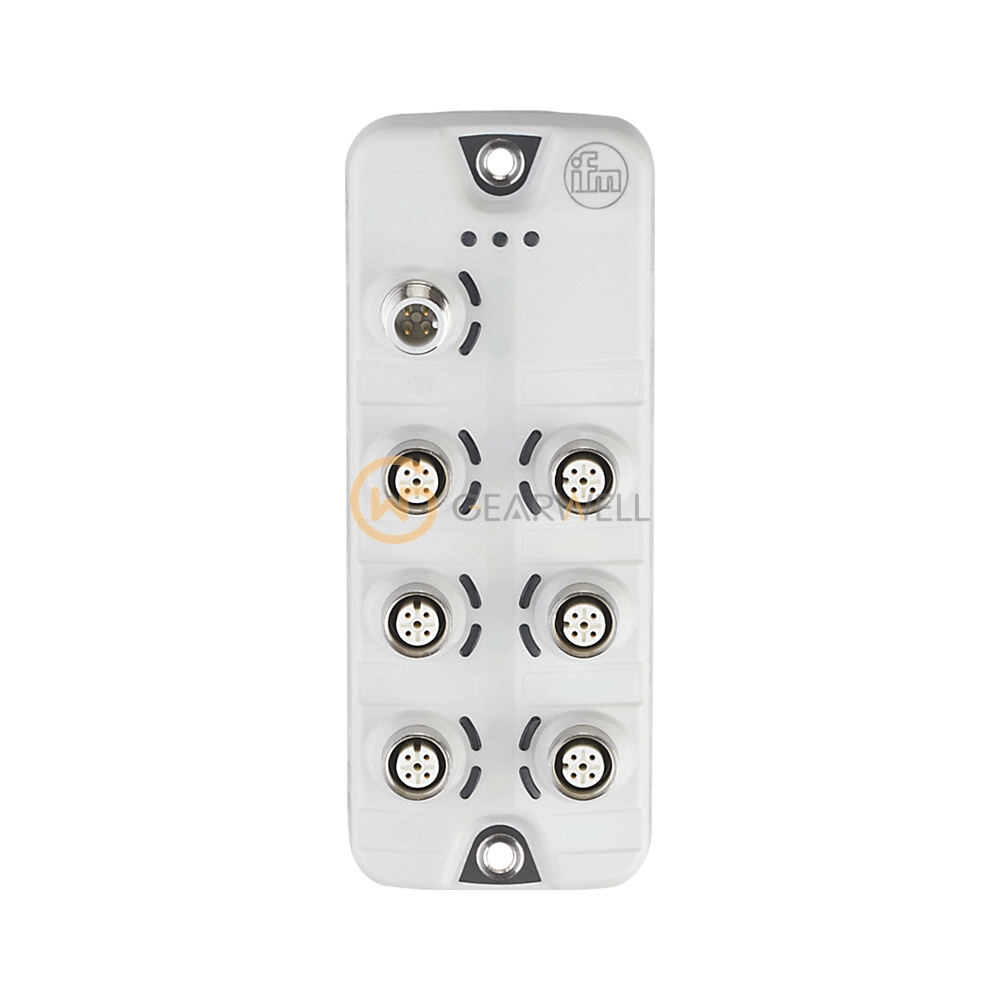

The ifm AL2240 (IO-Link Module 6x2 DI M12 IP69K) is an IO-Link input module with 12 digital inputs. It connects to a class A IO-Link master port and works to IO-Link revision 1.1 (COM2); the minimum process cycle time is 4.3 ms. It runs on 18…30 V DC. The housing measures 152 x 59.3 x 38 mm and is made of grey PA, with stainless steel (1.4404 / 316L) sockets, for backplane mounting. It has one M12 connector (A-coded, 4 contacts). It is rated IP65 and IP67, and IP69K when operated with stainless steel protective caps, for -25…60 °C ambient.
Technical reference
| Product name | IFM AL2240 IO-Link Input Module |
|---|---|
| Brand | IFM |
| Model | AL2240 |
| Category | PLCs & I/O |
