IFM AL1950 IO-Link master with IoT interface
- Brand
- IFM
- Model
- AL1950
- GEARWELL SKU
- GWP-000006777
- Category
- Industrial Communication
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

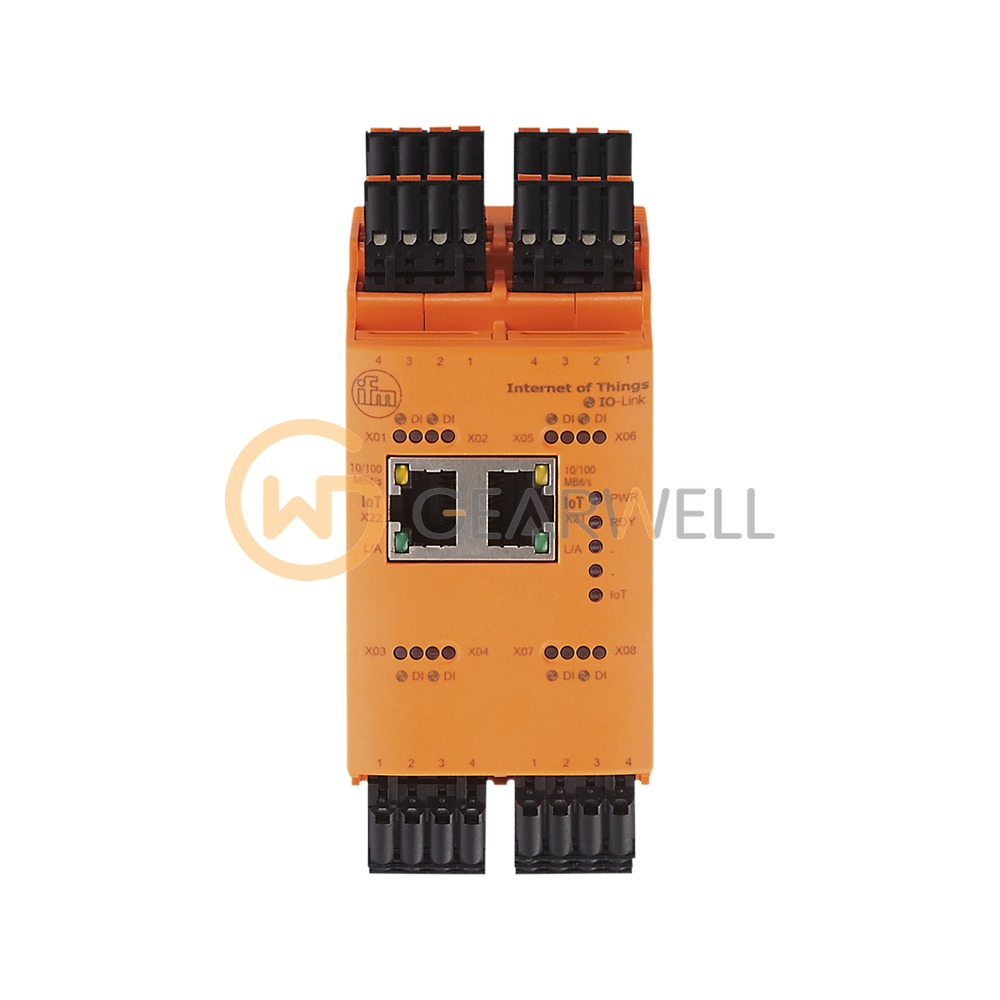

The ifm AL1950 (IO-Link Master CL IoT 8P IP20) is an IO-Link master with an IoT interface (MQTT JSON) and 8 class A IO-Link ports. The Ethernet side supports 10Base-T and 100Base-TX. It uses HTTPS as the security protocol. The ports work to IO-Link revision 1.1 with COM1, COM2 and COM3 transmission. They also provide 8 digital inputs and 8 digital outputs, with up to 300 mA per output and a total current load of up to 3.6 A. It runs on 20…30 V DC (US). The housing measures 125.7 x 50 x 105.3 mm and is made of orange PA, for DIN rail mounting (TH35, EN 60715). It is rated IP20, for -25…65 °C ambient.
Technical reference
| Product name | IFM AL1950 IO-Link master with IoT interface |
|---|---|
| Brand | IFM |
| Model | AL1950 |
| Category | Industrial Communication |
