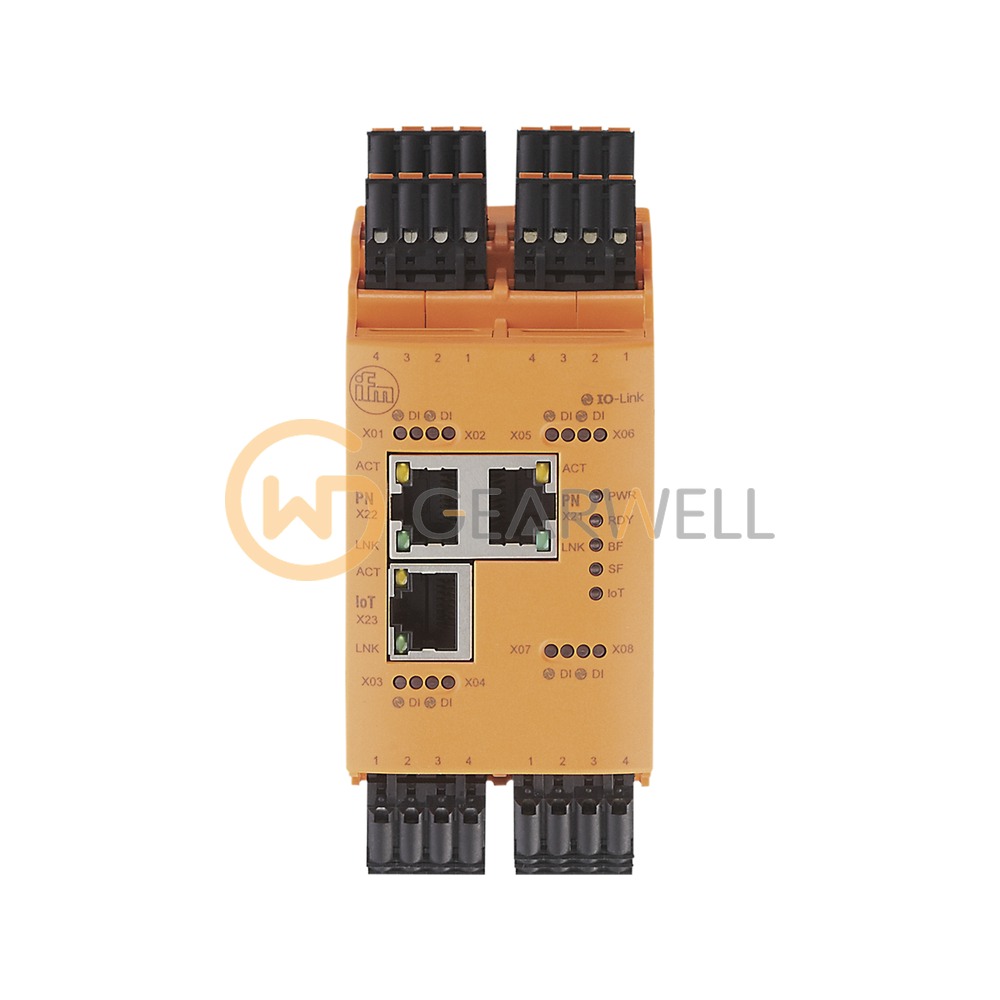

IFM AL1920 IO-Link Master with EtherNet/IP Interface
- Brand
- IFM
- Model
- AL1920
- GEARWELL SKU
- GWP-000008634
- Category
- Industrial Communication
Key specifications
- Dimensions
- 125.7 x 50 x 105.3 mm
- Protection
- IP 20
- Operating voltage
- 20...30 DC (US ; to SELV/PELV) V
- Ambient temperature
- -25...65 °C
- Current consumption
- 300...3900 (US) mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL1920 (IO-Link Master CL EIP 8P IP20) is an IO-Link master with an EtherNet/IP interface and 8 class A IO-Link ports. The Ethernet side supports 10Base-T and 100Base-TX. ifm lists IP addressing by DHCP, BOOTP or static address, DLR (Device Level Ring) and line and ring network topologies. The ports work to IO-Link revision 1.1 with COM1, COM2 and COM3 transmission. They also provide 8 digital inputs and 8 digital outputs, with up to 300 mA per output and a total current load of up to 3.6 A. It runs on 20…30 V DC (US). The housing measures 125.7 x 50 x 105.3 mm and is made of orange PA, for DIN rail mounting (TH35, EN 60715). It is rated IP20, for -25…65 °C ambient.
Technical reference
| Product name | IFM AL1920 IO-Link Master with EtherNet/IP Interface |
|---|---|
| Brand | IFM |
| Model | AL1920 |
| Category | Industrial Communication |
| Dimensions | 125.7 x 50 x 105.3 mm |
| Protection | IP 20 |
| Operating voltage | 20...30 DC (US ; to SELV/PELV) V |
| Ambient temperature | -25...65 °C |
| Current consumption | 300...3900 (US) mA |
| Communication interface | Ethernet; IO-Link |
| Number of digital inputs | 8 (IO-Link Port Class A) |
| Number of digital outputs | 8 (IO-Link Port Class A) |
