IFM AC2035 AS-Interface Universal I/O Module
- Brand
- IFM
- Model
- AC2035
- GEARWELL SKU
- GWP-000000310
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

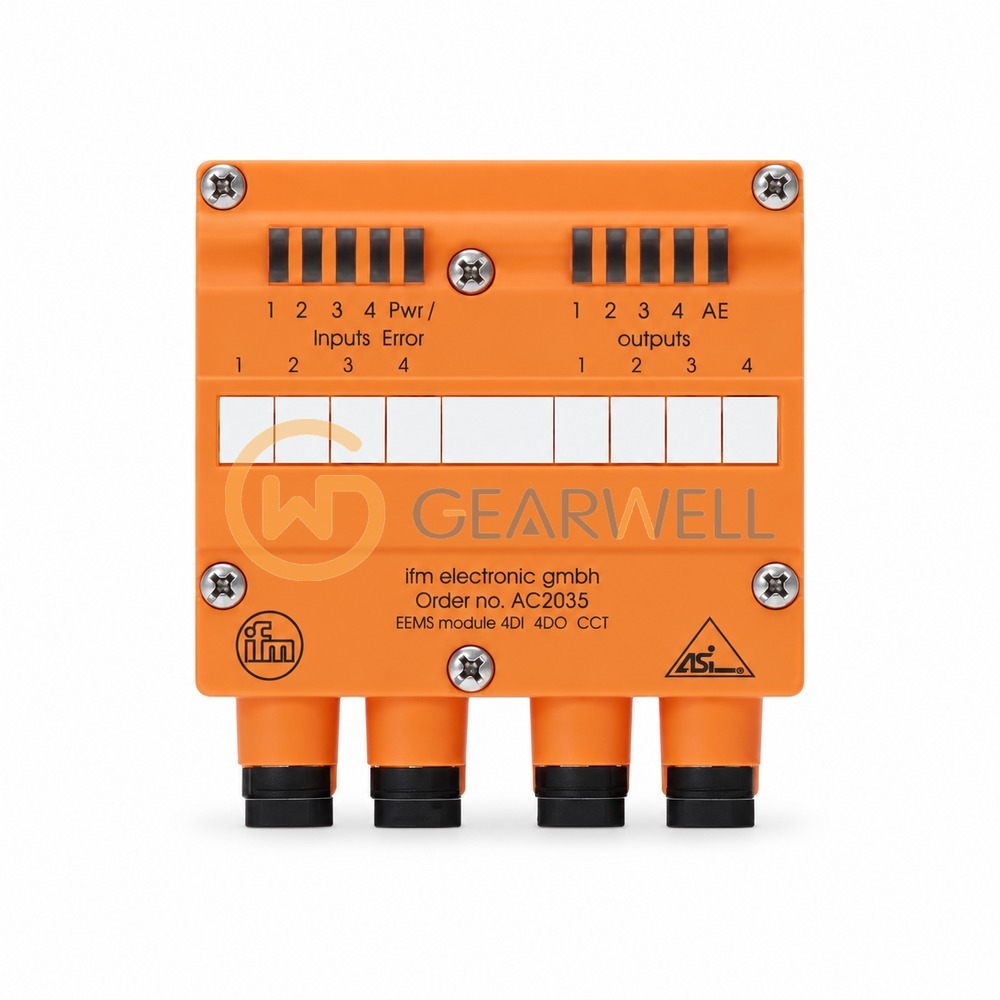

The ifm AC2035 (EEMS/Module/4DI/4DO/T/CCT) is an AS-Interface universal module for field installation. It has four digital inputs and four digital outputs, with PNP inputs powered from AS-i. The PNP outputs carry up to 1000 mA each, with an output supply of 24 V DC. On the AS-i side it uses slave profile S-7.F.F, and it works with AS-i masters of profile M2, M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 230 mA. The housing measures 102 x 91 x 71 mm and is made of PA 6-GF30. It fits an FC-E or SC lower part and is rated IP65 for -25…60 °C ambient.
Technical reference
| Product name | IFM AC2035 AS-Interface Universal I/O Module |
|---|---|
| Brand | IFM |
| Model | AC2035 |
| Category | PLCs & I/O |
