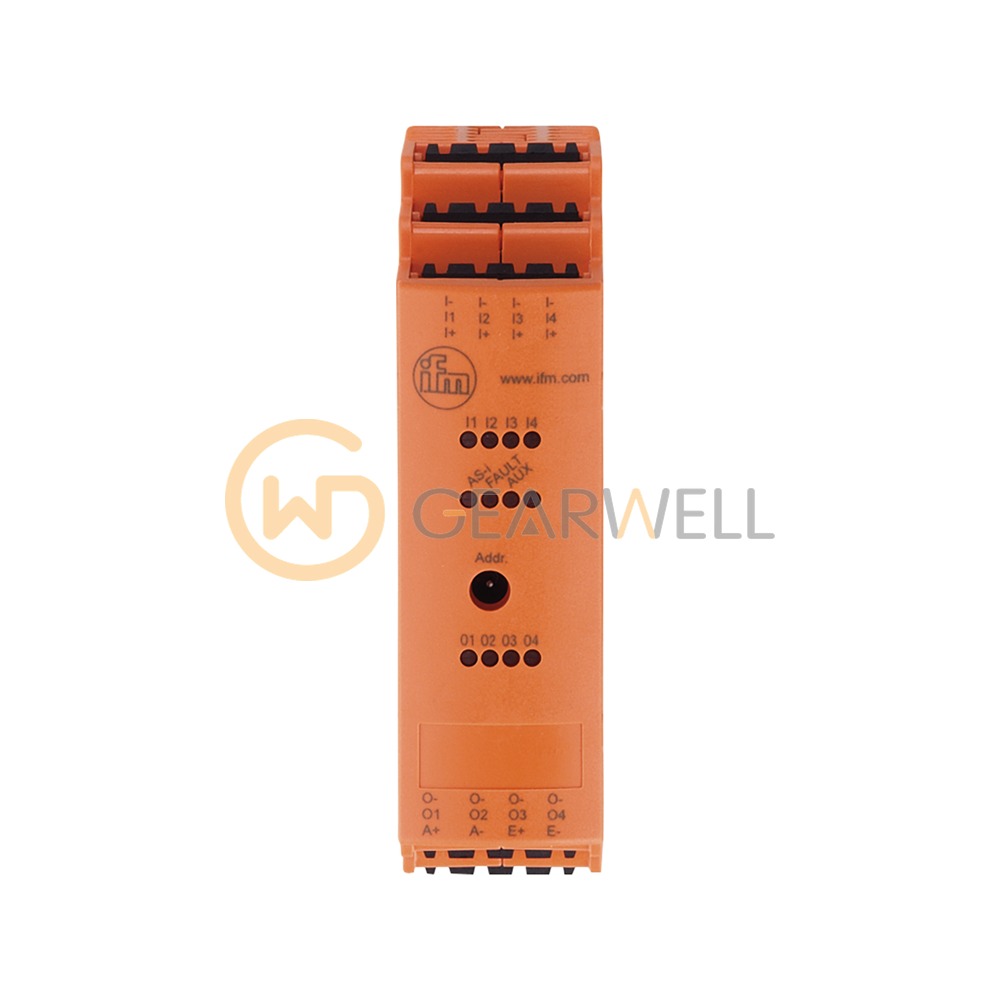

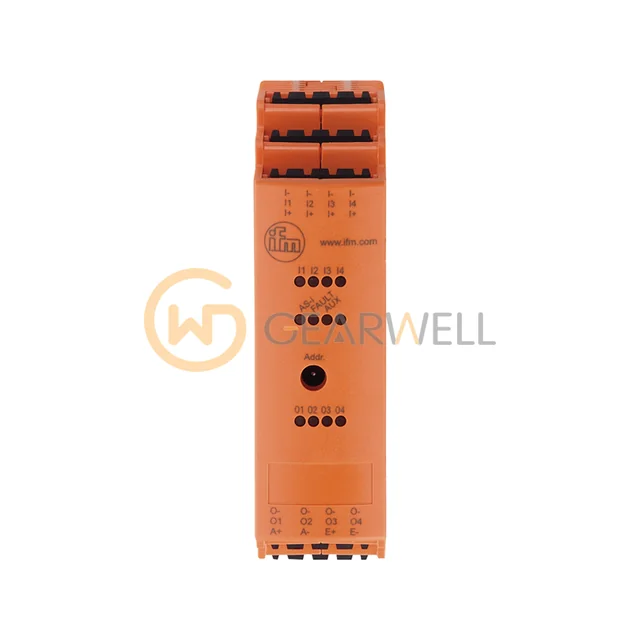

IFM AC2267 AS-Interface Control Cabinet Module
- Brand
- IFM
- Model
- AC2267
- GEARWELL SKU
- GWP-000008607
- Category
- PLCs & I/O
Key specifications
- Housing
- rectangular
- Dimensions
- 93 x 25.4 x 108 mm
- Protection
- IP 20
- Operating voltage
- 26.5...31.6 DC V
- Ambient temperature
- -25...70 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC2267 (SmartLine25 4DI 4DO T C AUX) is an AS-Interface control cabinet module. It has four digital inputs and four digital outputs, with PNP inputs (type 2 to IEC 61131-2) powered from the AUX supply. The PNP outputs carry up to 1000 mA each and 4 A in total, with an output supply of 20…30 V DC. On the AS-i side it supports AS-i version 3.0 with slave profile S-7.A.7 and extended (A/B) addressing, and it needs an AS-i master with profile M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 50 mA, with an AUX supply of 20 V DC. The housing measures 93 x 25.4 x 108 mm and is made of PC-GF20. It mounts on a TH35 DIN rail and is rated IP20 for -25…70 °C ambient.
Technical reference
| Product name | IFM AC2267 AS-Interface Control Cabinet Module |
|---|---|
| Brand | IFM |
| Model | AC2267 |
| Category | PLCs & I/O |
| Housing | rectangular |
| Dimensions | 93 x 25.4 x 108 mm |
| Protection | IP 20 |
| Operating voltage | 26.5...31.6 DC V |
| Ambient temperature | -25...70 °C |
| Number of digital inputs | 4 |
| Number of digital outputs | 4 |
| Max. current consumption from AS-i | 50 mA |
