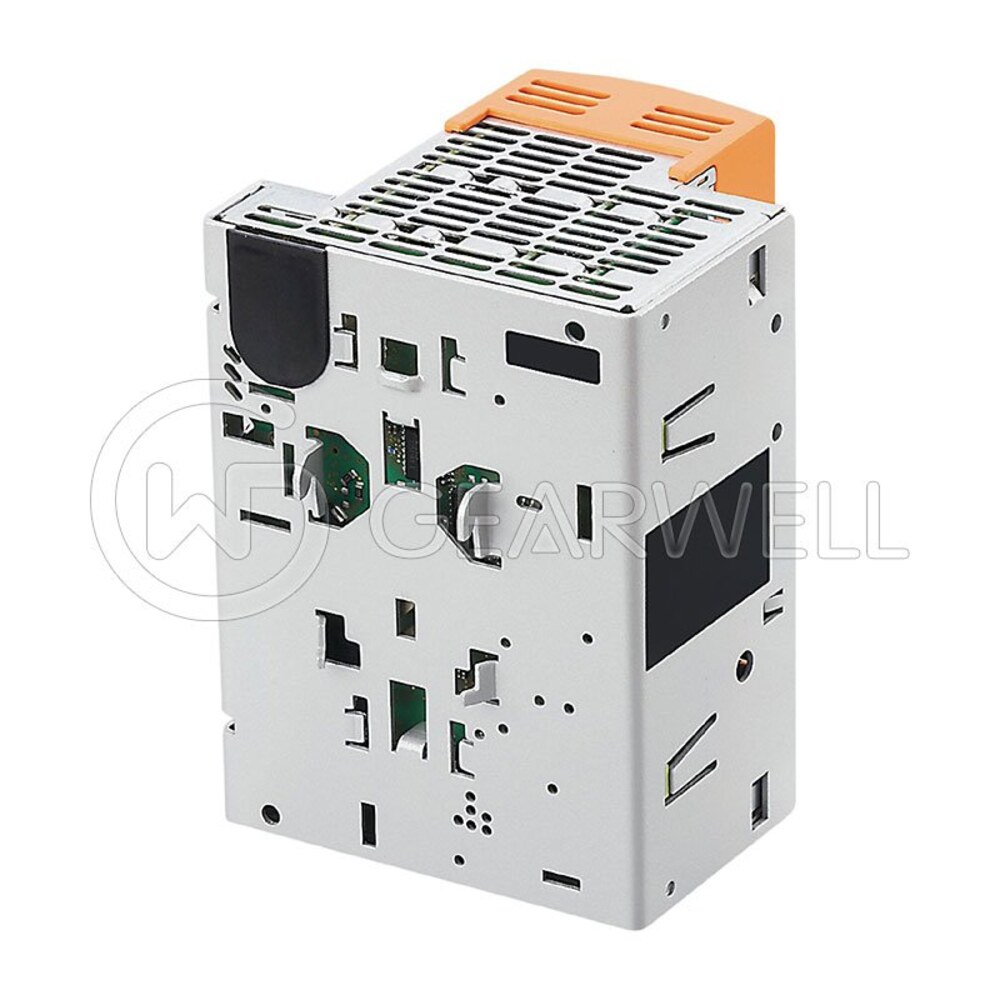

IFM AC1433 AS-Interface EtherCAT gateway with PLC
- Brand
- IFM
- Model
- AC1433
- GEARWELL SKU
- GWP-000000686
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 727 g
- Dimensions
- 135.5 x 93 x 106.2 mm
- Protection
- IP 20
- Product type
- AS-Interface EtherCAT gateway with PLC
- Operating voltage
- 18...32 DC; (AUX; AS-i: 21...31,6 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC1433 (SmartPLC DataLine 1ASi ECAT) is an AS-Interface EtherCAT gateway with PLC. It has one AS-i master to AS-i version 3.0, master profile M4. ifm lists it for use as a standard PLC, as an AS-i/EtherCAT gateway, or both. It connects to EtherCAT over Ethernet through an RJ45 connector at 100 MBaud and also offers OPC UA, and has a full graphic LCD display. It runs on 18…32 V DC AUX (AS-i 21…31.6 V DC), with a current consumption below 500 mA, and is electrically separated. The housing measures 135.5 x 93 x 106.2 mm and is made of powder-coated aluminum, galvanized steel sheet and PC. It mounts on a TH35 DIN rail and is rated IP20 for 0…60 °C ambient. Supplied with terminals for conductors up to 2.5 mm².
Technical reference
| Product name | IFM AC1433 AS-Interface EtherCAT gateway with PLC |
|---|---|
| Brand | IFM |
| Model | AC1433 |
| Category | Industrial Automation Parts |
| Weight | 727 g |
| Dimensions | 135.5 x 93 x 106.2 mm |
| Protection | IP 20 |
| Product type | AS-Interface EtherCAT gateway with PLC |
| Operating voltage | 18...32 DC; (AUX; AS-i: 21...31,6 V DC) |
| Ambient temperature | 0...60 °C |
| Current consumption | < 500; (AUX / AS-i 1) mA |
| Communication interface | Ethernet; OPC-UA |
