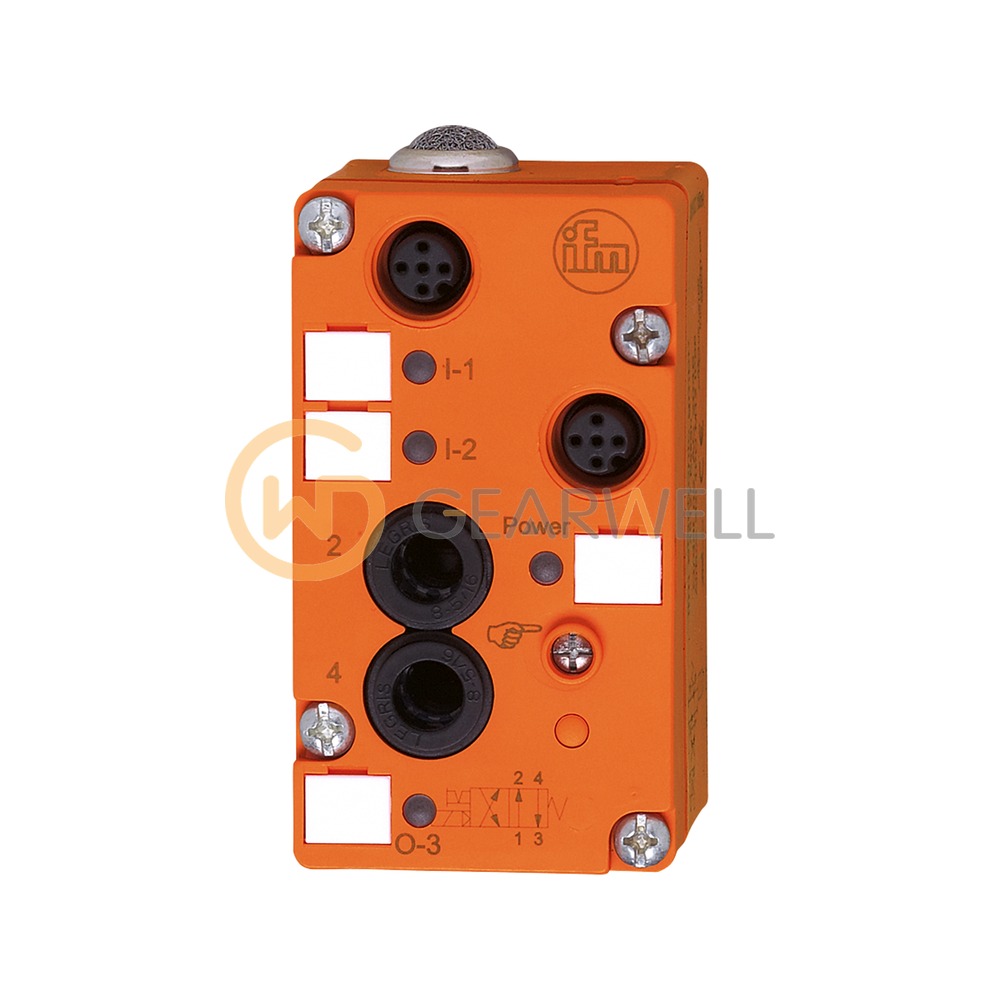

IFM AC2046 AS-Interface AirBox

Product overview

The ifm AC2046 (AirBox 2DI 1PO M12) is an AS-Interface AirBox for field installation. It has two digital inputs and one pneumatic output, with PNP inputs powered from AS-i. The pneumatic side uses one 4/2-way seat valve, with an operating pressure range of 3…8 bar, an air flow of 500 l/min at 6/5 bar and Legris LF 3000/8 and LF 3000/4 tube fittings. On the AS-i side it uses slave profile S-3.F, and it works with AS-i masters of profile M2, M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 165 mA. The housing measures 85 x 45 x 52 mm and is made of PBT. It is screw-mounted, has an M12 socket and is rated IP65 for 0…55 °C ambient.
