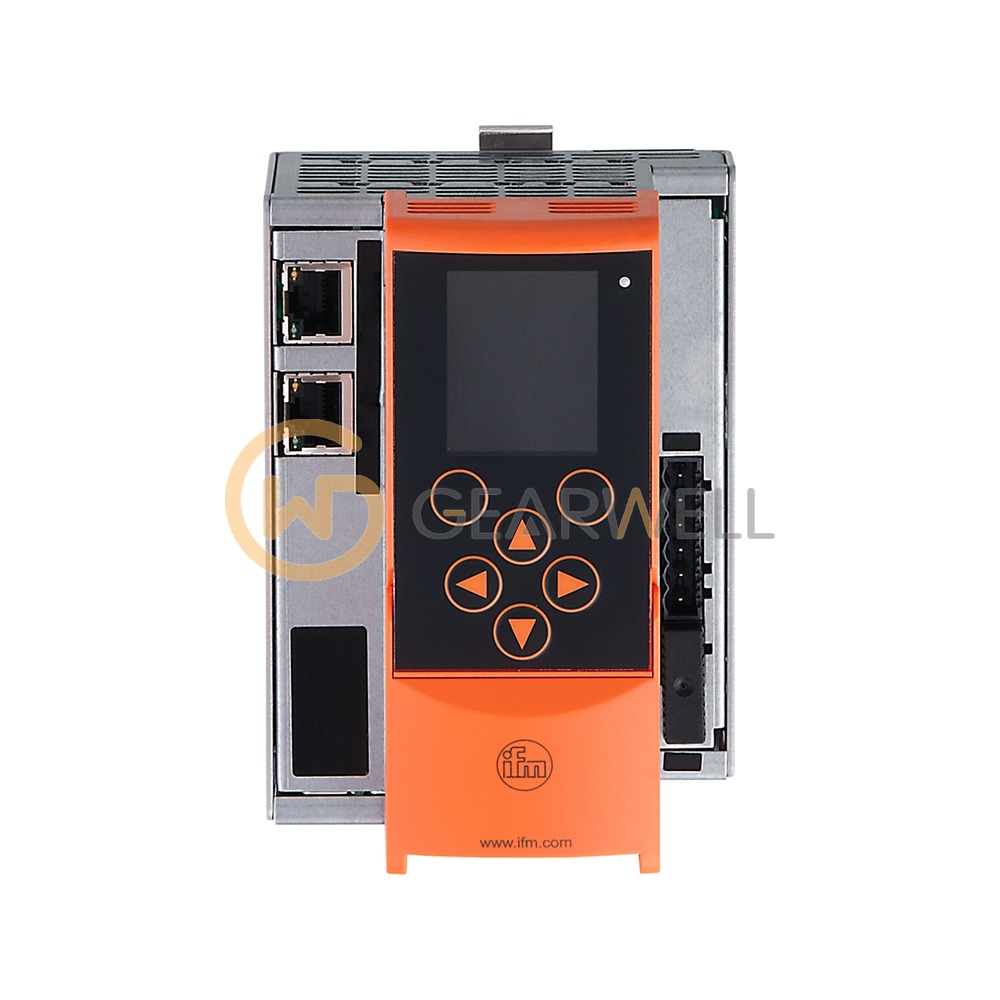

IFM AC1422 AS-Interface EtherNet/IP Gateway
- Brand
- IFM
- Model
- AC1422
- GEARWELL SKU
- GWP-000008377
- Category
- Industrial Communication
Key specifications
- Housing
- rectangular
- Dimensions
- 135.5 x 93 x 106.2 mm
- Protection
- IP 20
- Operating voltage
- 18...32 DC (AUX; AS-i: 21...31,6 V DC) V
- Ambient temperature
- 0...60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC1422 (AS-i Gateway 2Master EIP) is an AS-Interface EtherNet/IP gateway. It has two AS-i masters to AS-i version 3.0, master profile M4. It connects to EtherNet/IP over Ethernet through an RJ45 connector at 10 MBaud or 100 MBaud, and has a full graphic LCD display. It runs on 18…32 V DC AUX (AS-i 21…31.6 V DC), with a current consumption below 500 mA, and is electrically separated. The housing measures 135.5 x 93 x 106.2 mm and is made of powder-coated aluminum, galvanized steel sheet and PC. It mounts on a TH35 DIN rail and is rated IP20 for 0…60 °C ambient. Supplied with terminals for conductors up to 2.5 mm².
Technical reference
| Product name | IFM AC1422 AS-Interface EtherNet/IP Gateway |
|---|---|
| Brand | IFM |
| Model | AC1422 |
| Category | Industrial Communication |
| Housing | rectangular |
| Dimensions | 135.5 x 93 x 106.2 mm |
| Protection | IP 20 |
| Operating voltage | 18...32 DC (AUX; AS-i: 21...31,6 V DC) V |
| Ambient temperature | 0...60 °C |
| Current consumption | < 500 (AUX / AS-i 1) mA |
| Communication interface | Ethernet |
| Max. current consumption from AS-i | 500 (with external supply: 10 mA; AS-i 2: 10 mA) mA |
