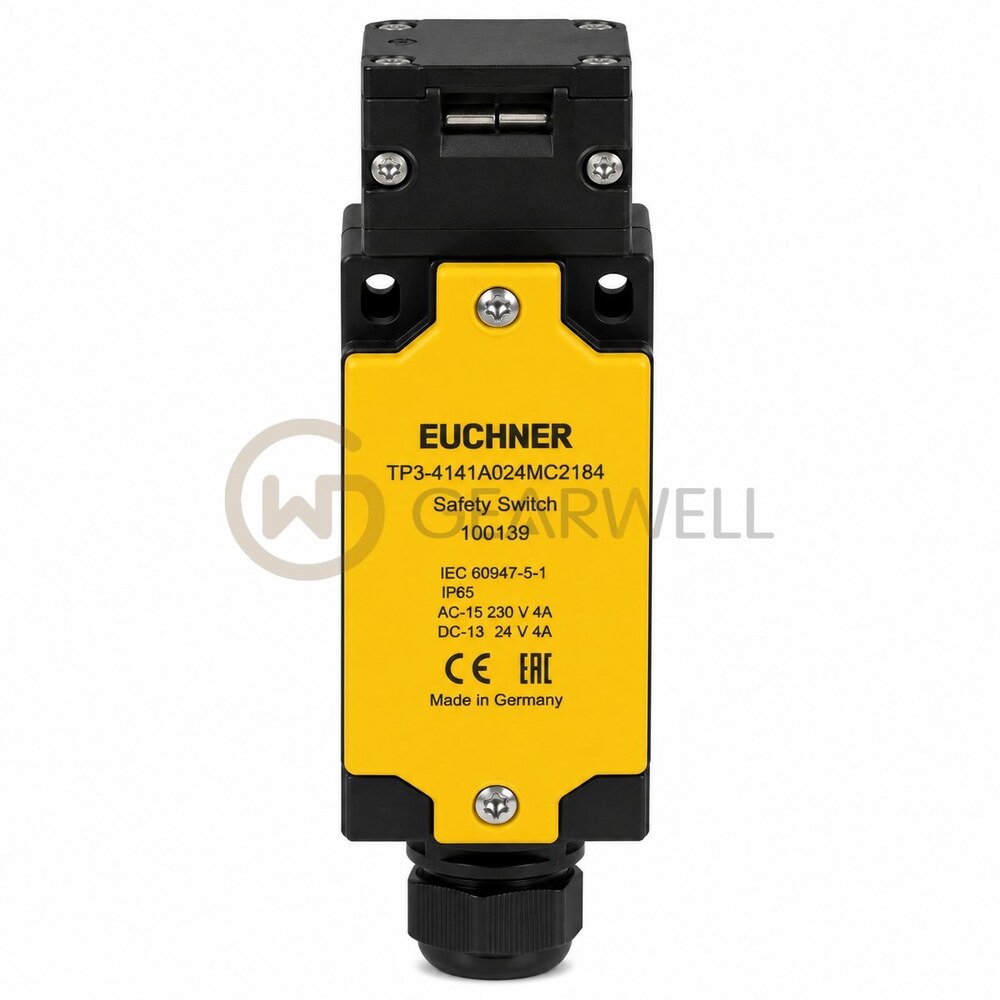

EUCHNER TP3-4141A024MC2184 TP Safety Switch with Guard Locking
- Brand
- EUCHNER
- Model
- TP3-4141A024MC2184
- GEARWELL SKU
- GWP-000001926
- Category
- Industrial Automation Parts
Key specifications
- Connection
- 3 × M20 × 1.5 cable entries
- Protection rating
- IP67
- Product type
- TP safety switch with guard locking
- Solenoid operating voltage
- 24 V AC/DC, -15% to +10%
- Power consumption
- 8 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER TP3-4141A024MC2184 is a TP3 series electromechanical safety switch with guard locking in version C2184, with switching element 4141 and a 24 V AC/DC guard locking solenoid. In TP3 versions the guard is locked by spring force and released when voltage is applied to the solenoid (closed-circuit current principle), and door monitoring contacts are provided in addition to the guard lock monitoring contacts. The locking force is 1,300 N (Fmax) and 1,000 N (FZh), contacts are rated AC-15 4 A 230 V and DC-13 4 A 24 V, and the solenoid draws 8 W. The reinforced thermoplastic housing with cable entry reaches IP67 and works from -20 to +55 °C.
Technical reference
| Product name | EUCHNER TP3-4141A024MC2184 TP Safety Switch with Guard Locking |
|---|---|
| Brand | EUCHNER |
| Model | TP3-4141A024MC2184 |
| Category | Industrial Automation Parts |
| Connection | 3 × M20 × 1.5 cable entries |
| Protection rating | IP67 |
| Product type | TP safety switch with guard locking |
| Solenoid operating voltage | 24 V AC/DC, -15% to +10% |
| Power consumption | 8 W |
| Ambient temperature | -20 to 55 °C |
| Contact configuration | 2 guard-lock NC + 2 door-monitoring NC contacts |
| Guard locking principle | Closed-circuit current; power to unlock |
