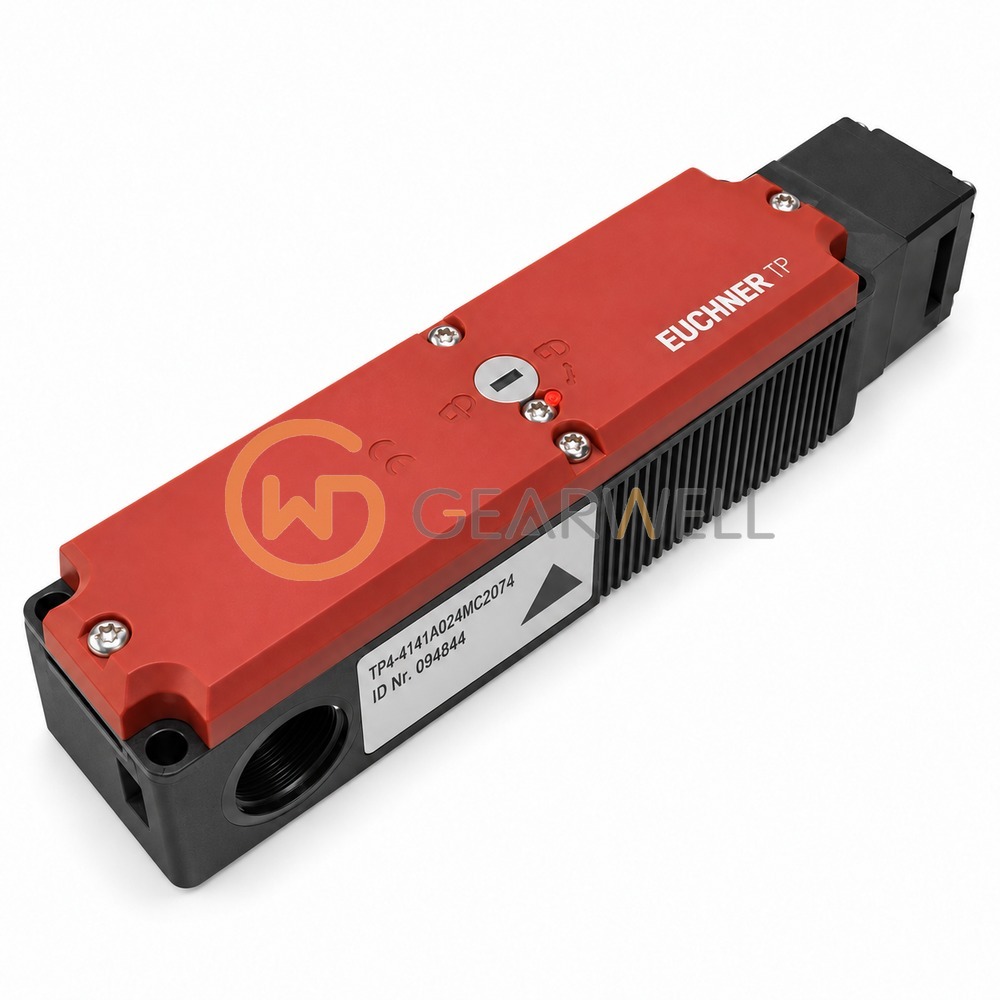

EUCHNER TP4-4141A024MC2074 Safety Interlock Switch with Guard Locking
- Brand
- EUCHNER
- Model
- TP4-4141A024MC2074
- GEARWELL SKU
- GWP-000002282
- Category
- Machine Safety & Vision
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER TP4-4141A024MC2074 is a version of the EUCHNER TP safety switch with guard locking, order no. 094844, fitted with a 4NC contact element. Only contacts 11-12 and 31-32 change state when the guard locking is locked or unlocked, and these contacts must always be part of the safety circuit in applications with hazardous states such as overtravelling movements. The actuator head can be turned to the required approach direction after loosening its fixing screws, and the housing has three M20x1,5 threads. The switch must not be used as an end stop, and the actuator is ordered separately.
Technical reference
| Product name | EUCHNER TP4-4141A024MC2074 Safety Interlock Switch with Guard Locking |
|---|---|
| Brand | EUCHNER |
| Model | TP4-4141A024MC2074 |
| Category | Machine Safety & Vision |
