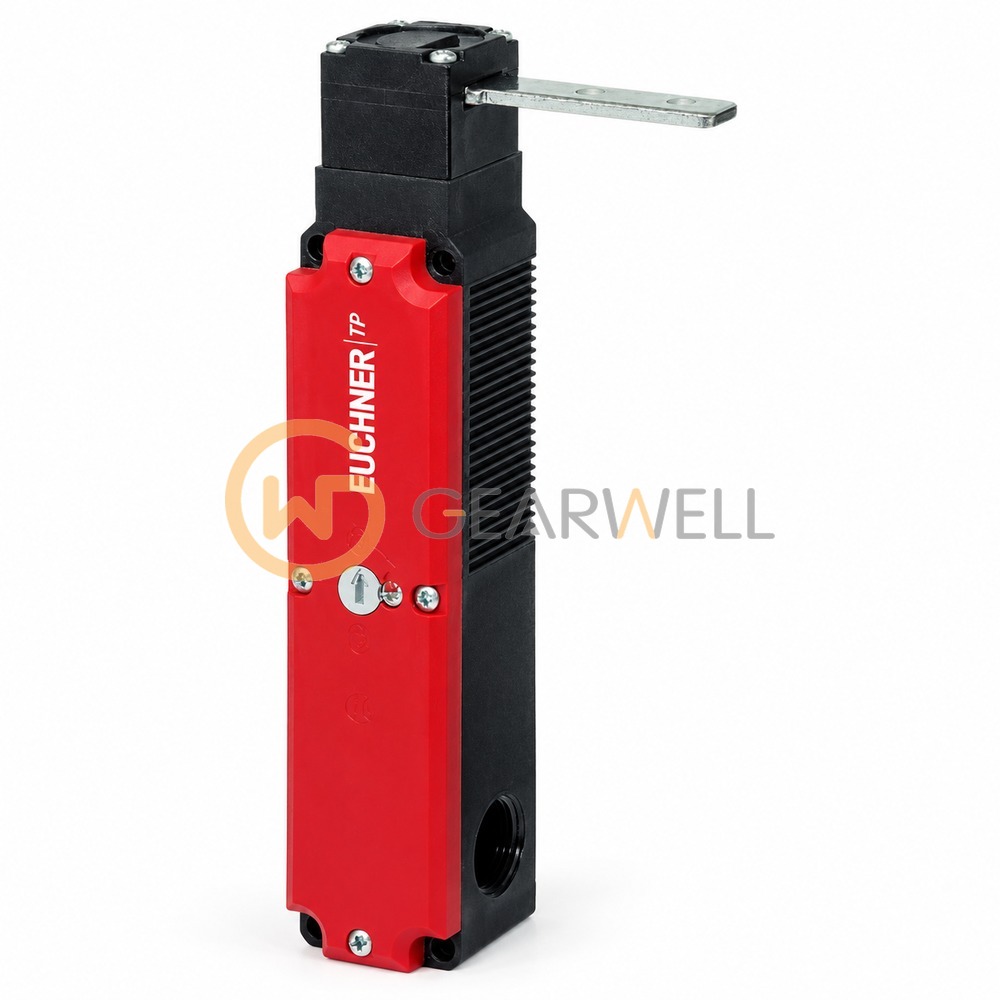

EUCHNER TP3-4141A024M Safety Switch

Product overview

The EUCHNER TP3-4141A024M is a TP series electromechanical safety switch with guard locking, order no. 084270, using the closed-circuit current principle, so spring force locks the guard and the 24 V AC/DC solenoid unlocks it (power to unlock). Slow-action switching element 4141 carries 2 positively driven contacts for guard lock monitoring and 2 positively driven contacts for the door position, rated AC-15 4 A 230 V and DC-13 4 A 24 V. It has a reinforced thermoplastic housing with three M20 x 1.5 cable entries, an auxiliary release and IP67 protection, for ambient temperatures of -20 to 55 °C. Locking force is 1300 N (F max) and 1000 N (F Zh); order the actuator separately.
