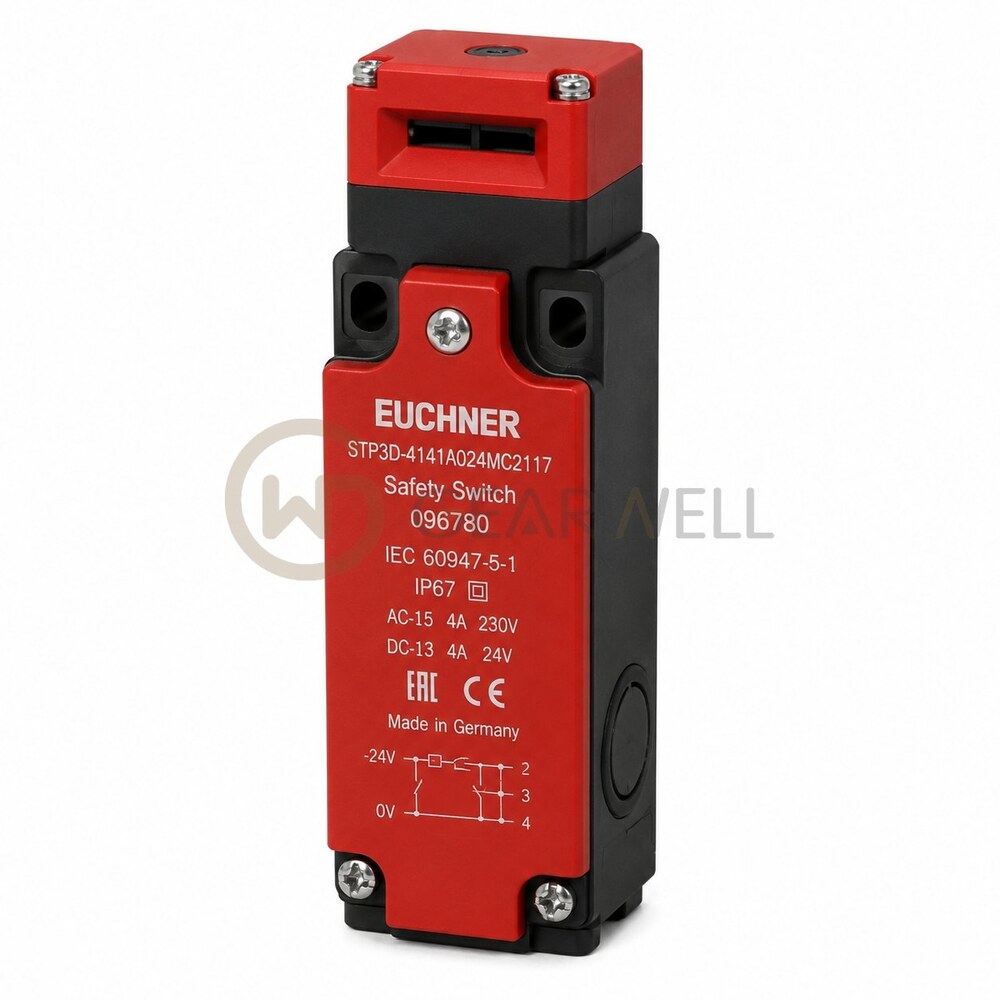

EUCHNER TP3D-4141A024MC2117 Safety Relay
- Brand
- EUCHNER
- Model
- TP3D-4141A024MC2117
- GEARWELL SKU
- GWP-000000028
- Category
- Industrial Automation Parts
Key specifications
- Core order number
- 084270
- Product type
- Guard-locking safety switch
- Guard-locking principle
- Power to unlock / mechanical guard locking
- Locking force
- 1000 N (FZh), 1300 N maximum
- Solenoid operating voltage
- 24 V AC/DC (-15% / +10%)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EUCHNER TP3D-4141A024MC2117 Safety Relay |
|---|---|
| Brand | EUCHNER |
| Model | TP3D-4141A024MC2117 |
| Category | Industrial Automation Parts |
| Core order number | 084270 |
| Product type | Guard-locking safety switch |
| Guard-locking principle | Power to unlock / mechanical guard locking |
| Locking force | 1000 N (FZh), 1300 N maximum |
| Solenoid operating voltage | 24 V AC/DC (-15% / +10%) |
| Protection rating | IP67 |
| Normalized core model | TP3-4141A024M |
| Positive-opening contacts | 2 door-position + 2 guard-lock monitoring |
