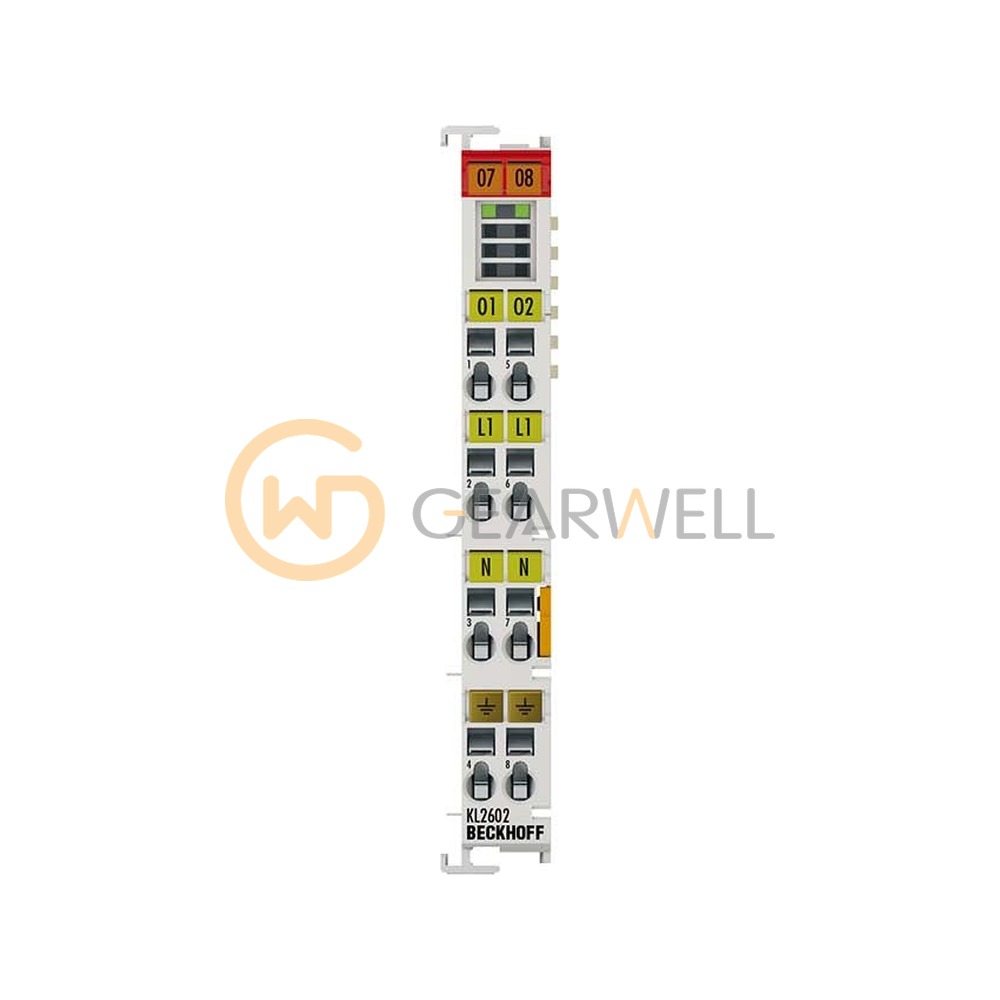

BECKHOFF KL2602 2-Channel Relay Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2602
- GEARWELL SKU
- GWP-000008192
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 230 V AC/30 V DC
- Number of outputs
- 2 x make contacts for power contact
- Switching current
- 5 A AC/DC (resistive)/2 A AC/DC (inductive)
- Max. output current
- 5 A per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2602 is a 2-channel relay output Bus Terminal (K-bus) with make contacts rated 230 V AC/30 V DC. Each channel switches up to 5 A resistive or 2 A inductive load. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2602 2-Channel Relay Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2602 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 230 V AC/30 V DC |
| Number of outputs | 2 x make contacts for power contact |
| Switching current | 5 A AC/DC (resistive)/2 A AC/DC (inductive) |
| Max. output current | 5 A per channel |
| Minimum permitted load | 10 mA at 5 V DC |
| Inductive switching current | 2 A AC/DC |
| Resistive switching current | 5 A AC/DC |
