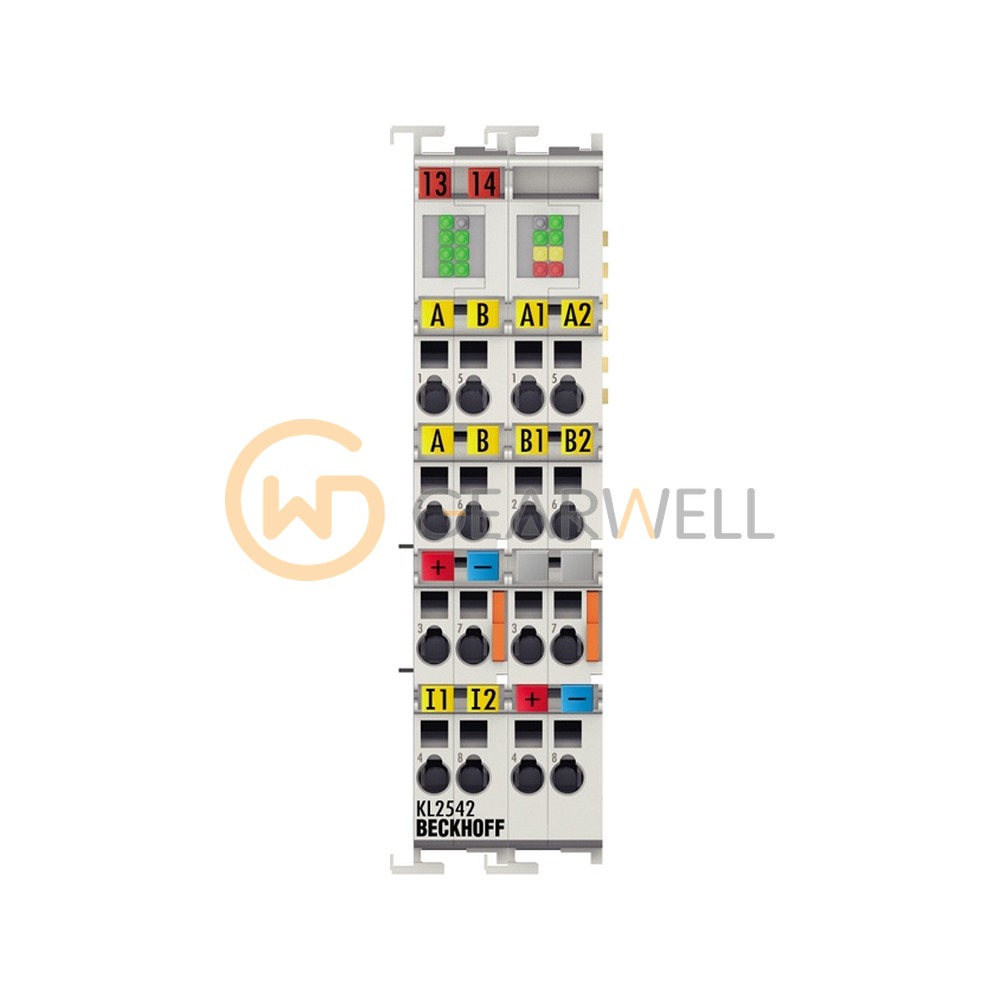

BECKHOFF KL2542 2-Channel DC Motor Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2542
- GEARWELL SKU
- GWP-000008190
- Category
- PLCs & I/O
Key specifications
- Load type
- DC brush motor, inductive
- Duty cycle
- 0…100% (voltage-controlled)
- Resolution
- max. 12 bit current, 16 bit speed
- Number of outputs
- 2
- Rated load voltage
- 8…48 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2542 is a 2-channel DC motor output terminal in the Bus Terminal system for DC brush motors and inductive loads at 8 to 48 V DC, delivering 2 x 3.5 A for both channels together, short-circuit and thermal-overload proof. It works with a PWM clock frequency of 35 kHz (180° phase shift) and a duty cycle of 0 to 100 %, with up to 12-bit current and 16-bit speed resolution; motors are adapted via the controller registers or the KS2000 configuration software. It has 500 V isolation between K-bus and field potential, draws typically 100 mA from the K-bus and is rated IP20 for 0 to 55 °C. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2542 2-Channel DC Motor Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2542 |
| Category | PLCs & I/O |
| Load type | DC brush motor, inductive |
| Duty cycle | 0…100% (voltage-controlled) |
| Resolution | max. 12 bit current, 16 bit speed |
| Number of outputs | 2 |
| Rated load voltage | 8…48 V DC |
| PWM clock frequency | 35 kHz with 180° phase shift each |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption K-bus | typ. 100 mA |
