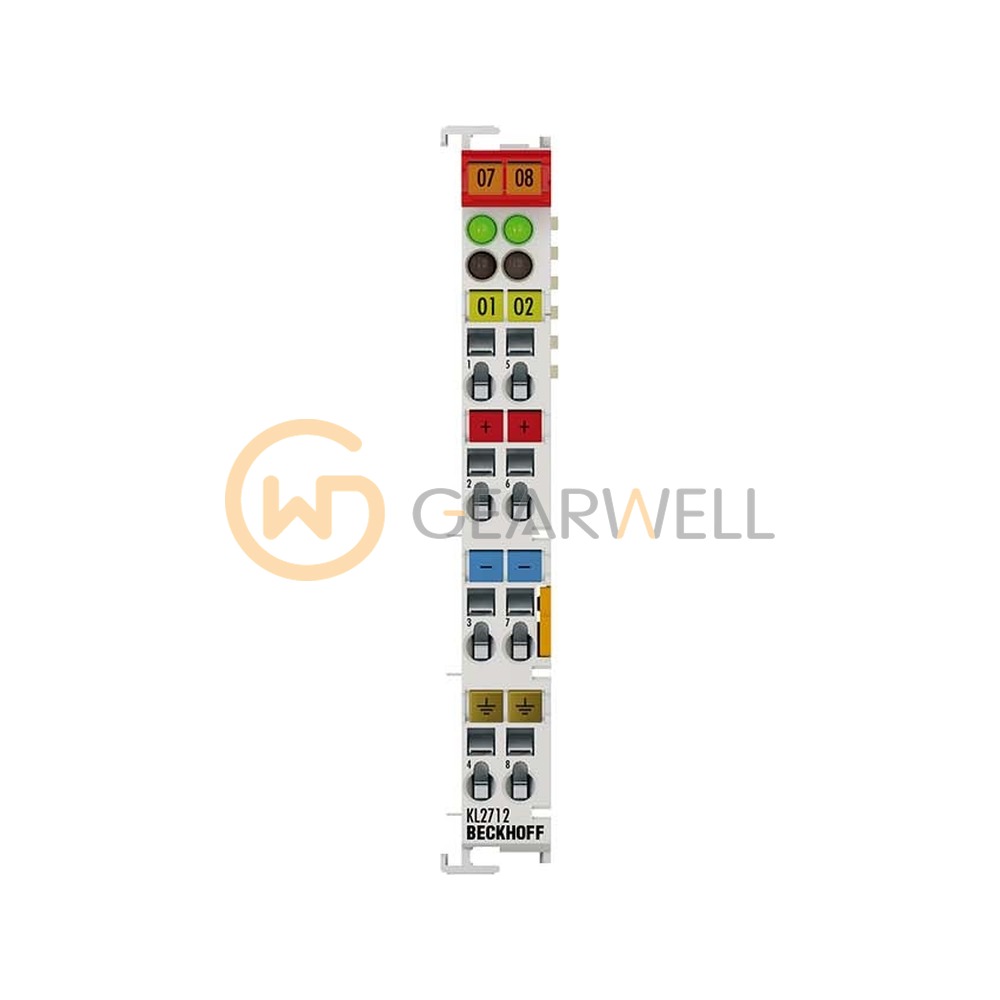

BECKHOFF KL2712 2-Channel TRIAC Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2712
- GEARWELL SKU
- GWP-000008194
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive
- Peak current
- 40 A (16 ms), 1.5 A (30 s)
- Nominal voltage
- 12…230 V AC
- Number of outputs
- 2 x make contacts
- Max. output current
- 2 x 0.025…0.5 A per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2712 is a 2-channel TRIAC output Bus Terminal (K-bus) for 12 to 230 V AC loads of 0.025 to 0.5 A per channel. It is suited, for example, to reversing motors such as blinds. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2712 2-Channel TRIAC Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2712 |
| Category | PLCs & I/O |
| Load type | resistive, inductive |
| Peak current | 40 A (16 ms), 1.5 A (30 s) |
| Nominal voltage | 12…230 V AC |
| Number of outputs | 2 x make contacts |
| Max. output current | 2 x 0.025…0.5 A per channel |
| Connection technology | 4-wire |
| Rotating field frequency | 47…63 Hz |
| Surge voltage protection | > 275 V AC |
