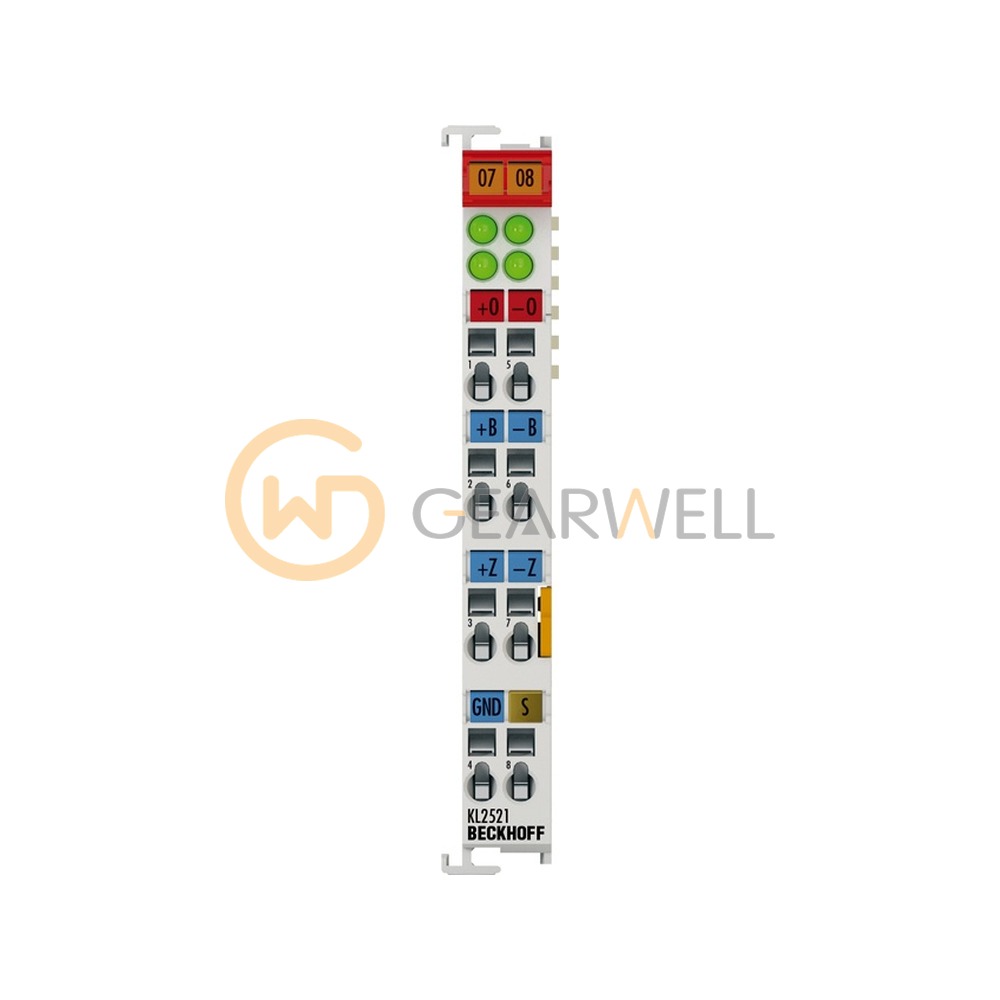

BECKHOFF KL2521 1-Channel Pulse Train Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2521
- GEARWELL SKU
- GWP-000008188
- Category
- PLCs & I/O
Key specifications
- Load type
- RS422 input
- Duty cycle
- 50% (±20%)
- Resolution
- max. 15 bit
- Nominal voltage
- RS422 level
- Number of inputs
- 2 (+T, +Z)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2521 is a 1-channel pulse train output Bus Terminal (K-bus) with RS422 outputs, which can also simulate an incremental encoder. The output frequency is adjustable from 1 to 500 kHz. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2521 1-Channel Pulse Train Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2521 |
| Category | PLCs & I/O |
| Load type | RS422 input |
| Duty cycle | 50% (±20%) |
| Resolution | max. 15 bit |
| Nominal voltage | RS422 level |
| Number of inputs | 2 (+T, +Z) |
| Max. output current | RS422 specification |
| PWM clock frequency | 1…500 kHz, 50 kHz default |
| Electrical isolation | 500 V (K-bus/field potential) |
