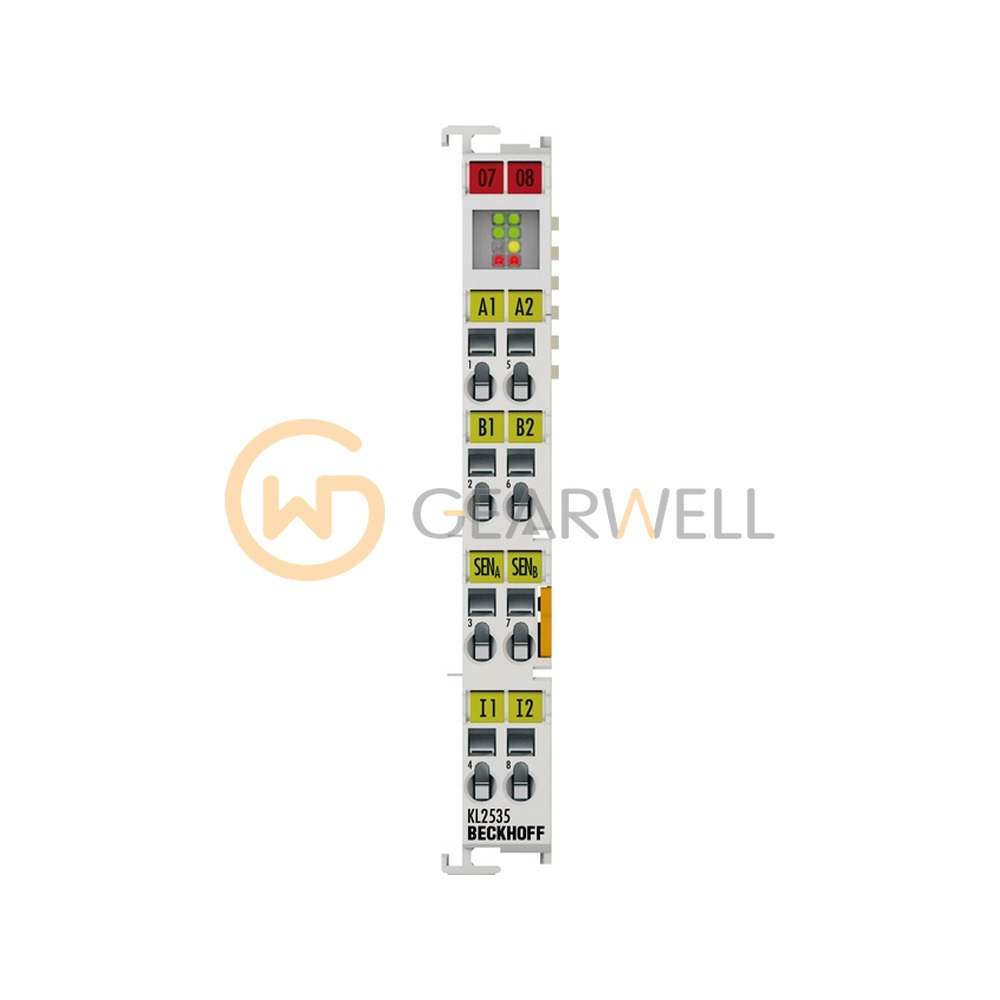

BECKHOFF KL2535 2-Channel PWM Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2535
- GEARWELL SKU
- GWP-000008189
- Category
- PLCs & I/O
Key specifications
- Load type
- inductive > 1 mH, valves, coils
- Duty cycle
- 0…100% (current-controlled)
- Resolution
- max. 12 bit
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2535 is a 2-channel current-controlled PWM output Bus Terminal (K-bus) for valves, coils and other inductive loads, with ±1 A per channel at 24 V DC and a 36 kHz PWM clock. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2535 2-Channel PWM Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2535 |
| Category | PLCs & I/O |
| Load type | inductive > 1 mH, valves, coils |
| Duty cycle | 0…100% (current-controlled) |
| Resolution | max. 12 bit |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| PWM clock frequency | 36 kHz |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption power contacts | load only |
