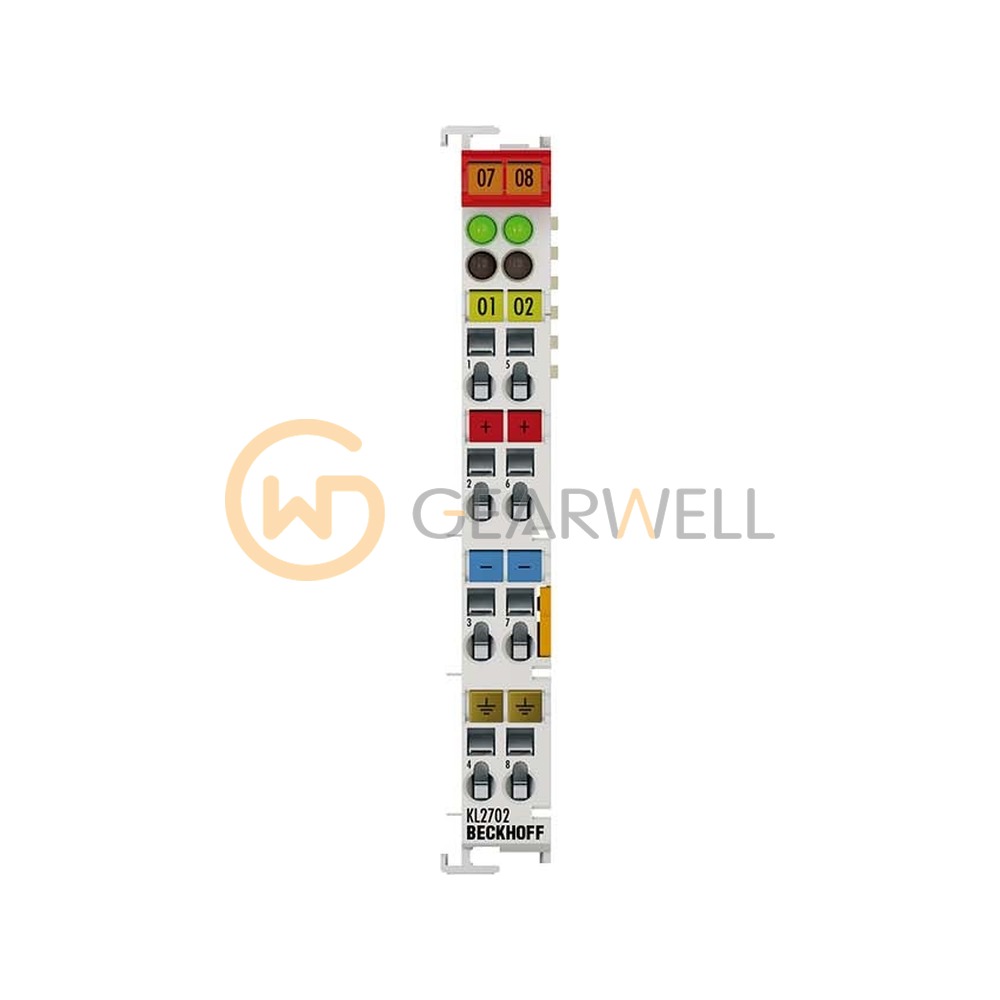

BECKHOFF KL2702 2-Channel Solid-State Relay Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2702
- GEARWELL SKU
- GWP-000008193
- Category
- PLCs & I/O
Key specifications
- Peak current
- 0.5 A (20 s), 1.5 A (100 ms)
- Switch-on time
- 4…6 ms
- Nominal voltage
- 0…230 V AC/DC (DC…100 Hz)
- Switch-off time
- 0.05…0.1 ms
- Number of outputs
- 2 x make contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2702 is a 2-channel solid-state relay output Bus Terminal (K-bus) with make contacts for 0 to 230 V AC/DC. Each channel carries up to 1.5 A continuous load. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2702 2-Channel Solid-State Relay Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2702 |
| Category | PLCs & I/O |
| Peak current | 0.5 A (20 s), 1.5 A (100 ms) |
| Switch-on time | 4…6 ms |
| Nominal voltage | 0…230 V AC/DC (DC…100 Hz) |
| Switch-off time | 0.05…0.1 ms |
| Number of outputs | 2 x make contacts |
| Contact resistance | typ. 2.1 Ω, 3.2 Ω max. |
| Max. output current | 0.3 A steady load per channel |
| Current consumption K-bus | typ. 10 mA |
