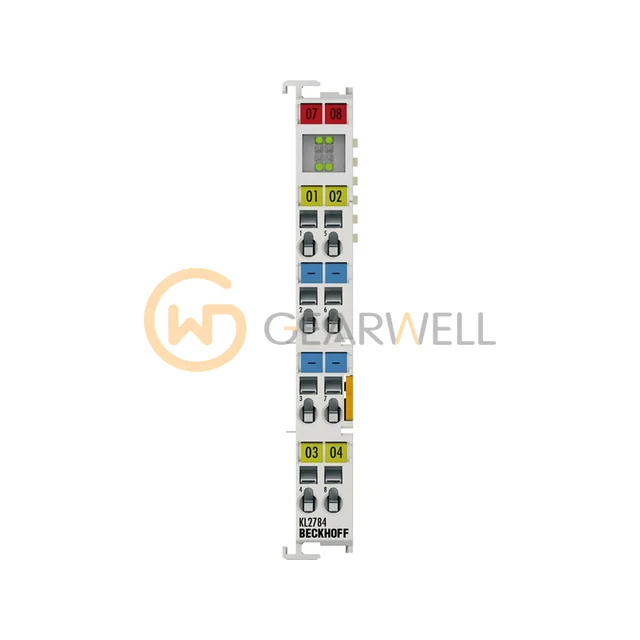

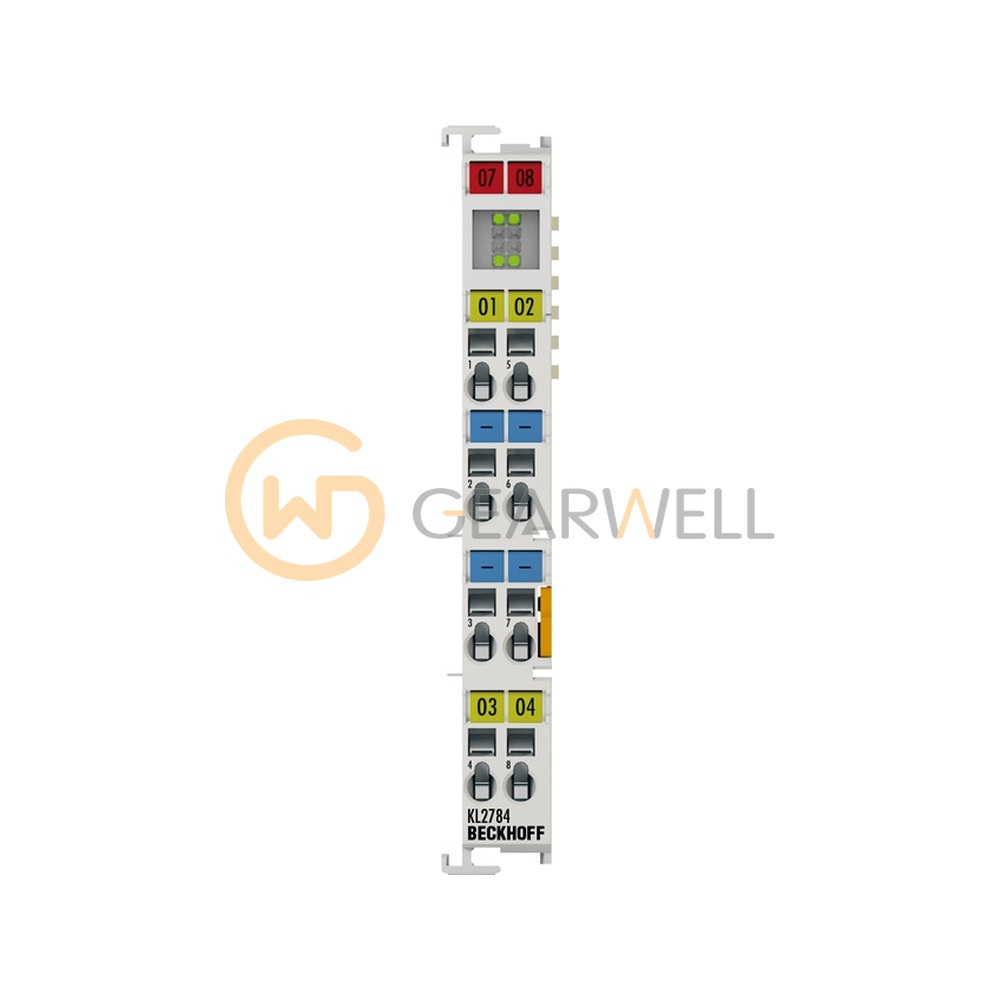

BECKHOFF KL2784 4-Channel Solid-State Relay Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2784
- GEARWELL SKU
- GWP-000008195
- Category
- PLCs & I/O
Key specifications
- Peak current
- 5 A (100 ms), < 50 A (10 ms)
- Nominal voltage
- 0…30 V AC/DC (resistive load only: 0…48 V DC)
- Breakdown voltage
- 80 V
- Number of outputs
- 4 x make contacts
- Max. output current
- 2 A per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2784 is a 4-channel solid-state relay output Bus Terminal (K-bus) with make contacts for 0 to 30 V AC/DC (0 to 48 V DC for resistive loads), up to 2 A per channel. The outputs are not short-circuit proof. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2784 4-Channel Solid-State Relay Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2784 |
| Category | PLCs & I/O |
| Peak current | 5 A (100 ms), < 50 A (10 ms) |
| Nominal voltage | 0…30 V AC/DC (resistive load only: 0…48 V DC) |
| Breakdown voltage | 80 V |
| Number of outputs | 4 x make contacts |
| Max. output current | 2 A per channel |
| Electrical isolation | 500 V (K-bus/field potential) |
| Connection technology | 2-wire |
| Short-circuit current | not short-circuit proof, see peak current |
