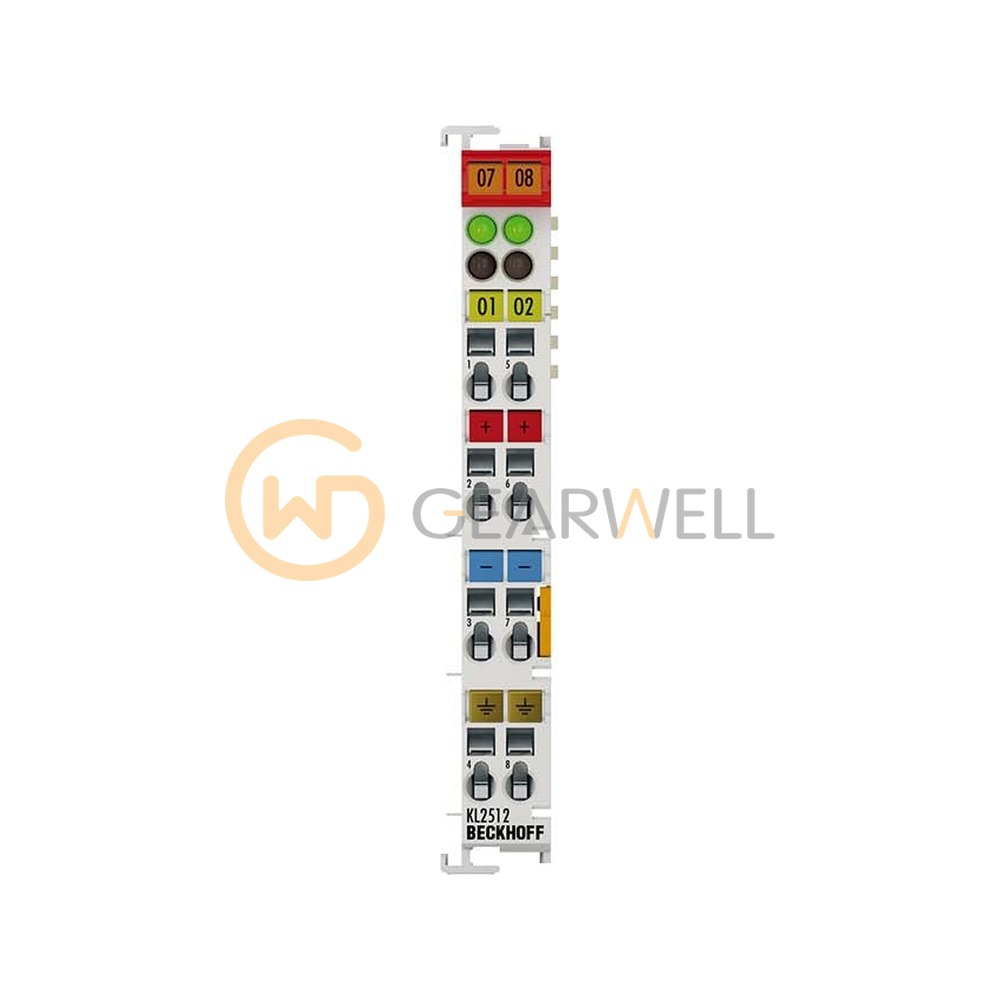

BECKHOFF KL2512 2-Channel PWM Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2512
- GEARWELL SKU
- GWP-000008187
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive
- Duty cycle
- 0…100%
- Resolution
- max. 10 bit
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2512 is a 2-channel PWM output Bus Terminal (K-bus) with ground-switching 24 V DC outputs of up to 1.5 A for resistive loads. The PWM frequency is adjustable from 1 Hz to 20 kHz, with 0 to 100 % duty cycle. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2512 2-Channel PWM Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2512 |
| Category | PLCs & I/O |
| Load type | resistive |
| Duty cycle | 0…100% |
| Resolution | max. 10 bit |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Max. output current | 1.5 A |
| PWM clock frequency | 1 Hz…20 kHz, 250 Hz default |
| Electrical isolation | 500 V (K-bus/field potential) |
