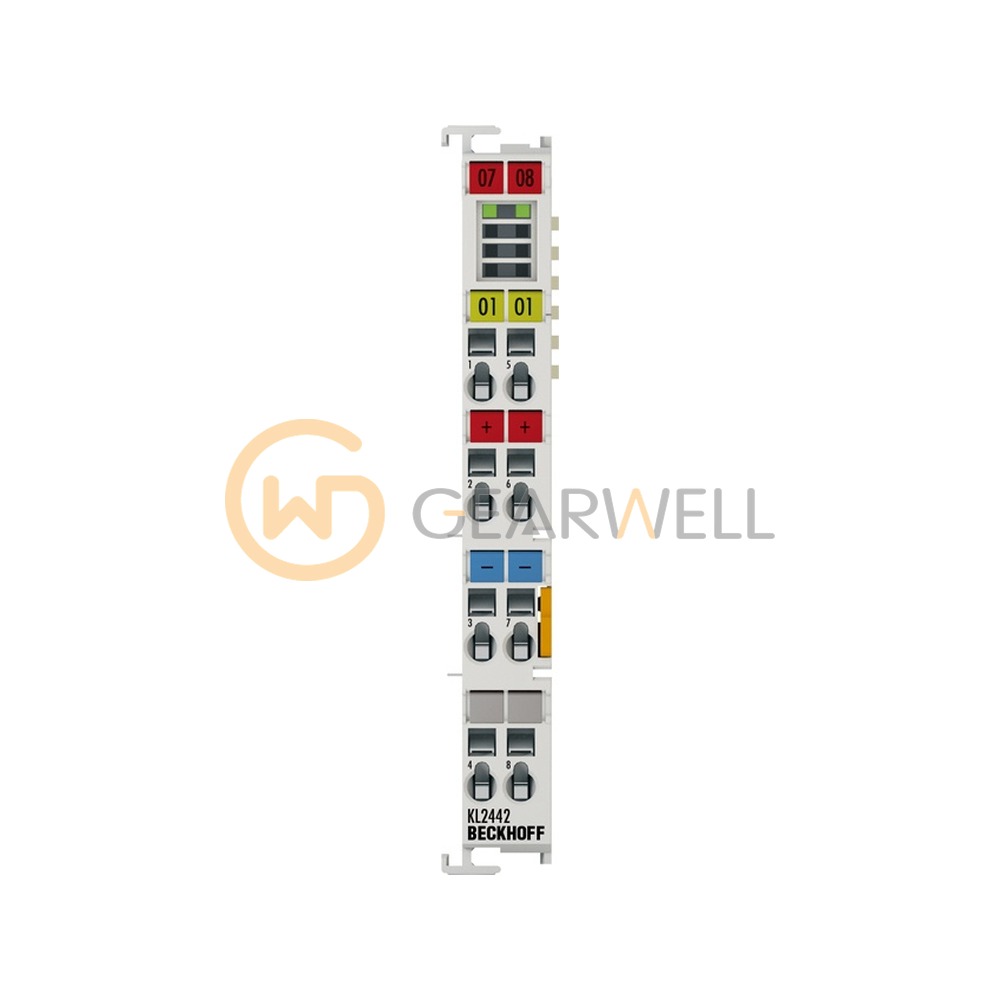

BECKHOFF KL2442 2-Channel Digital Output Bus Terminal
- Brand
- BECKHOFF
- Model
- KL2442
- GEARWELL SKU
- GWP-000008185
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 2
- Max. output current
- 4.0 A (short-circuit proof) per channel, 8 A for parallel connection
- Switching-off energy
- no data
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL2442 is a 2-channel digital output Bus Terminal (K-bus), switching 24 V DC loads at up to 4 A per channel with 3-wire connection. The two outputs can be connected in parallel for 8 A, and are short-circuit proof. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL2442 2-Channel Digital Output Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL2442 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 2 |
| Max. output current | 4.0 A (short-circuit proof) per channel, 8 A for parallel connection |
| Switching-off energy | no data |
| Connection technology | 3-wire |
| Short-circuit current | < 70 A |
| Reverse polarity protection | yes |
