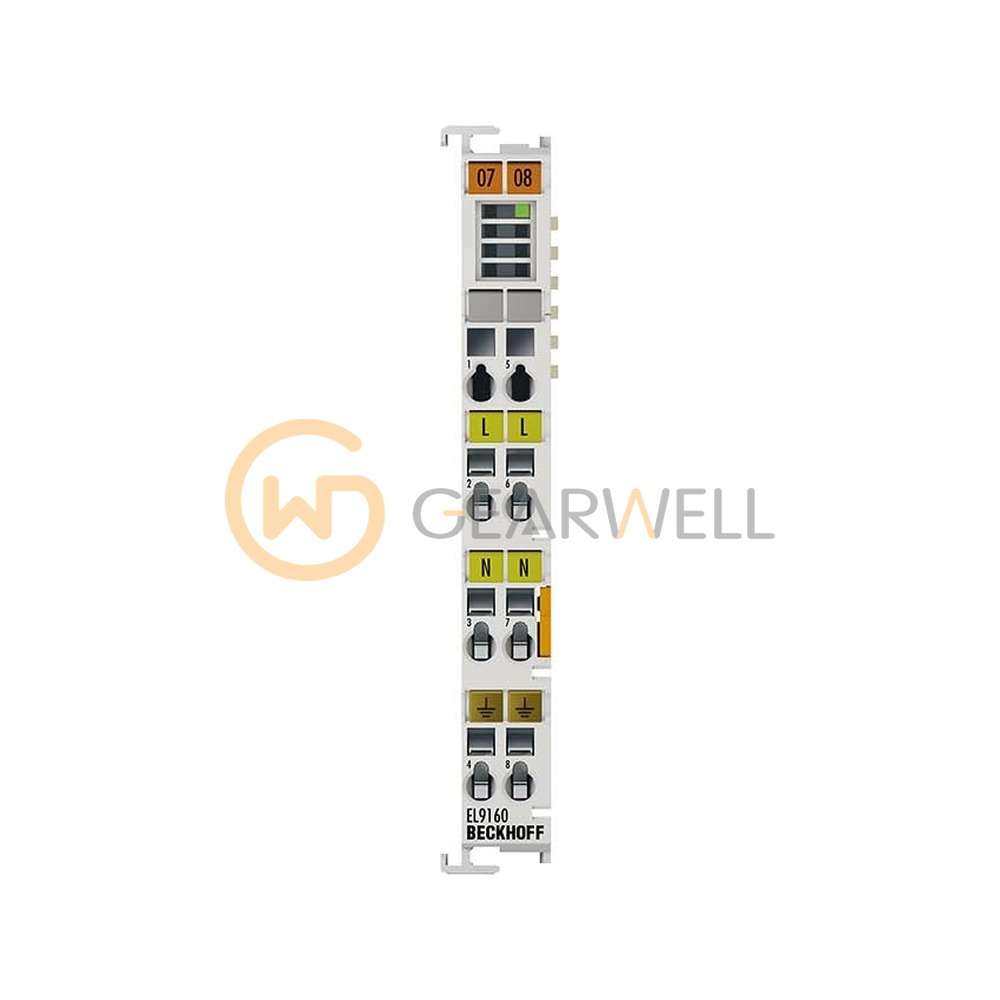

BECKHOFF EL9160 EtherCAT Potential Supply Terminal
- Brand
- BECKHOFF
- Model
- EL9160
- GEARWELL SKU
- GWP-000008112
- Category
- PLCs & I/O
Key specifications
- Power LED
- green
- Technology
- potential supply terminal with diagnostics
- Current load
- ≤ 10 A
- Nominal voltage
- 120/230 V AC
- Reported to E-bus
- yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9160 is a 120/230 V AC potential supply terminal with diagnostics for EtherCAT, feeding up to 10 A to the power contacts. The supply status is reported in the process image. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9160 EtherCAT Potential Supply Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9160 |
| Category | PLCs & I/O |
| Power LED | green |
| Technology | potential supply terminal with diagnostics |
| Current load | ≤ 10 A |
| Nominal voltage | 120/230 V AC |
| Reported to E-bus | yes |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption E-bus | typ. 55 mA |
| Diagnostics in the process image | yes |
