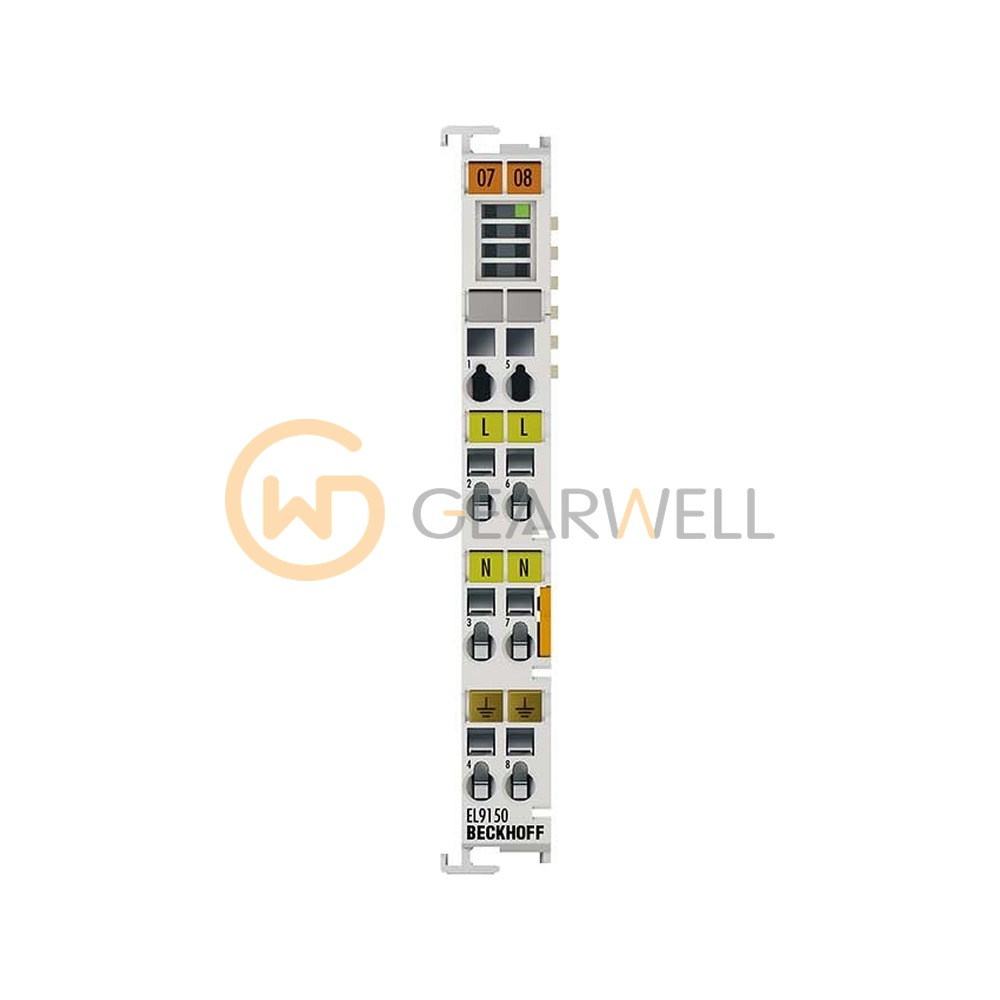

BECKHOFF EL9150 EtherCAT Potential Supply Terminal
- Brand
- BECKHOFF
- Model
- EL9150
- GEARWELL SKU
- GWP-000008111
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 50 g
- Power LED
- green
- Technology
- potential supply terminal
- Current load
- ≤ 10 A
- Housing width
- 12 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9150 is a 120/230 V AC potential supply terminal for EtherCAT, feeding up to 10 A to the power contacts within a terminal station. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9150 EtherCAT Potential Supply Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9150 |
| Category | PLCs & I/O |
| Weight | approx. 50 g |
| Power LED | green |
| Technology | potential supply terminal |
| Current load | ≤ 10 A |
| Housing width | 12 mm |
| Nominal voltage | 120/230 V AC |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 0 |
