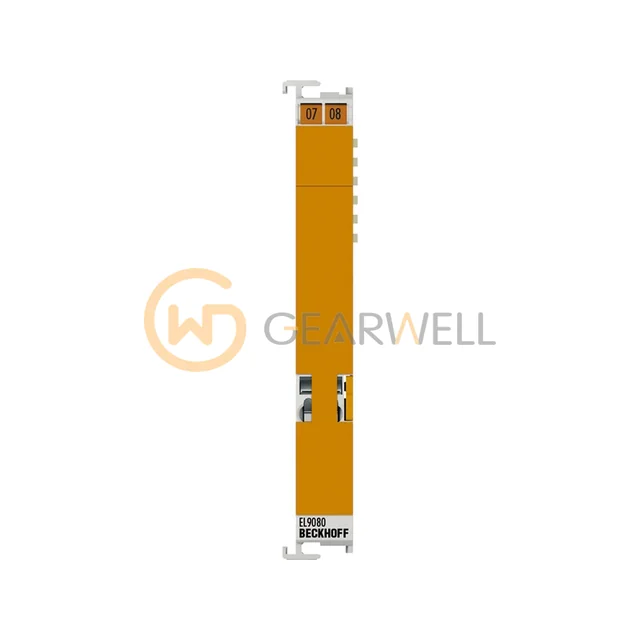

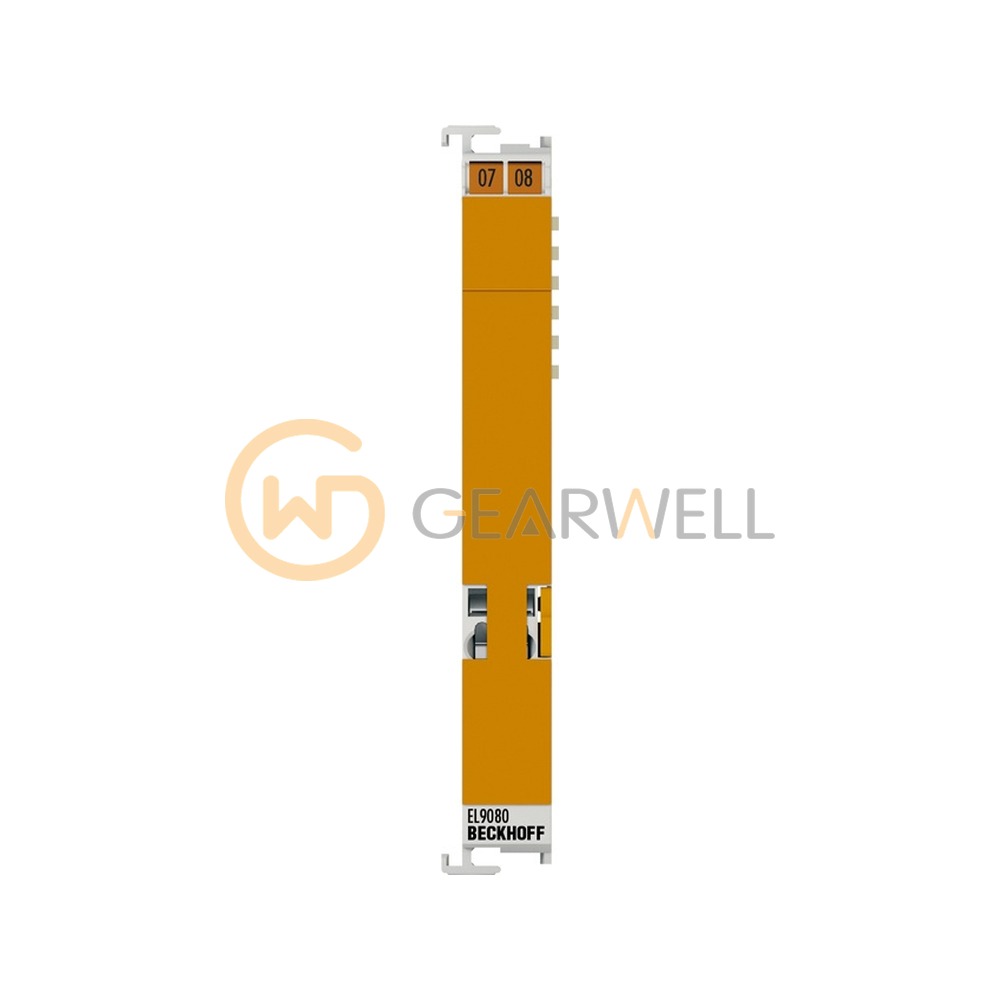

BECKHOFF EL9080 EtherCAT Potential Group Separation Terminal
- Brand
- BECKHOFF
- Model
- EL9080
- GEARWELL SKU
- GWP-000008110
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 50 g
- Technology
- separation terminal
- Housing width
- 12 mm
- Electrical isolation
- 500 V (E-bus/field potential)
- Operating temperature
- -25…+60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9080 is a separation terminal for EtherCAT stations, inserted between two potential groups (for example 230 V AC and 24 V DC) to separate and mark them while passing the E-bus through. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9080 EtherCAT Potential Group Separation Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9080 |
| Category | PLCs & I/O |
| Weight | approx. 50 g |
| Technology | separation terminal |
| Housing width | 12 mm |
| Electrical isolation | 500 V (E-bus/field potential) |
| Operating temperature | -25…+60 °C |
| Bit width in the process image | 0 |
