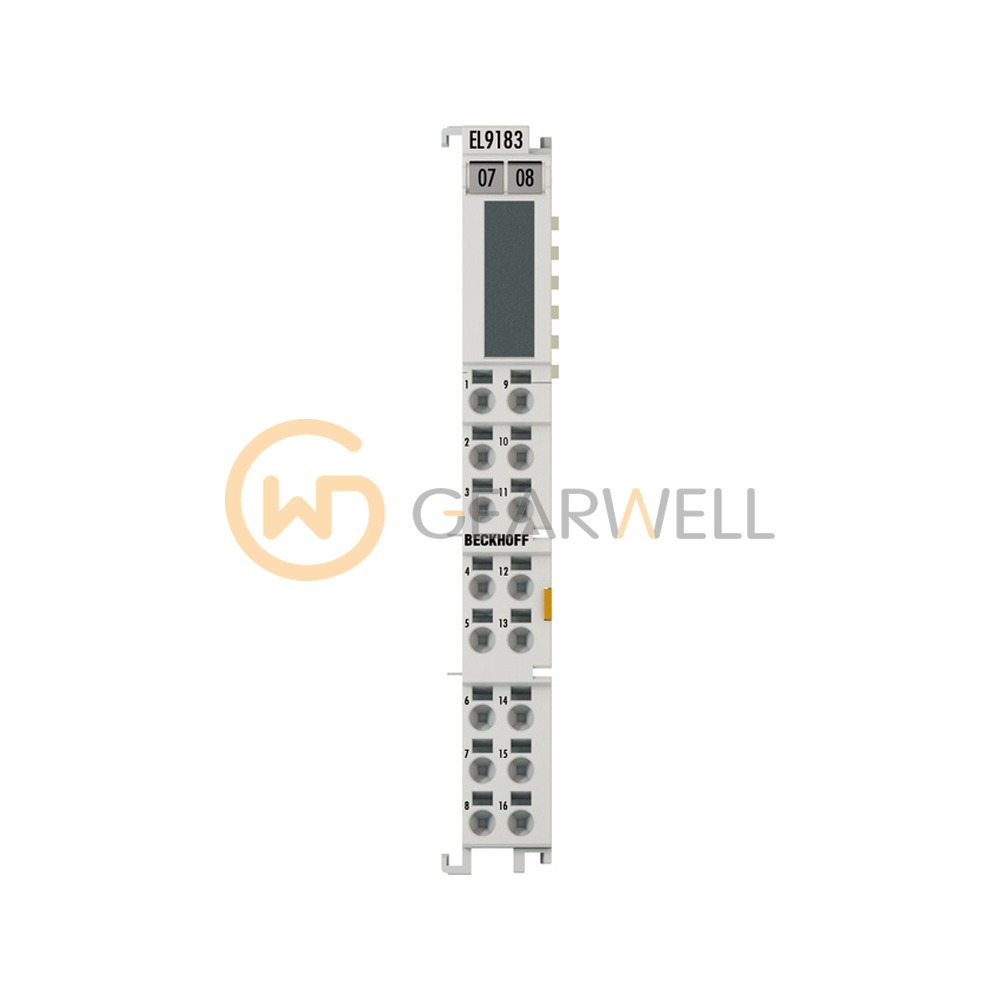

BECKHOFF EL9183 EtherCAT Potential Distribution Terminal
- Brand
- BECKHOFF
- Model
- EL9183
- GEARWELL SKU
- GWP-000008114
- Category
- PLCs & I/O
Key specifications
- Technology
- potential distribution terminal
- Current load
- max. 10 A
- Nominal voltage
- ≤ 60 V AC/DC
- E-bus looped through
- yes
- Electrical isolation
- 500 V (E-bus/field potential)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9183 is a potential distribution terminal for EtherCAT stations with 16 terminal points on one potential (up to 60 V AC/DC, 10 A). It passes the E-bus and power contacts through. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9183 EtherCAT Potential Distribution Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9183 |
| Category | PLCs & I/O |
| Technology | potential distribution terminal |
| Current load | max. 10 A |
| Nominal voltage | ≤ 60 V AC/DC |
| E-bus looped through | yes |
| Electrical isolation | 500 V (E-bus/field potential) |
| Number of separate potentials | 1 |
| Power contacts looped through | yes (2 power contacts) |
| Terminal points per potential | 16 |
