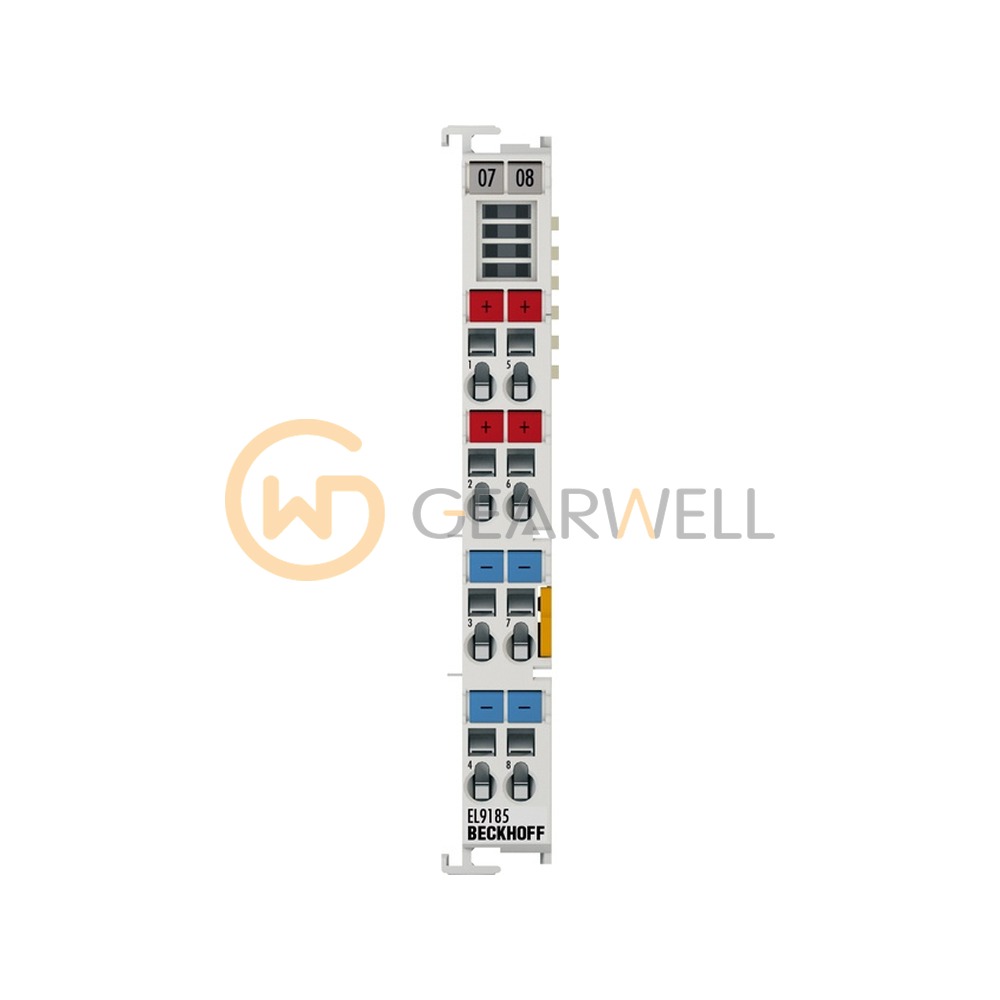

BECKHOFF EL9185 EtherCAT Potential Distribution Terminal
- Brand
- BECKHOFF
- Model
- EL9185
- GEARWELL SKU
- GWP-000008115
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 50 g
- Technology
- potential distribution terminal
- Current load
- ≤ 10 A
- Housing width
- 12 mm
- Nominal voltage
- arbitrary up to 230 V AC/DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9185 is a potential distribution terminal for EtherCAT stations with 4 x 24 V DC and 4 x 0 V terminal points taken from the power contacts, for up to 230 V AC/DC and 10 A. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9185 EtherCAT Potential Distribution Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9185 |
| Category | PLCs & I/O |
| Weight | approx. 50 g |
| Technology | potential distribution terminal |
| Current load | ≤ 10 A |
| Housing width | 12 mm |
| Nominal voltage | arbitrary up to 230 V AC/DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 0 |
| Connection facility to additional power contact | 4 |
