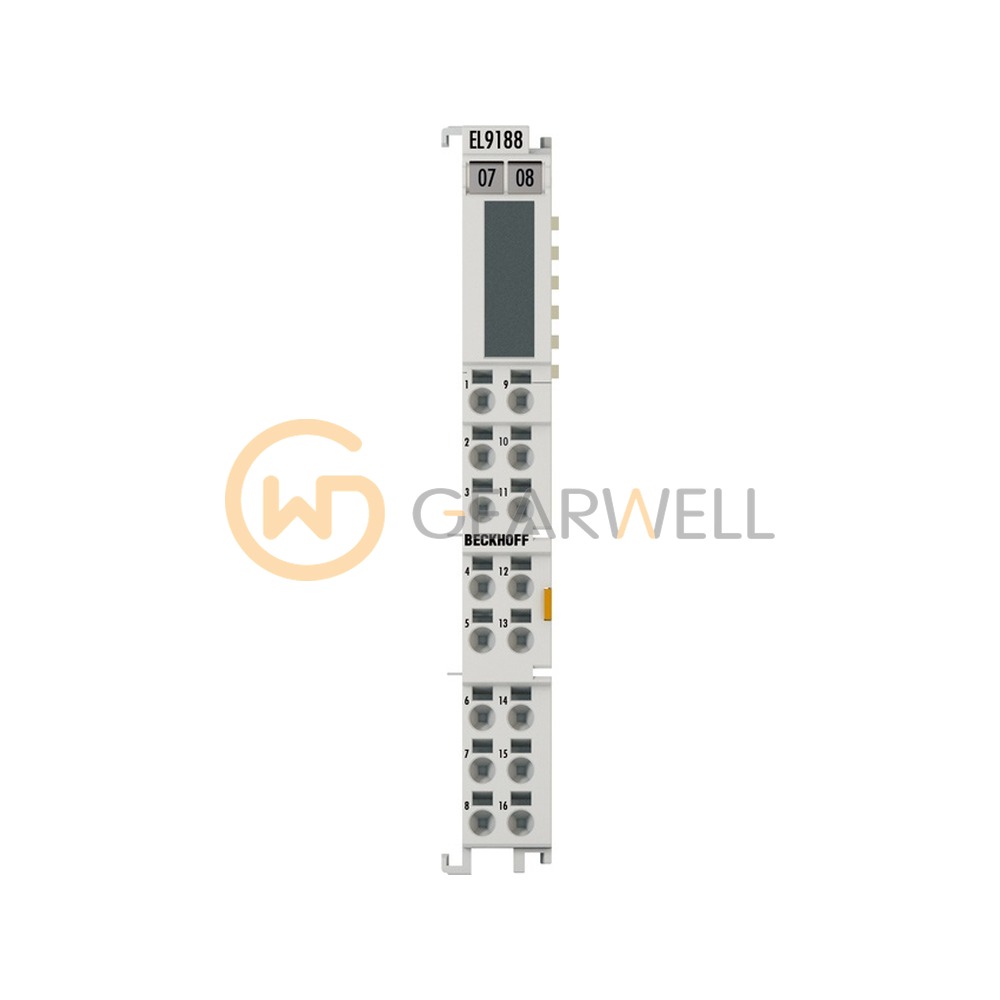

BECKHOFF EL9188 EtherCAT Potential Distribution Terminal
- Brand
- BECKHOFF
- Model
- EL9188
- GEARWELL SKU
- GWP-000008116
- Category
- PLCs & I/O
Key specifications
- Technology
- potential distribution terminal
- Current load
- ≤ 10 A
- Housing width
- 12 mm
- Nominal voltage
- ≤ 60 V
- Number of outputs
- e.g.: 16 x 24 V contact
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9188 is a potential distribution terminal for EtherCAT stations with 16 terminal points connected to the 24 V DC power contact, using direct plug-in wiring, for up to 10 A. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9188 EtherCAT Potential Distribution Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9188 |
| Category | PLCs & I/O |
| Technology | potential distribution terminal |
| Current load | ≤ 10 A |
| Housing width | 12 mm |
| Nominal voltage | ≤ 60 V |
| Number of outputs | e.g.: 16 x 24 V contact |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 0 |
| Connection facility to additional power contact | 16 |
