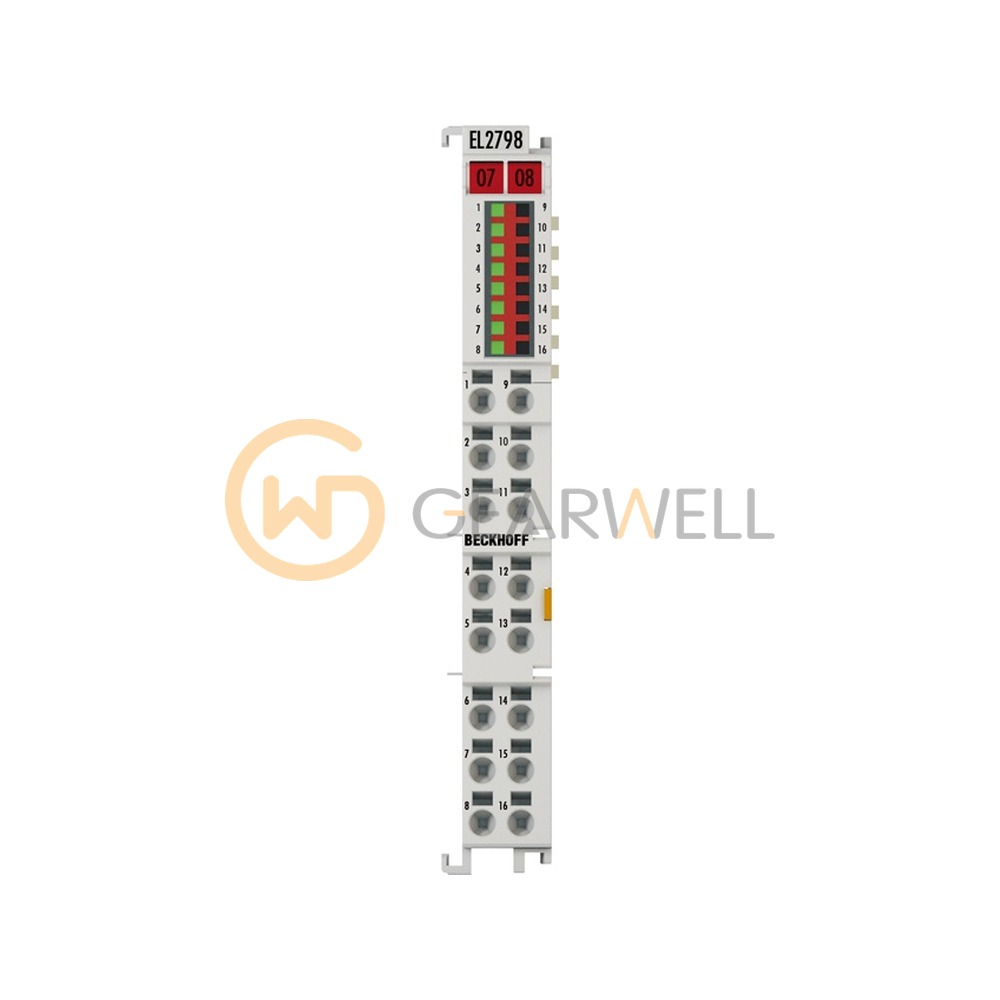

BECKHOFF EL2798 EtherCAT 8-Channel Solid-State Relay Terminal
- Brand
- BECKHOFF
- Model
- EL2798
- GEARWELL SKU
- GWP-000007988
- Category
- PLCs & I/O
Key specifications
- Peak current
- 5 A (100 ms), < 50 A (10 ms)
- Nominal voltage
- 0…30 V AC/DC (resistive load only: 0…48 V DC)
- Switching times
- typ. T ON : 1.8 ms, T OFF : typ. 30 ms
- Breakdown voltage
- 80 V
- Number of outputs
- 8 x make contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2798 is an 8-channel solid-state relay output terminal for EtherCAT with potential-free make contacts for 0 to 30 V AC/DC (0 to 48 V DC for resistive loads). Each channel carries up to 2 A, 10 A in total; the outputs are not short-circuit proof. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2798 EtherCAT 8-Channel Solid-State Relay Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2798 |
| Category | PLCs & I/O |
| Peak current | 5 A (100 ms), < 50 A (10 ms) |
| Nominal voltage | 0…30 V AC/DC (resistive load only: 0…48 V DC) |
| Switching times | typ. T ON : 1.8 ms, T OFF : typ. 30 ms |
| Breakdown voltage | 80 V |
| Number of outputs | 8 x make contacts |
| Max. output current | 2 A per channel, ∑ 10 A |
| Connection technology | 2-wire |
| Short-circuit current | not short-circuit proof, see peak current |
