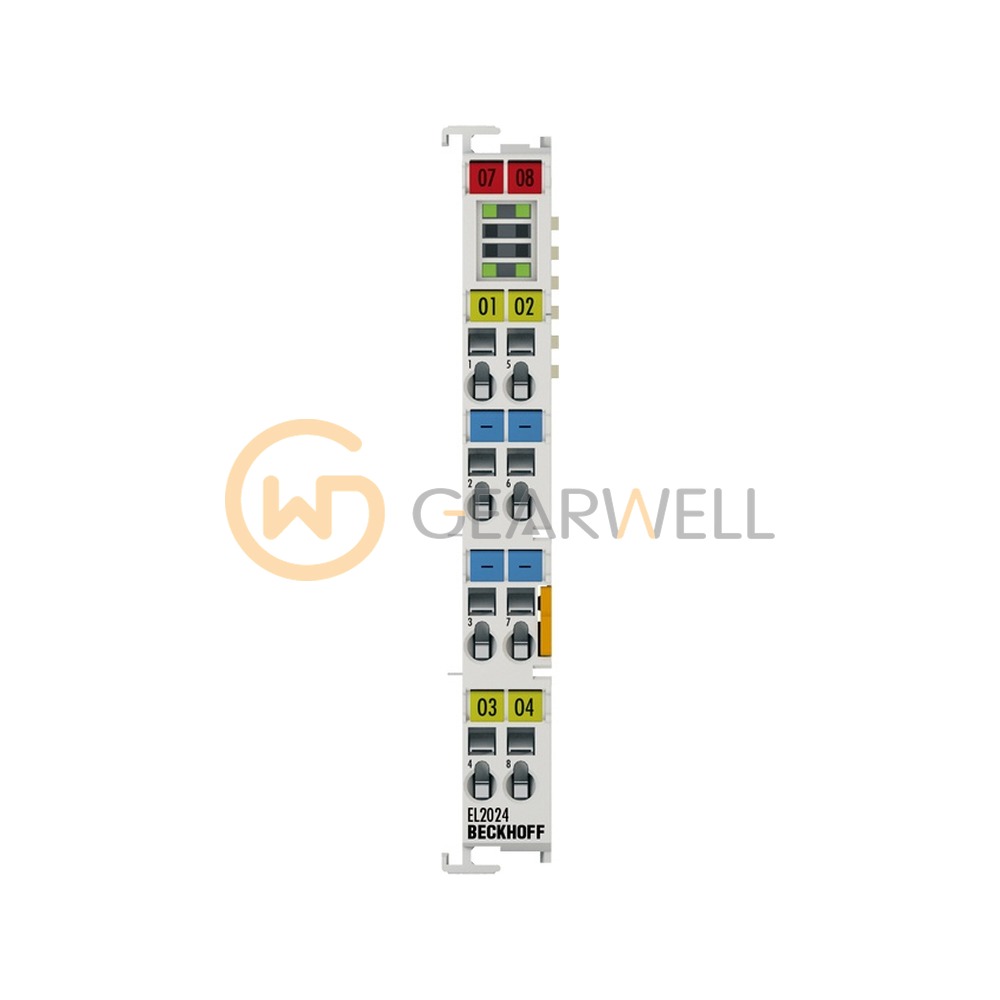

BECKHOFF EL2024 EtherCAT 4-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2024
- GEARWELL SKU
- GWP-000007976
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 4
- Max. output current
- 2.0 A (short-circuit proof) per channel
- Switching-off energy
- < 1.7 J/channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2024 is a 4-channel digital output terminal for EtherCAT for higher 24 V DC loads, up to 2 A per channel (short-circuit proof). It drives resistive, inductive and lamp loads, uses 2-wire connection and draws typically 120 mA from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2024 EtherCAT 4-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2024 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 4 |
| Max. output current | 2.0 A (short-circuit proof) per channel |
| Switching-off energy | < 1.7 J/channel |
| Connection technology | 2-wire |
| Short-circuit current | typ. < 70 A |
| Reverse polarity protection | yes |
