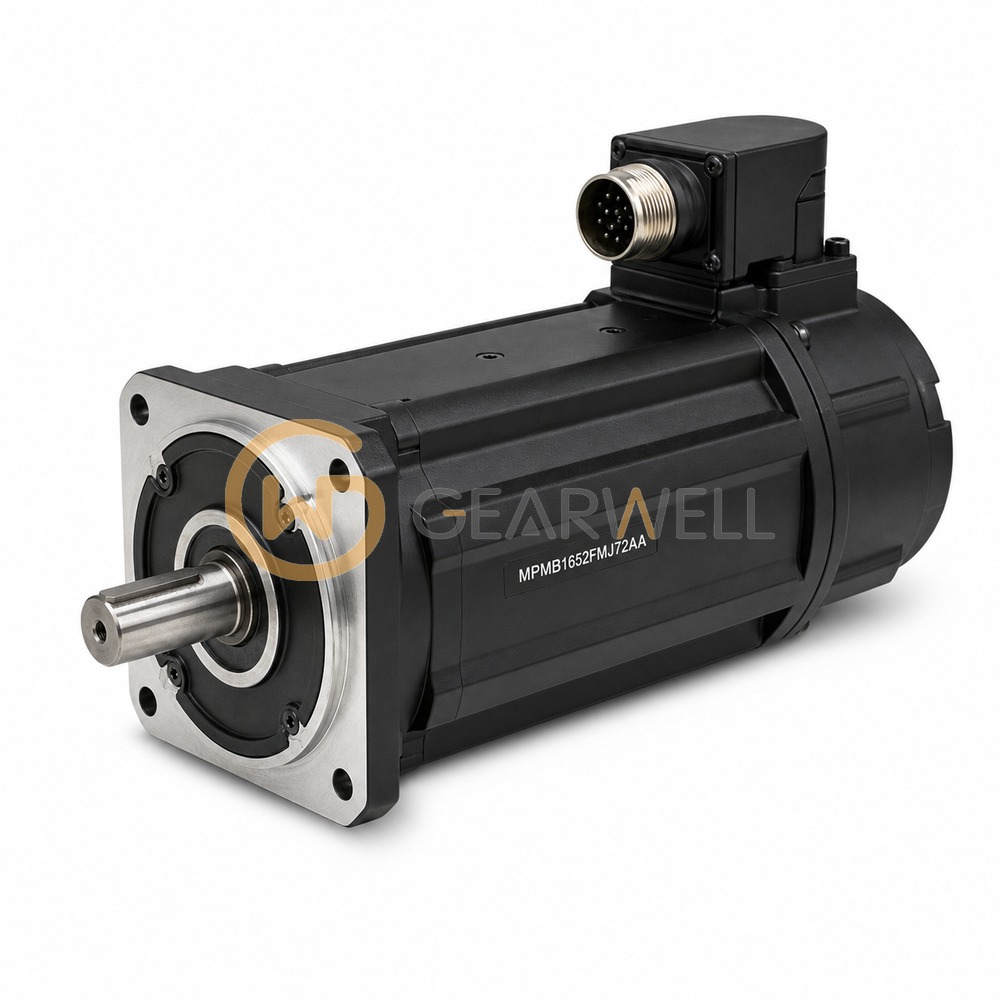

Allen-Bradley MPMB1652FMJ72AA MP-Series MPM Rotary Servo Motor

Product overview

The Allen-Bradley MPM-B1652F-MJ72AA is a Kinetix MPM medium-inertia servo motor (MPM-B1652F) for the 400V class with a 165 mm frame and 2 magnet stacks, a base speed of 3000 rpm, a rated speed of 3500 rpm and a maximum speed of 4500 rpm. Continuous stall torque is 19.4 N·m, peak stall torque 48.0 N·m and rated output 4.30 kW. It has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, no brake and an IEC metric flange with free mounting holes (type FF).
