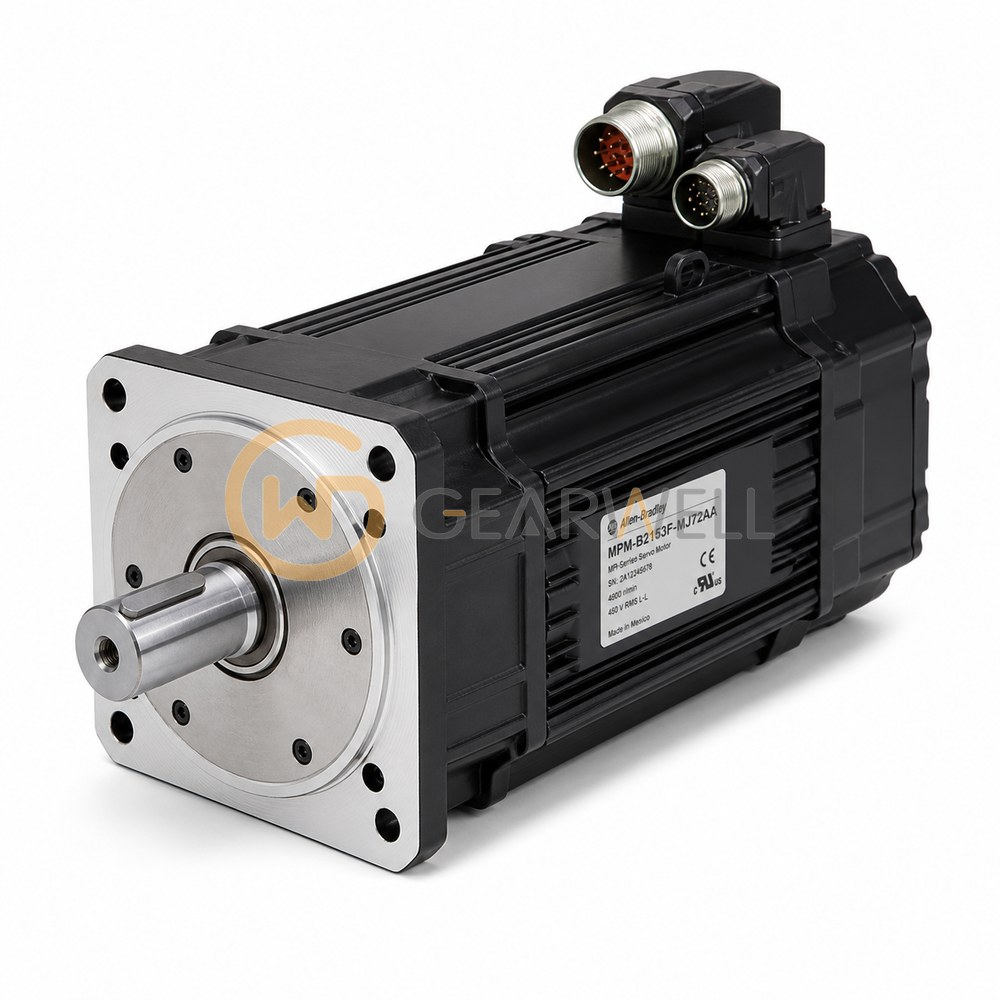

Allen-Bradley MPM-B2153F-MJ72AA Servo Motor
- Brand
- Allen-Bradley
- Model
- MPM-B2153F-MJ72AA
- GEARWELL SKU
- GWP-000002642
- Category
- Servo Systems
Key specifications
- Current
- 480 V AC
- Connectors
- SpeedTEC DIN Connector, Right
- Brake Option
- No Brake
- Factory Options
- Standard
- Magnet Stacks MPM
- 3 Stacks
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPM-B2153F-MJ72AA is a Kinetix MPM medium-inertia servo motor (MPM-B2153F) for the 400V class with a 215 mm frame and 3 magnet stacks, a base speed of 3000 rpm, a rated speed of 2000 rpm and a maximum speed of 3800 rpm. Continuous stall torque is 45.0 N·m, peak stall torque 99.0 N·m and rated output 7.20 kW. It has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, no brake and an IEC metric flange with free mounting holes (type FF).
Technical reference
| Product name | Allen-Bradley MPM-B2153F-MJ72AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPM-B2153F-MJ72AA |
| Category | Servo Systems |
| Current | 480 V AC |
| Connectors | SpeedTEC DIN Connector, Right |
| Brake Option | No Brake |
| Factory Options | Standard |
| Magnet Stacks MPM | 3 Stacks |
