Allen-Bradley MPMB2153FSJ72AA MP-Series Medium-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPMB2153FSJ72AA
- GEARWELL SKU
- GWP-000003689
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

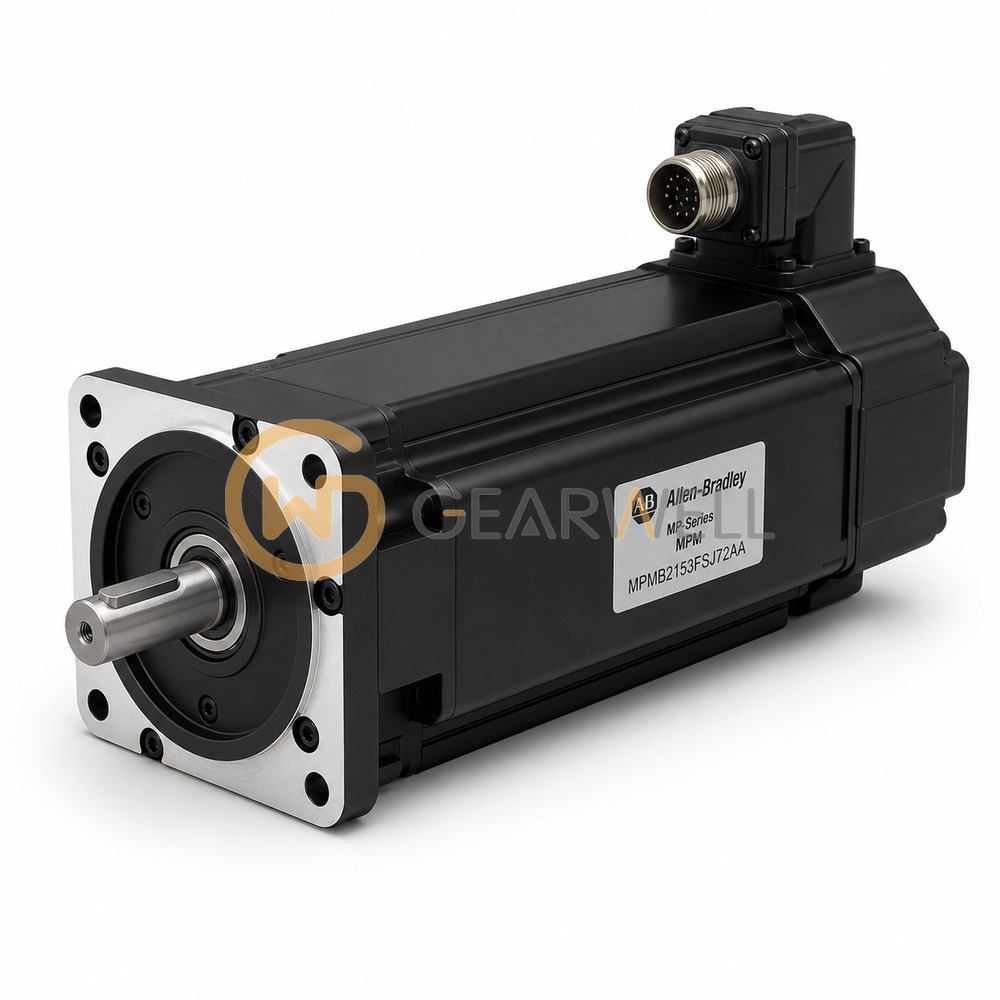

The Allen-Bradley MPM-B2153F-SJ72AA is a Kinetix MPM medium-inertia servo motor (MPM-B2153F) for the 400V class with a 215 mm frame and 3 magnet stacks, a base speed of 3000 rpm, a rated speed of 2000 rpm and a maximum speed of 3800 rpm. Continuous stall torque is 45.0 N·m, peak stall torque 99.0 N·m and rated output 7.20 kW. It has a 1024 sin/cos absolute single-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, no brake and an IEC metric flange with free mounting holes (type FF).
Technical reference
| Product name | Allen-Bradley MPMB2153FSJ72AA MP-Series Medium-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPMB2153FSJ72AA |
| Category | Servo Systems |
