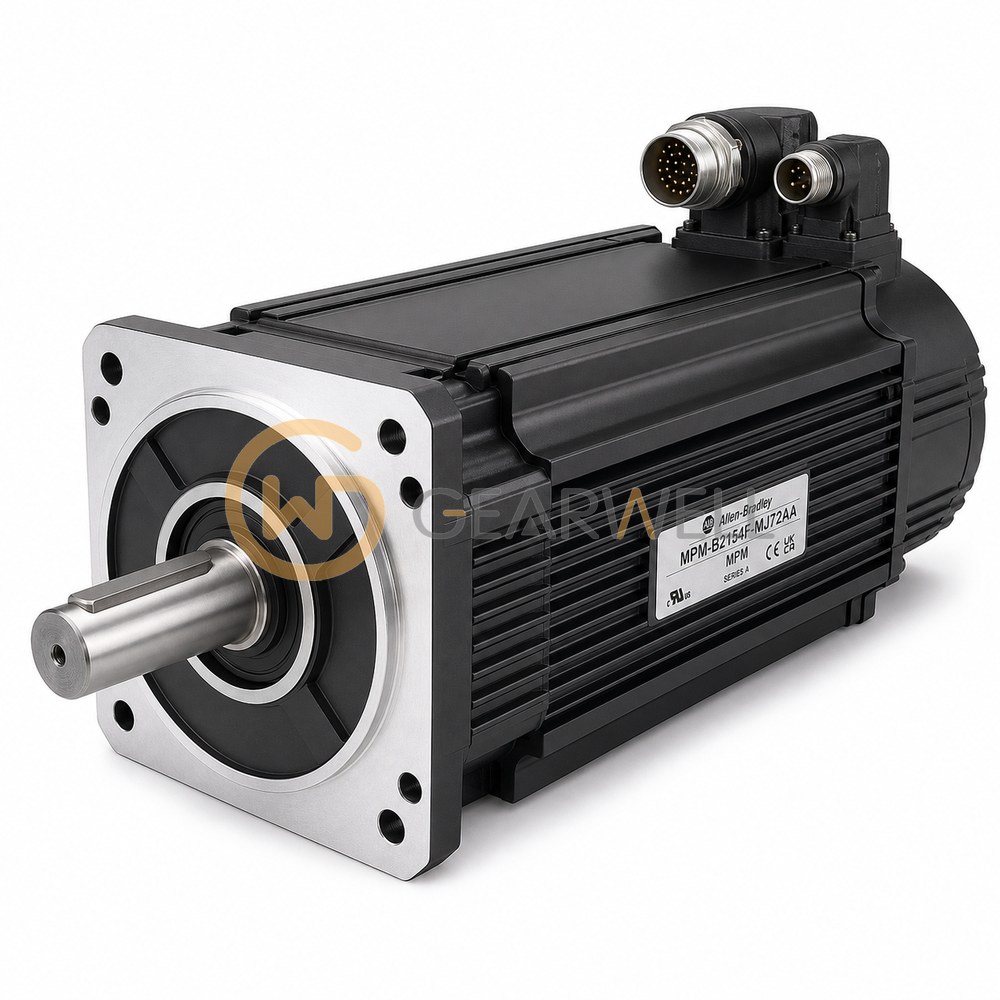

Allen-Bradley MPM-B2154F-MJ72AA Servo Motor
- Brand
- Allen-Bradley
- Model
- MPM-B2154F-MJ72AA
- GEARWELL SKU
- GWP-000002549
- Category
- Servo Systems
Key specifications
- Current
- 480 V AC
- Product type
- MP-Series MPM 480V AC Rotary Servo Motor
- Lifecycle status
- Active
- Product description
- Bulletin MPM - Medium-Inertia Servo Motors Product, 460 V, 3000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPM-B2154F-MJ72AA is a Kinetix MPM medium-inertia servo motor (MPM-B2154F) for the 400V class with a 215 mm frame and 4 magnet stacks, a base speed of 3000 rpm, a rated speed of 2000 rpm and a maximum speed of 3300 rpm. Continuous stall torque is 56.0 N·m, peak stall torque 88.0 N·m and rated output 7.50 kW. It has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, no brake and an IEC metric flange with free mounting holes (type FF).
Technical reference
| Product name | Allen-Bradley MPM-B2154F-MJ72AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPM-B2154F-MJ72AA |
| Category | Servo Systems |
| Current | 480 V AC |
| Product type | MP-Series MPM 480V AC Rotary Servo Motor |
| Lifecycle status | Active |
| Product description | Bulletin MPM - Medium-Inertia Servo Motors Product, 460 V, 3000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF) |
