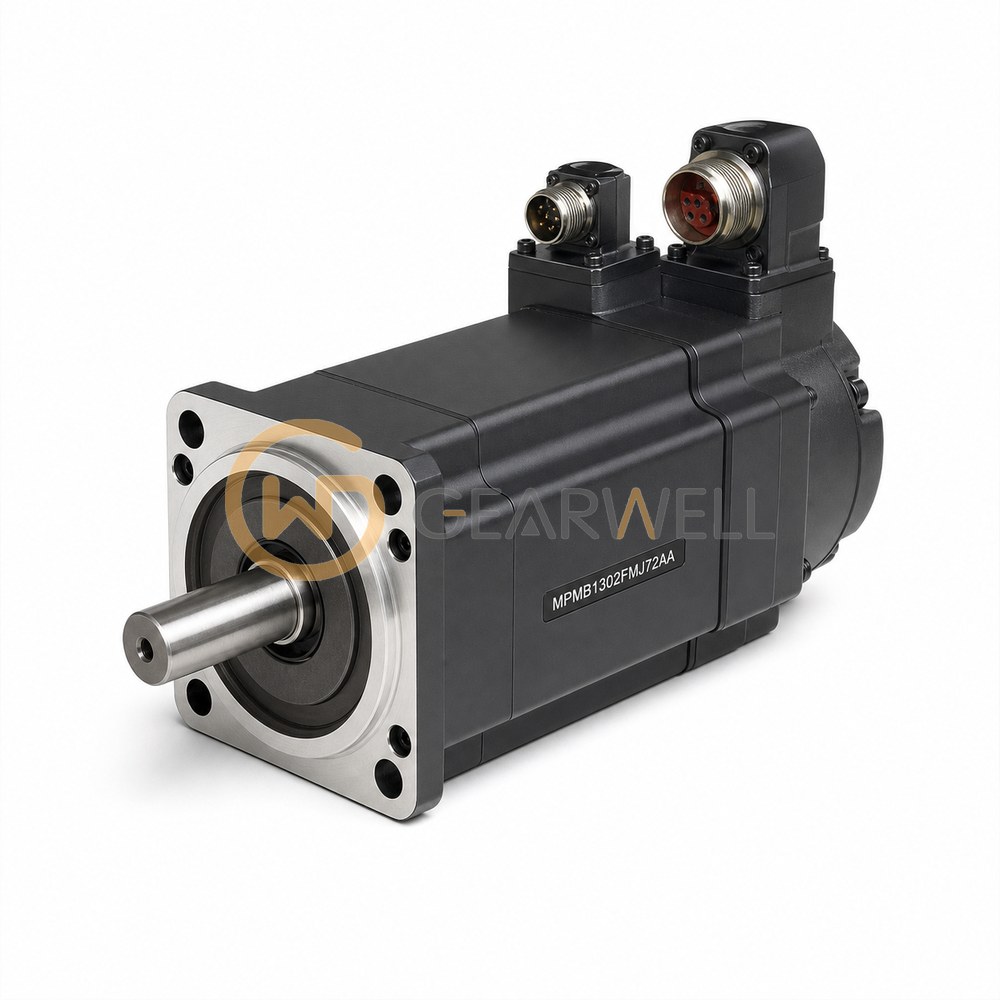

Allen-Bradley MPMB1302FMJ72AA Servo Motor
- Brand
- Allen-Bradley
- Model
- MPMB1302FMJ72AA
- GEARWELL SKU
- GWP-000000729
- Category
- Servo Systems
Key specifications
- Typical application
- Industrial servo motion control
- Product type
- Medium-inertia brushless servo motor
- Product family
- MP-Series Medium-inertia
- Identification scope
- Family-level identification; exact configuration requires the complete catalog number
- Platform compatibility
- Allen-Bradley MP-Series servo motor family
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPM-B1302F-MJ72AA is a Kinetix MPM medium-inertia servo motor (MPM-B1302F) for the 400V class with a 130 mm frame and 2 magnet stacks, a base speed of 3000 rpm, a rated speed of 4000 rpm and a maximum speed of 4500 rpm. Continuous stall torque is 5.99 N·m, peak stall torque 13.5 N·m and rated output 1.65 kW. It has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, no brake and an IEC metric flange with free mounting holes (type FF).
Technical reference
| Product name | Allen-Bradley MPMB1302FMJ72AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPMB1302FMJ72AA |
| Category | Servo Systems |
| Typical application | Industrial servo motion control |
| Product type | Medium-inertia brushless servo motor |
| Product family | MP-Series Medium-inertia |
| Identification scope | Family-level identification; exact configuration requires the complete catalog number |
| Platform compatibility | Allen-Bradley MP-Series servo motor family |
