Allen-Bradley MPMB2152FMJ72AA MP-Series MPM Rotary Servo Motor
- Brand
- Allen-Bradley
- Model
- MPMB2152FMJ72AA
- GEARWELL SKU
- GWP-000002781
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

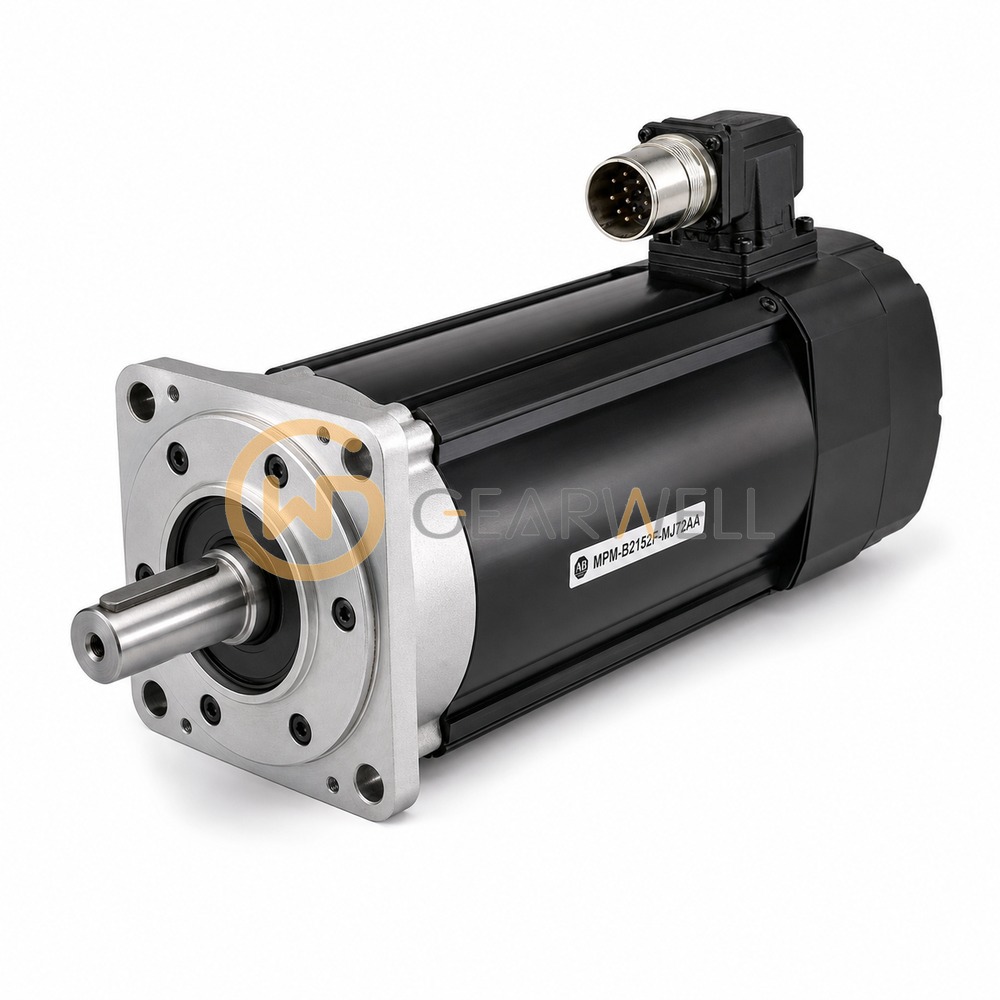

The Allen-Bradley MPM-B2152F-MJ72AA is a Kinetix MPM medium-inertia servo motor (MPM-B2152F) for the 400V class with a 215 mm frame and 2 magnet stacks, a base speed of 3000 rpm, a rated speed of 2500 rpm and a maximum speed of 4500 rpm. Continuous stall torque is 33.0 N·m, peak stall torque 72.3 N·m and rated output 5.90 kW. It has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, no brake and an IEC metric flange with free mounting holes (type FF).
Technical reference
| Product name | Allen-Bradley MPMB2152FMJ72AA MP-Series MPM Rotary Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPMB2152FMJ72AA |
| Category | Servo Systems |
