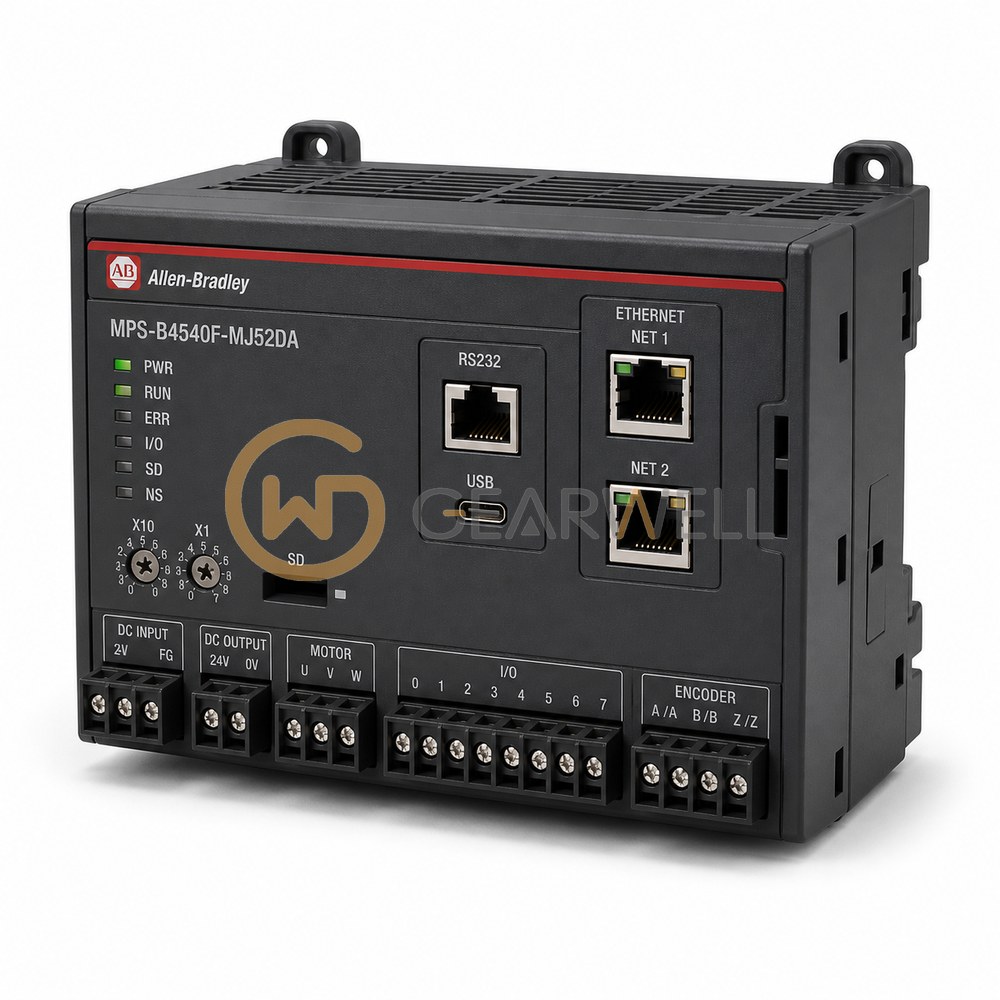

Allen-Bradley MPS-B4540F-MJ52DA PLC Module
- Brand
- Allen-Bradley
- Model
- MPS-B4540F-MJ52DA
- GEARWELL SKU
- GWP-000000716
- Category
- PLCs & I/O
Key specifications
- Type
- Servo Motor
- Connectors
- Circular DIN Connector on 3
- Brake Option
- No Brake
- Torque Rating
- 8.1
- Armature Voltage
- 460 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPS-B4540F-MJ52DA is a Kinetix MPS stainless-steel servo motor (MPS-B4540F) for the 400V class with a 130 mm frame, rated 1.4 kW at 3000 rpm. Continuous stall torque is 8.1 N·m and peak stall torque 27.1 N·m. It has an IP66/IP67/IP69K housing with shaft key and shaft seal, a 1024 sin/cos absolute multi-turn encoder (Hiperface), 3 m cables with circular SpeedTec DIN connectors, no brake and an IEC metric flange with tapped mounting holes (type FT).
Technical reference
| Product name | Allen-Bradley MPS-B4540F-MJ52DA PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | MPS-B4540F-MJ52DA |
| Category | PLCs & I/O |
| Type | Servo Motor |
| Connectors | Circular DIN Connector on 3 |
| Brake Option | No Brake |
| Torque Rating | 8.1 |
| Armature Voltage | 460 V |
| Magnet Stack Length | 40 = 101.6 mm (4.0 in.) |
