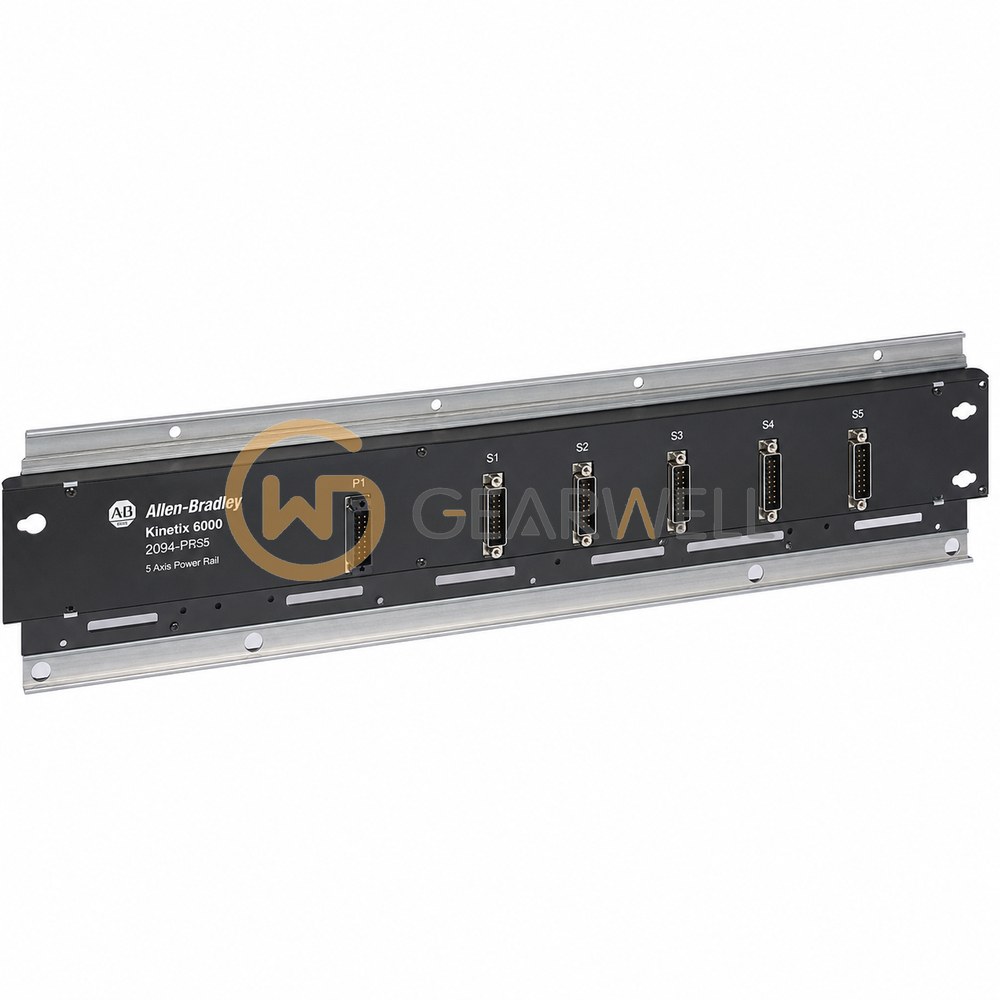

Allen-Bradley 2094-PRS5 Kinetix 5-Axis Slim Power Rail
- Brand
- Allen-Bradley
- Model
- 2094-PRS5
- GEARWELL SKU
- GWP-000000428
- Category
- Servo Systems
Key specifications
- Approximate weight
- 3.11 kg
- Product type
- Kinetix slim power rail
- Overall rail width
- 419.1 mm
- Rail module capacity
- 1 integrated axis module plus up to 4 additional modules; double-wide modules use two inverter slots
- Drive-system voltage classes
- 200 V / 400 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-PRS5 is a Bulletin 2094 power rail from Rockwell's Bulletin 2094 accessory range. It is the 5 axis Bulletin 2094 slim power rail for Kinetix 6000, Kinetix 6000M, Kinetix 6200 and Kinetix 6500 drives: one IAM module with up to 4 additional drive modules (axis, shunt or slot-filler modules). The leftmost slot is the converter slot, used only by the IAM module; the other 5 are inverter slots. It works with all 200V-class and 400V-class drive modules and weighs 3.11 kg.
Technical reference
| Product name | Allen-Bradley 2094-PRS5 Kinetix 5-Axis Slim Power Rail |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-PRS5 |
| Category | Servo Systems |
| Approximate weight | 3.11 kg |
| Product type | Kinetix slim power rail |
| Overall rail width | 419.1 mm |
| Rail module capacity | 1 integrated axis module plus up to 4 additional modules; double-wide modules use two inverter slots |
| Drive-system voltage classes | 200 V / 400 V |
| Catalog number | 2094-PRS5 |
| Manufacturer lifecycle status (2026-10-09) | Discontinued |
| Product description | Five-axis slim power rail; module capacity depends on widths and accessory positions, not a standalone servo drive |
| Compatible drive systems | Kinetix 6000, 6000M, 6200 and 6500; observe system-specific module compatibility |
