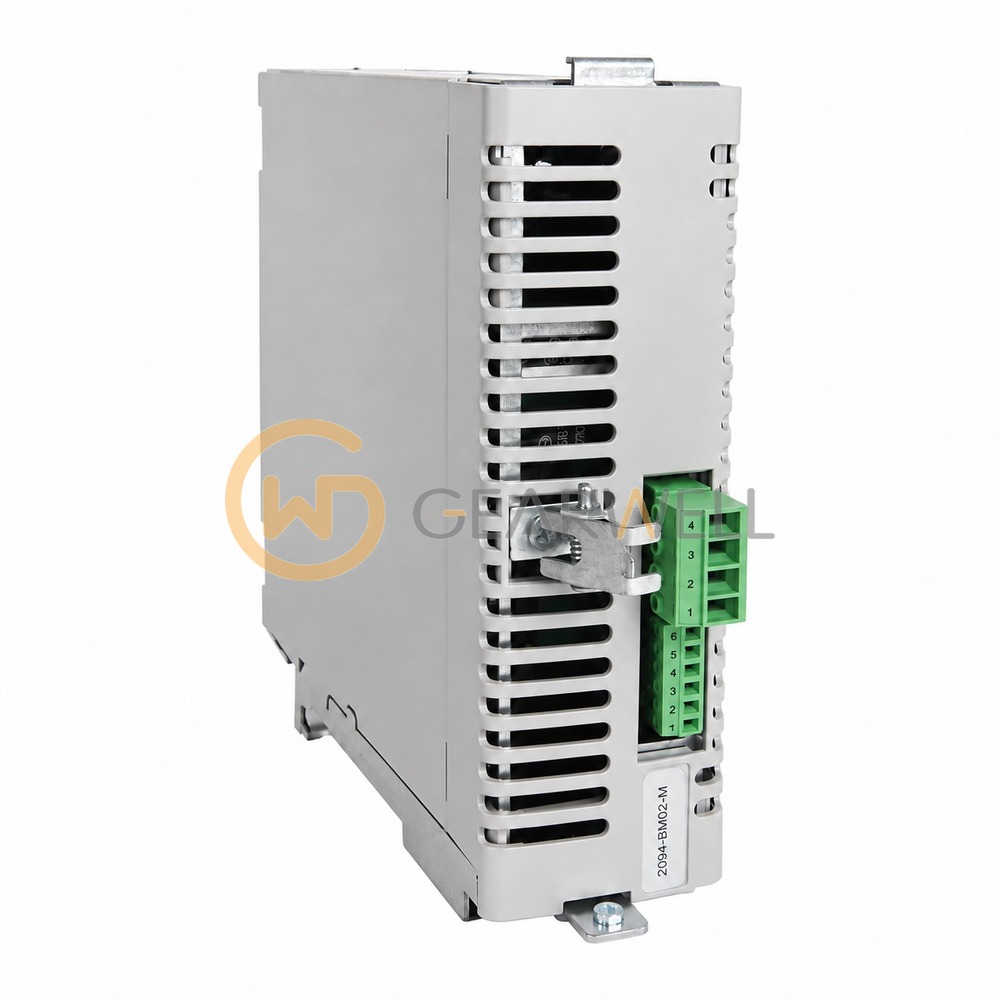

Allen-Bradley 2094-BM02-M Kinetix 6200/6500 Axis Power Module
- Brand
- Allen-Bradley
- Model
- 2094-BM02-M
- GEARWELL SKU
- GWP-000003532
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BM02-M is a Kinetix 6200 / 6500 axis module from Rockwell's Kinetix servo drive family. It is a 400V-class inverter that runs from the 650V DC bus of the power rail, rated 10.3 A rms continuous and 25.8 A rms peak output current, with 6.6 kW nominal continuous power out. Kinetix 6200 (Sercos interface) and Kinetix 6500 (Integrated Motion on EtherNet/IP) are modular drives whose control module sets the network and safety function, from Safe Torque Off to Safe Speed Monitor. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BM02-M Kinetix 6200/6500 Axis Power Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BM02-M |
| Category | Servo Systems |
