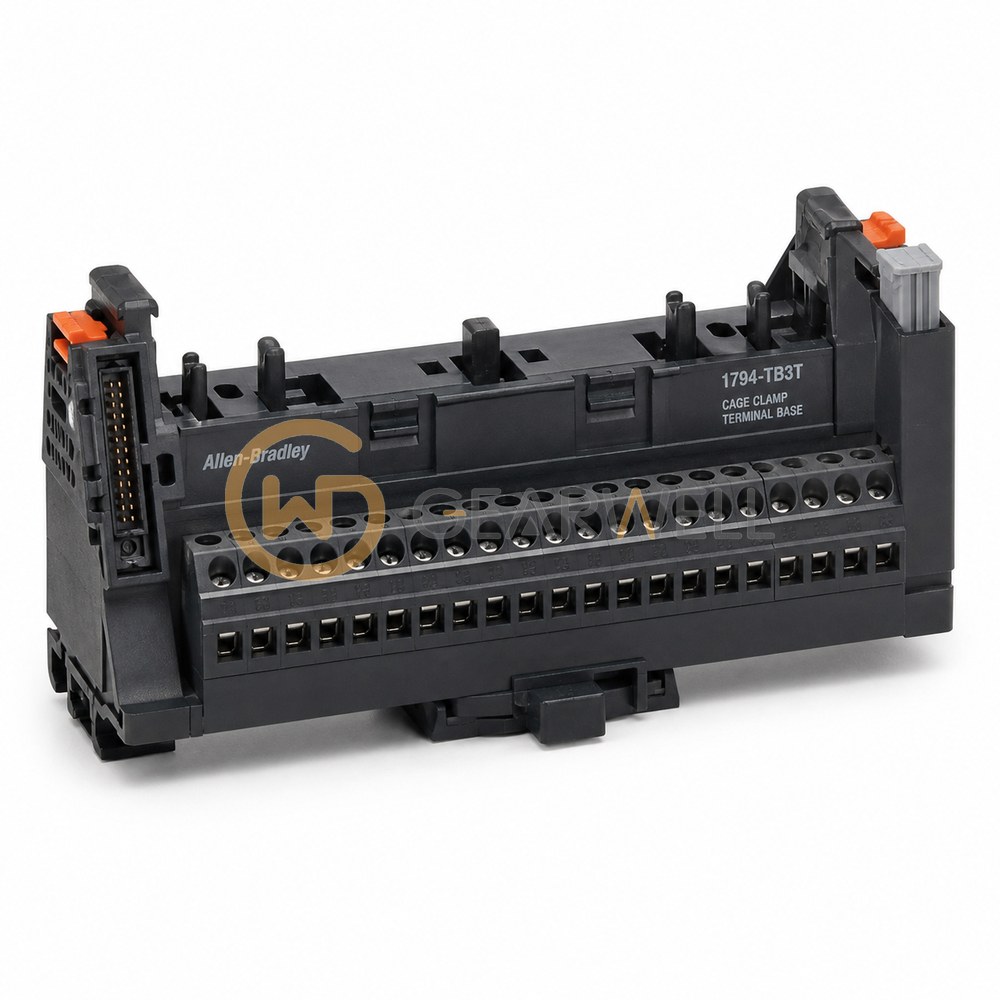

Allen-Bradley 1794-TB3T FLEX I/O Temperature Terminal Base
- Brand
- Allen-Bradley
- Model
- 1794TB3T
- GEARWELL SKU
- GWP-000000168
- Category
- PLCs & I/O
Key specifications
- Product type
- FLEX I/O terminal base
- Maximum V/COM terminal current
- 10 A
- Catalog number
- 1794-TB3T
- Lifecycle status
- Active Mature
- Termination type
- Cage clamp, temperature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-TB3T is a FLEX I/O cage clamp temperature terminal base with 16 I/O, 10 common, 4 +V and 8 chassis ground terminals and 2 sets of CJC for temperature modules, used with the 1794-IT8 or 1794-IRT8 in thermocouple mode and also providing chassis ground connections for the 1794-IR8 and analog modules. It is rated for -20…+70 °C (-4…+158 °F).
Technical reference
| Product name | Allen-Bradley 1794-TB3T FLEX I/O Temperature Terminal Base |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794TB3T |
| Category | PLCs & I/O |
| Product type | FLEX I/O terminal base |
| Maximum V/COM terminal current | 10 A |
| Catalog number | 1794-TB3T |
| Lifecycle status | Active Mature |
| Termination type | Cage clamp, temperature |
| Operating temperature | -20 to +70 °C |
| Product description | Allen-Bradley 1794-TB3T is a three-wire, cage-clamp FLEX I/O terminal base for temperature modules. |
| Dimensions with I/O module installed (H × W × D) | 94 × 94 × 69 mm |
| Terminal connections | 16 I/O; 10 common; 4 +V; 8 chassis ground; 2 sets of CJC terminals |
