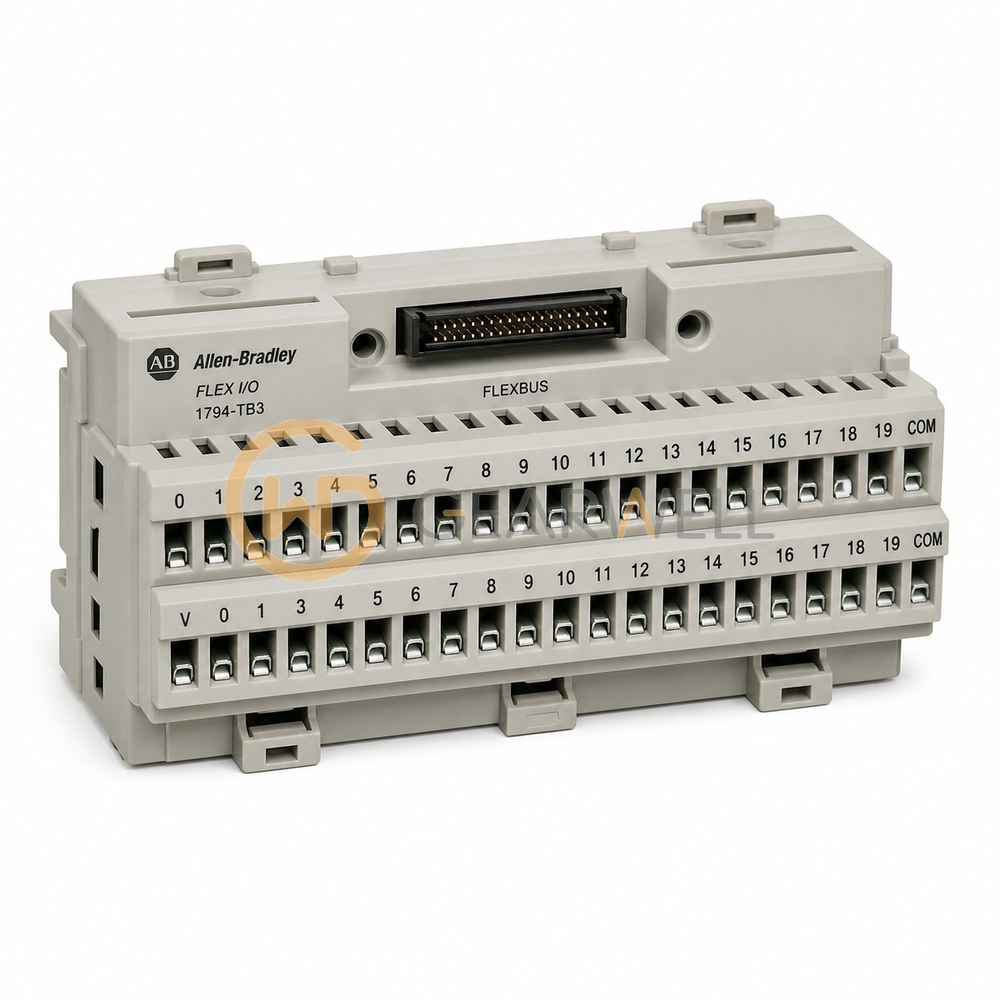

Allen-Bradley 1794-TB3 FLEX I/O 3-Wire Terminal Base
- Brand
- Allen-Bradley
- Model
- 1794TB3
- GEARWELL SKU
- GWP-000000635
- Category
- PLCs & I/O
Key specifications
- Product type
- FLEX I/O terminal base
- Maximum V/COM terminal current
- 10 A
- Lifecycle status
- Active Mature
- Termination type
- Cage clamp
- Operating temperature
- -20 to +70 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-TB3 is a FLEX I/O cage clamp terminal base with 16 I/O, 18 common and 18 +V terminals for up to 132V AC/156V DC and 10 A maximum, intended mainly for input modules with 3-wire proximity switches and also usable with output modules.
Technical reference
| Product name | Allen-Bradley 1794-TB3 FLEX I/O 3-Wire Terminal Base |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794TB3 |
| Category | PLCs & I/O |
| Product type | FLEX I/O terminal base |
| Maximum V/COM terminal current | 10 A |
| Lifecycle status | Active Mature |
| Termination type | Cage clamp |
| Operating temperature | -20 to +70 °C |
| Product description | Allen-Bradley 1794-TB3 is a three-wire FLEX I/O terminal base with cage-clamp terminals. |
| Dimensions with I/O module installed (H × W × D) | 94 × 94 × 69 mm |
| Terminal connections | 16 I/O; 18 common; 18 +V |
