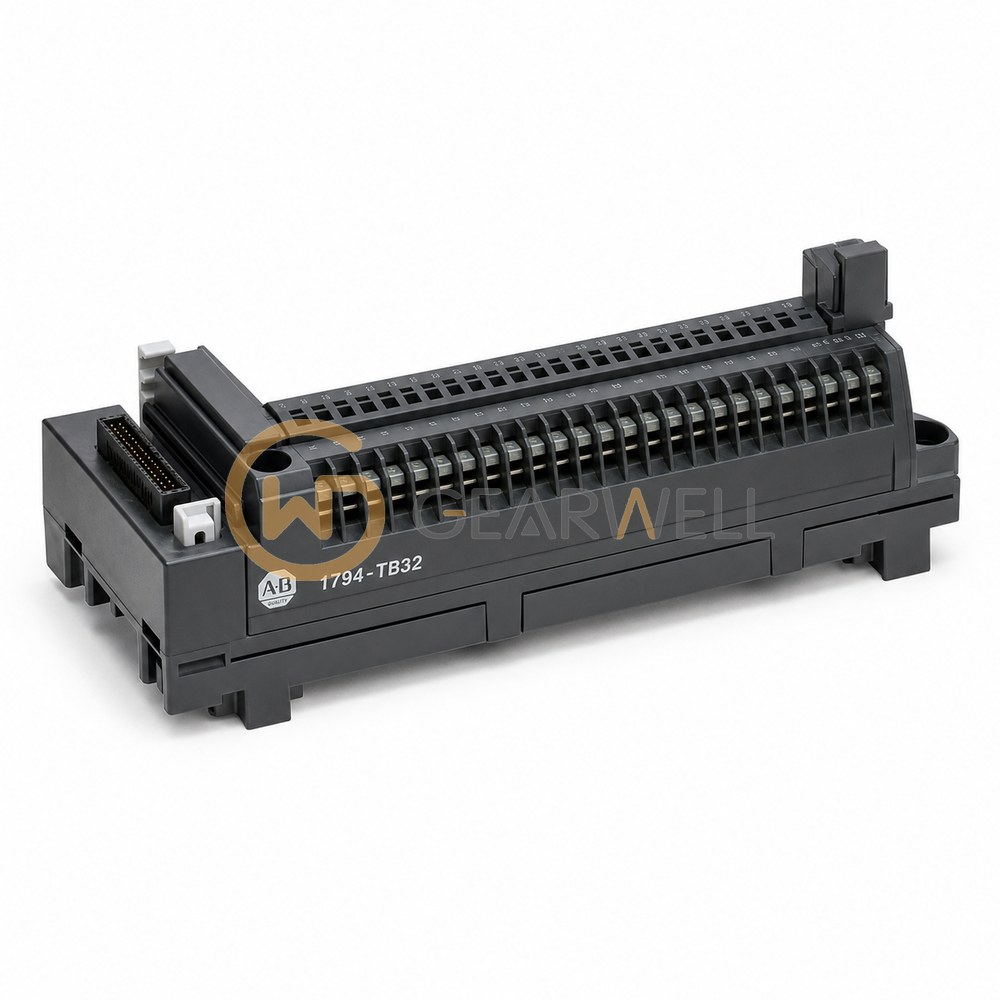

Allen-Bradley 1794-TB32 FLEX I/O 32-Point Terminal Base
- Brand
- Allen-Bradley
- Model
- 1794TB32
- GEARWELL SKU
- GWP-000000108
- Category
- PLCs & I/O
Key specifications
- Product type
- FLEX I/O terminal base
- Maximum V/COM terminal current
- 10 A
- Lifecycle status
- Active Mature
- Termination type
- Cage clamp
- Operating temperature
- -20 to +70 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-TB32 is a 32-point FLEX I/O cage clamp terminal base with 32 I/O, 8 common and 8 +V terminals for up to 31.2V DC, used with 32-point digital modules and the 1794-IB16D, and rated for -20…+70 °C (-4…+158 °F).
Technical reference
| Product name | Allen-Bradley 1794-TB32 FLEX I/O 32-Point Terminal Base |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794TB32 |
| Category | PLCs & I/O |
| Product type | FLEX I/O terminal base |
| Maximum V/COM terminal current | 10 A |
| Lifecycle status | Active Mature |
| Termination type | Cage clamp |
| Operating temperature | -20 to +70 °C |
| Product description | Allen-Bradley 1794-TB32 is a 32-point FLEX I/O terminal base with cage-clamp wiring. |
| Dimensions with I/O module installed (H × W × D) | 94 × 94 × 69 mm |
| Terminal connections | 32 I/O; 8 common; 8 +V |
