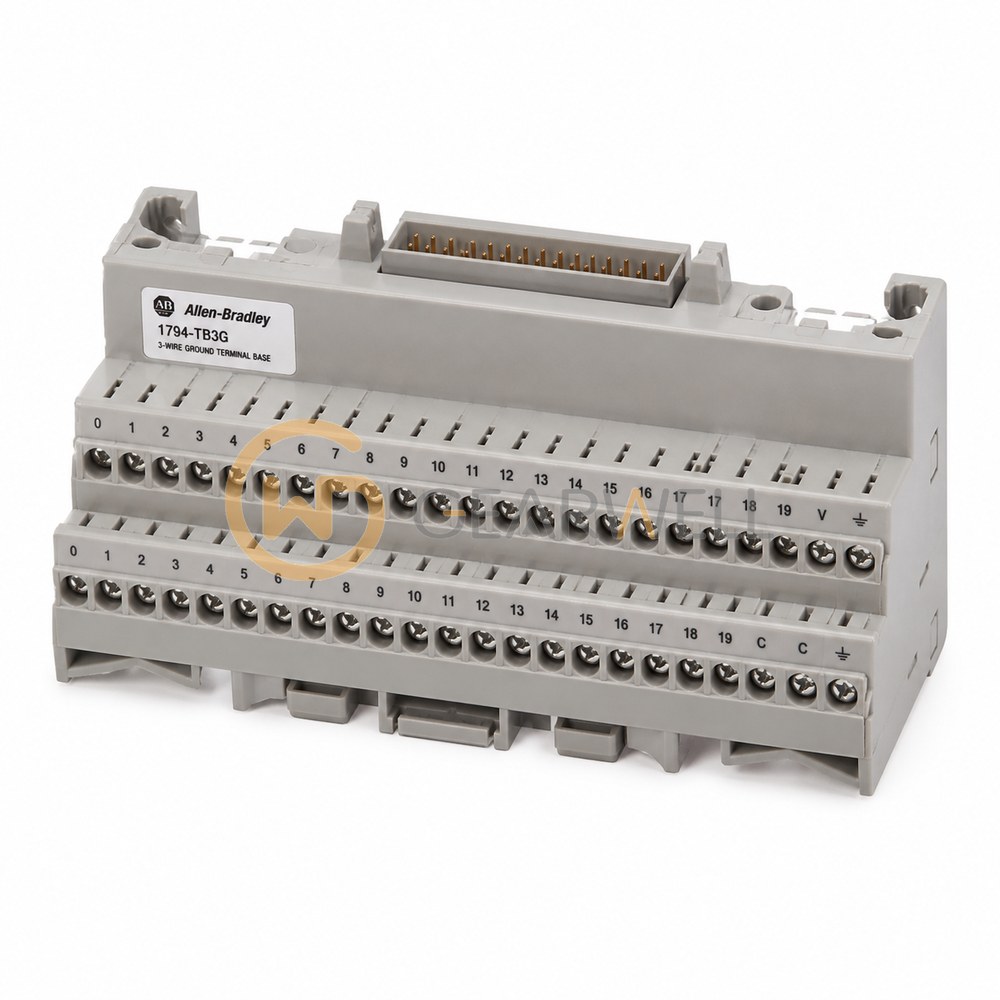

Allen-Bradley 1794-TB3G FLEX I/O Grounded Terminal Base
- Brand
- Allen-Bradley
- Model
- 1794TB3G
- GEARWELL SKU
- GWP-000002364
- Category
- PLCs & I/O
Key specifications
- Product type
- FLEX I/O terminal base
- Maximum V/COM terminal current
- 10 A
- Lifecycle status
- Active Mature
- Termination type
- Grounded screw clamp
- Operating temperature
- -20 to +70 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-TB3G is a FLEX I/O screw clamp terminal base with individual grounding (10 chassis ground terminals) for certain analog modules, for up to 31.2V DC.
Technical reference
| Product name | Allen-Bradley 1794-TB3G FLEX I/O Grounded Terminal Base |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794TB3G |
| Category | PLCs & I/O |
| Product type | FLEX I/O terminal base |
| Maximum V/COM terminal current | 10 A |
| Lifecycle status | Active Mature |
| Termination type | Grounded screw clamp |
| Operating temperature | -20 to +70 °C |
| Product description | Allen-Bradley 1794-TB3G is a grounded, screw-clamp FLEX I/O terminal base for applicable analog modules. |
| Dimensions with I/O module installed (H × W × D) | 94 × 94 × 69 mm |
| Terminal connections | 36 I/O; 2 common; 2 +V; 10 chassis ground |
